Your Sewing Machine

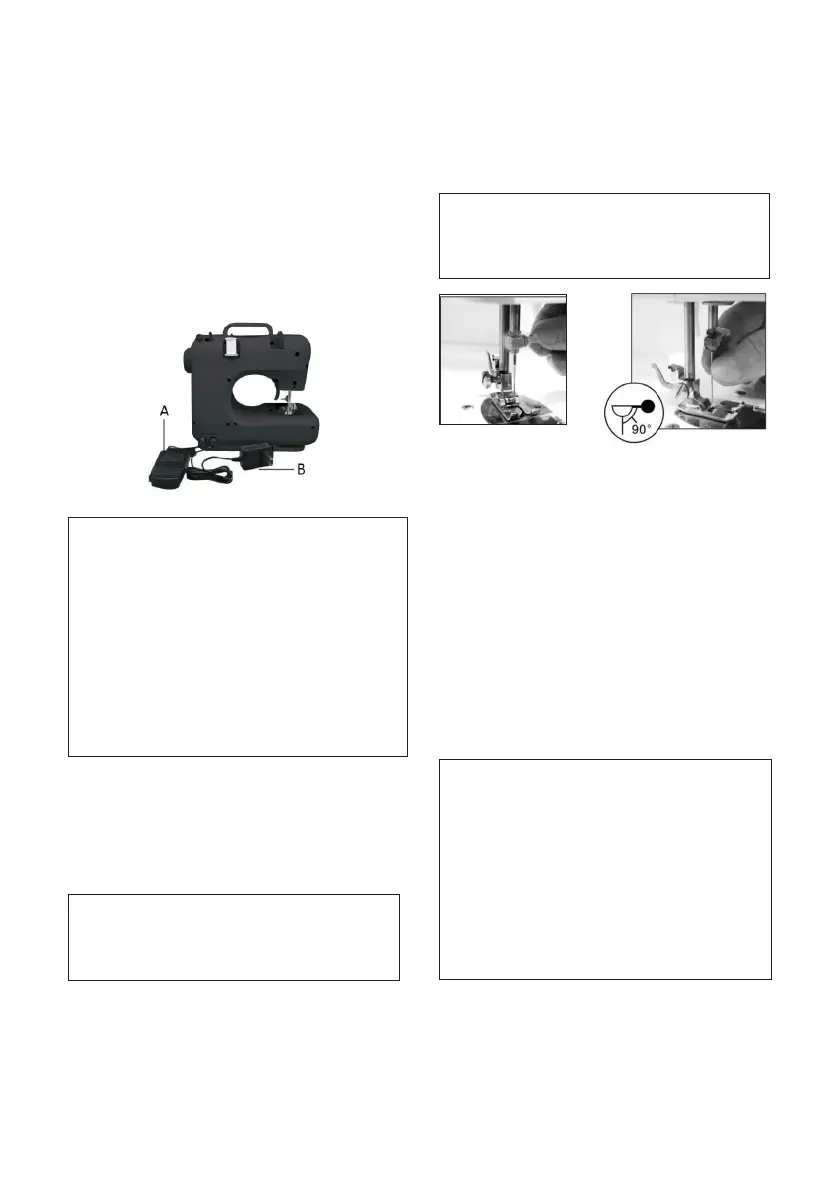

USING THE FOOT PEDAL (A) AND
ADAPTOR (B)
1. Connectthefootpedalbyinsertingthe
jack into the foot pedal input socket. Then
you can use the foot pedal to turn on the
machine instead of using the hand switch
(Power&speedswitch).
2. Connecttheadaptor’sjacktotheDCinput
socketonthebackofthemachine,and
connect the plug to the main power supply.
Caution:
• Make sure the foot pedal is unplugged
from the machine when you are not
using it, so the sewing machine won’t
accidentally start up.
• The foot pedal cannot be used
together with the power & speed
switch.
Make sure the switch is placed at the
position “OFF”.
• There is no speed selection when using
foot pedal to control the machine.
NEEDLE REPLACEMENT
Iftheneedlebreaks,oryouneedadifferent
needletosewadifferentkindoffabric,just
follow these steps:
Caution: To prevent injury from
accidentally starting up the machine,
make sure to turn off the switch, remove
the foot pedal and the adaptor plug rst.
1. Turn the hand wheel to raise the needle to
its highest position. Hold the old needle and
loosen the needle clamp screw. Remove the
old needle and discard it properly. (Fig.1)
2. Insert the new needle into the clamp with the
atsidetowardthecorrectdirection(tothe
back).Besuretopushtheneedlecompletely
intotheclampbeforetighteningtheneedle
clamp screw.
3. Tighten the needle clamp screw.
Caution: Needle direction must be
correct, and be sure to tighten the
thimble screw, to avoid needle falling
by accident.
Fig.1 Fig.2
PRESSER FOOT REPLACEMENT
1. Removing the presser foot
Turn the hand wheel counterclockwise to
raise the needle to its highest position. Raise
the presser foot lifter, and press the presser
foot locking lever. The presser foot will drop
off automatically from the locking device.
(Fig.3; Fig.4)
2. Installing the presser foot
 Putthepresserfootunderthepresserfoot
locking device, lower the presser foot lifter,
press the presser foot locking device to reset
the foot, and lift the presser foot lifter. (Fig.5;
Fig.6)
Caution:
• Always switch off the appliance,
disconnect it from the power supply
and remove the foot pedal when
replacing the presser foot.
• When replacing the presser foot,
please place the machine on a
stable platform.
• When putting down the presser foot,
please do not put your hand or nger
under it to avoid injuring ngers.
