2. DEFINITION & LOCATION OF CONNECTORS/SWITCHES

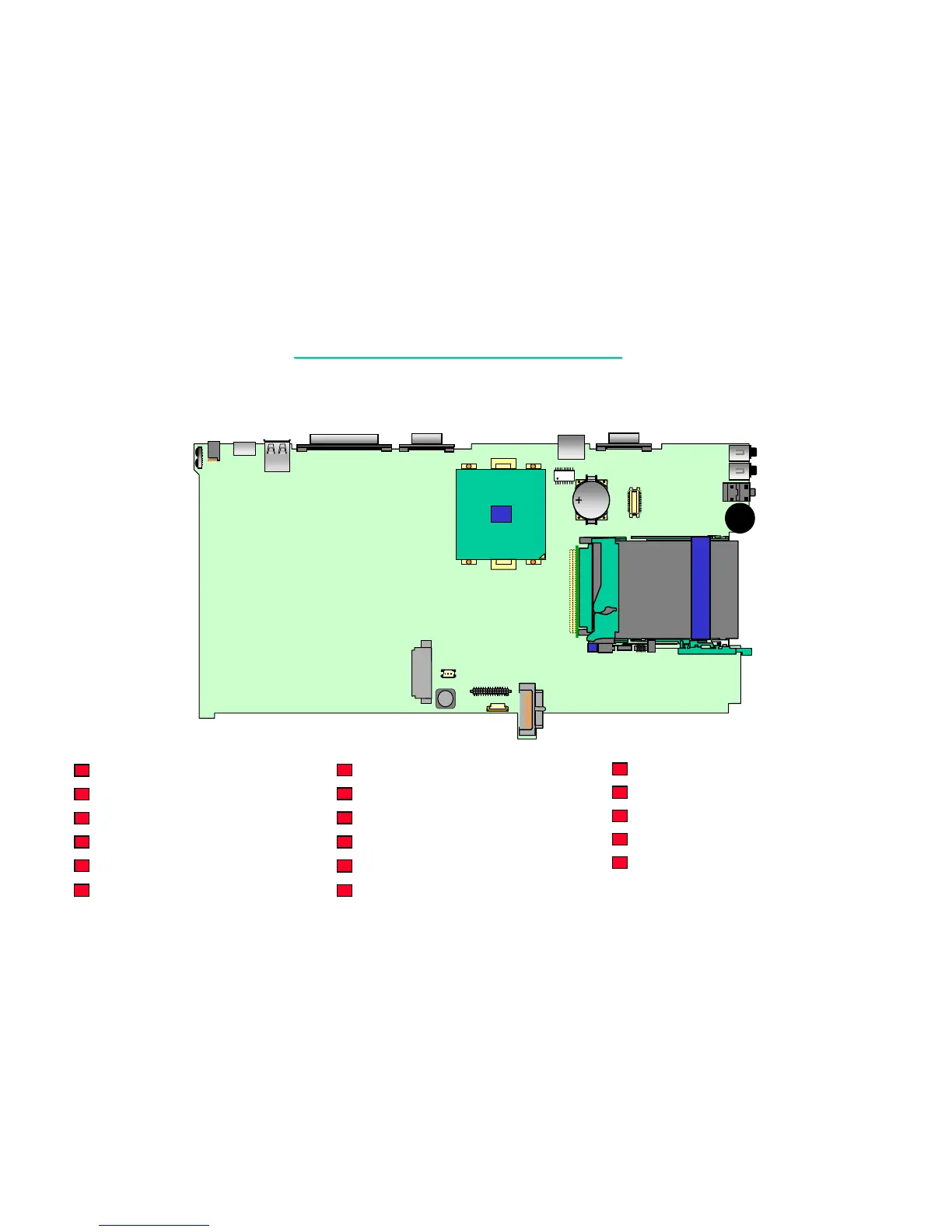

2.2 Mother Board-B
PJ501: Power jack ( AC adapter).
J502 :PS2 Mouse/keyboard
J503:Line in Jack.
J504: LAN connect
J505:Parallel Port
J507: VGA Connector.
J513: CD-ROM drive connector.
J514:Charger & Touch-Pad connector
J515:Touch-Pad button connector.
BT501: CMOS Battery connector.
VR501: Volume control VR.
U501
PJ501
J502
J508
J505 J507
J504
J506
J503
J509
J510
VR501
U507
J516
J513
J512
J514
J515
BT501
J511
U502
U503
J508: USB connector.
U507: PC card socket.
U503:CPU & CPU Socket.
J511: MODEM transfer board connector
J512: FAN Connector.
J516 :HDD/FDD Connector.
