2. DEFINITION & LOCATION OF CONNECTORS/SWITCHES

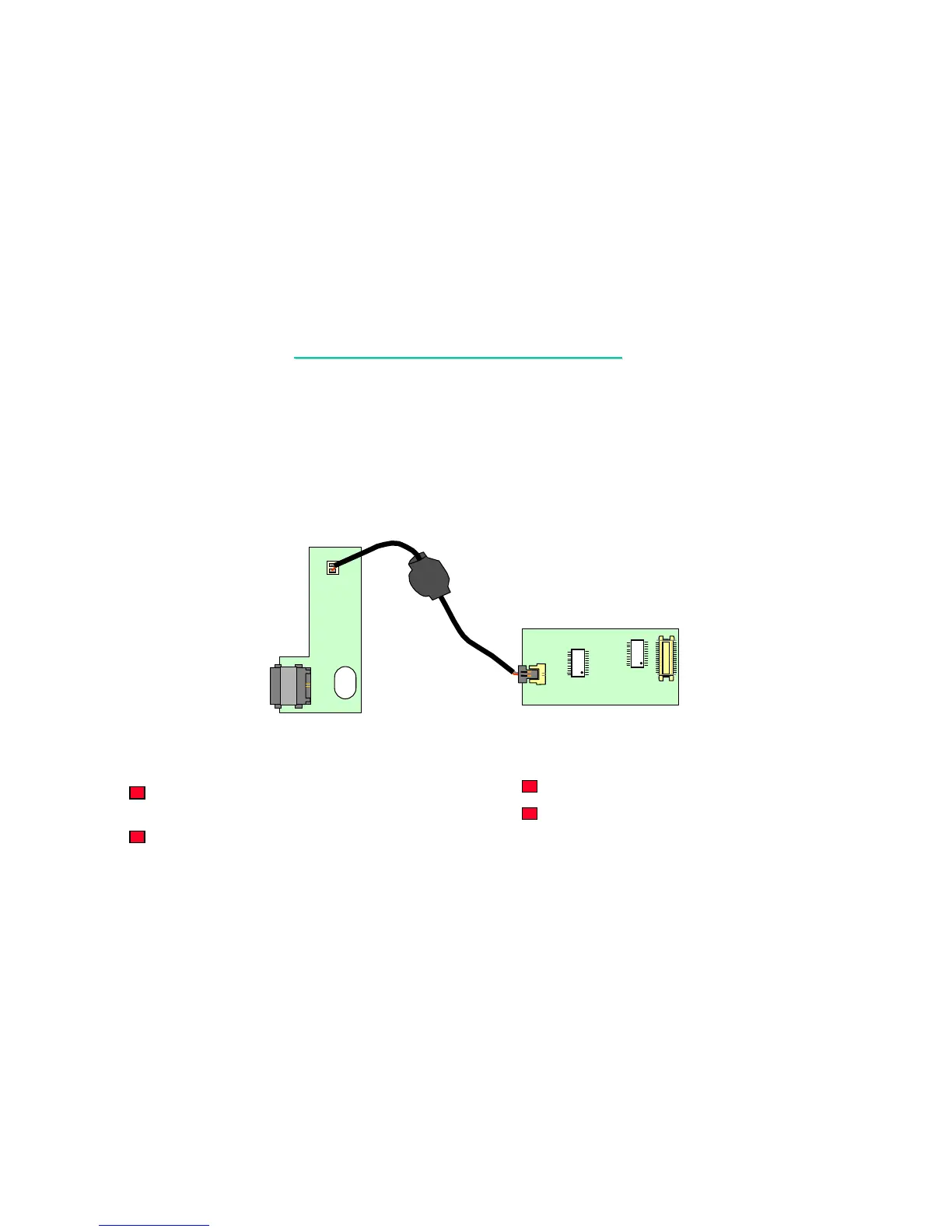

MDC/LAN transfer board
JP1: MDC jump wire connector.
JP3: Connector 2 for connected
MDC/LAN transfer board
to M/B.
J1: RJ-11 phone jack for internal
modem.
J23: MDC jump wire connector.
2.3 Daughter Board
J1
J23
JP1
U2
U1
JP3
