MiTAC Maestro 830 - Internal Speaker

Interna l speaker

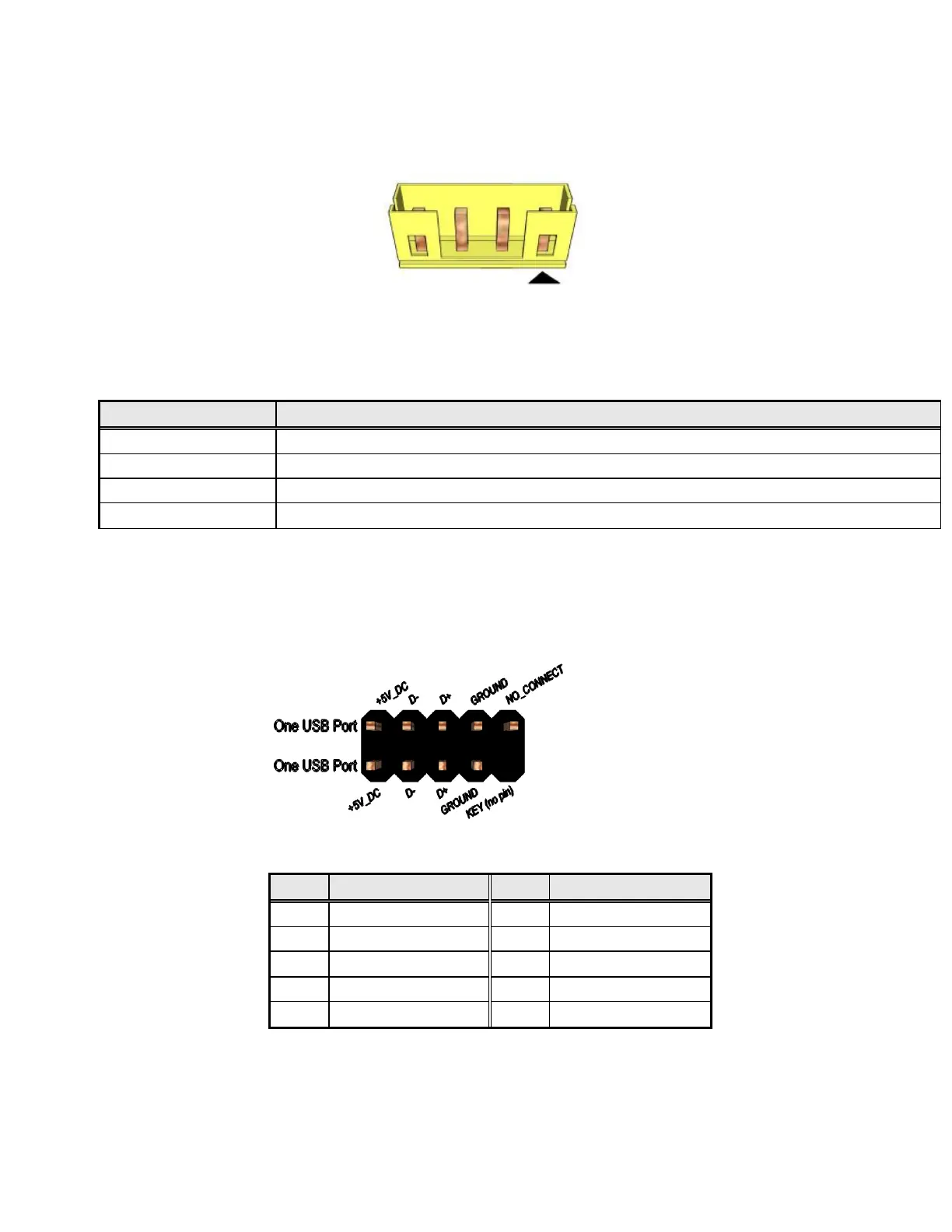

F i gu re 3 I n te rn a l s pe a k e r
Pin
Signal Name
1
Front_L-
2
Front_L+
3
Front_R+
4
Front_R-
T A B L E 3 I N T E R N A L H E A D E R S I G N A L S
TP & Card reader USB
F i gu re 4 TP & C a rd r e a de r U S B pi n -o u t
Pin
Signal
Pin
Signal
1
5V_USB
2
5V_USB
3
Data (negative)
4
Data (negative)
5
Data (positive)
6
Data (positive)
7
Ground
8
Ground
9
Key (no pin)
10
No Connect
T A B L E 4 TP & C A R D R E A D E R U S B S I G N A L S
