NFC/RFID header pin-out

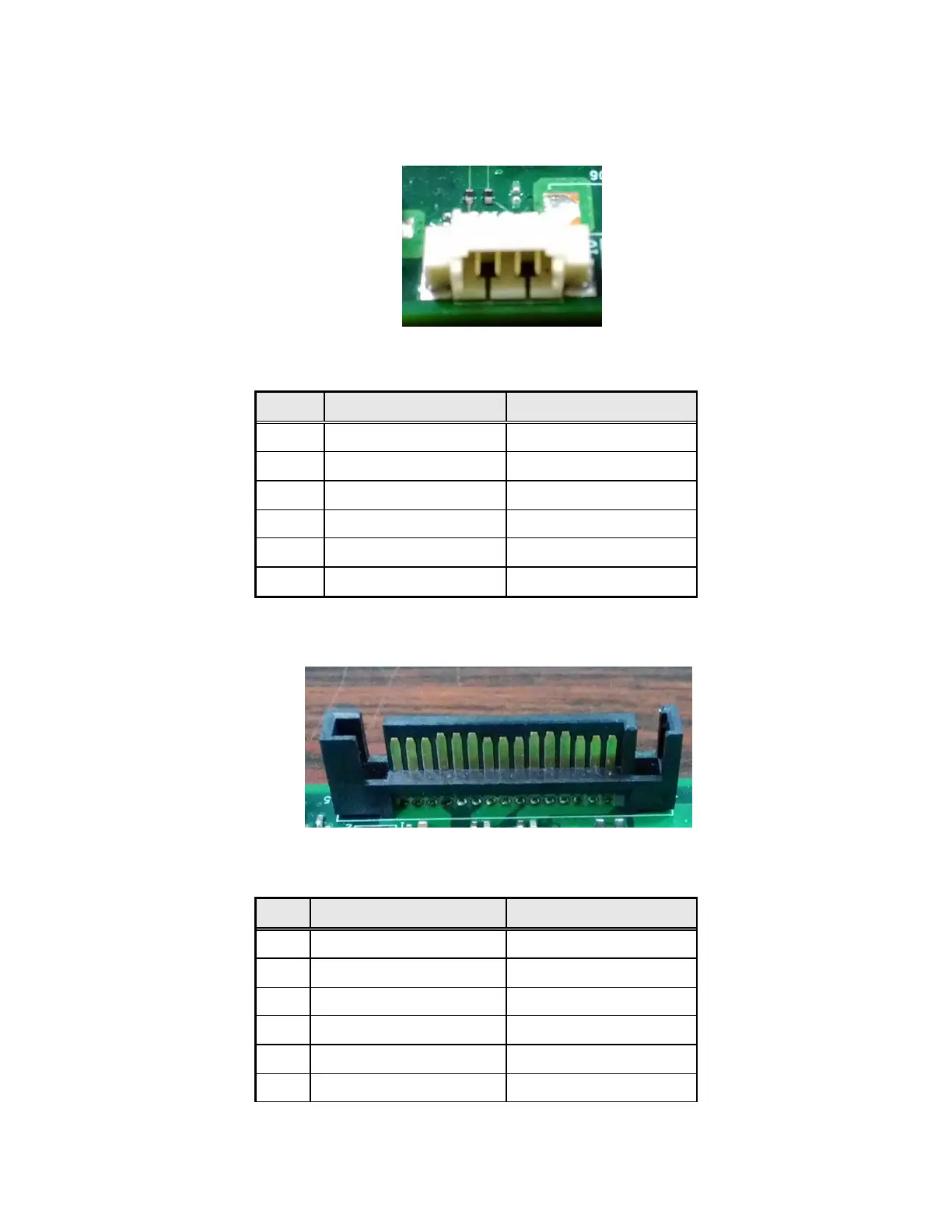

F i gu re 16 NFC/R FI D header pin-ou t
Pin
Signal Name
Description
1
Ground
Ground
2
VCC
Power
3
UART0_TXD
UART Transmit
4
UART0_RXD
UART Receive
GND1
Ground
Ground
GND2
Ground
Ground
T A B L E 16 N F C / R F I D S I G N A L S
SATA Power
F i gu re 17 SATA Power Cable pin-out
Pin
Signal Name
Description
1
VCC3
Power
2
VCC3
Power
3
VCC3
Power
4
GND
Ground
5
GND
Ground
6
GND
Ground
