MiTAC Maestro 830 - Page 22

22
7
VCC
Power
8
VCC
Power
9
VCC
Power
10
GND
Ground
11
RES
NC
12
GND
Ground
13
+12V
Power
14
+12V
Power
15
+12V
Power
T A B L E 17 S AT A P O W E R C A B L E S I G N A L S
SATA ODD

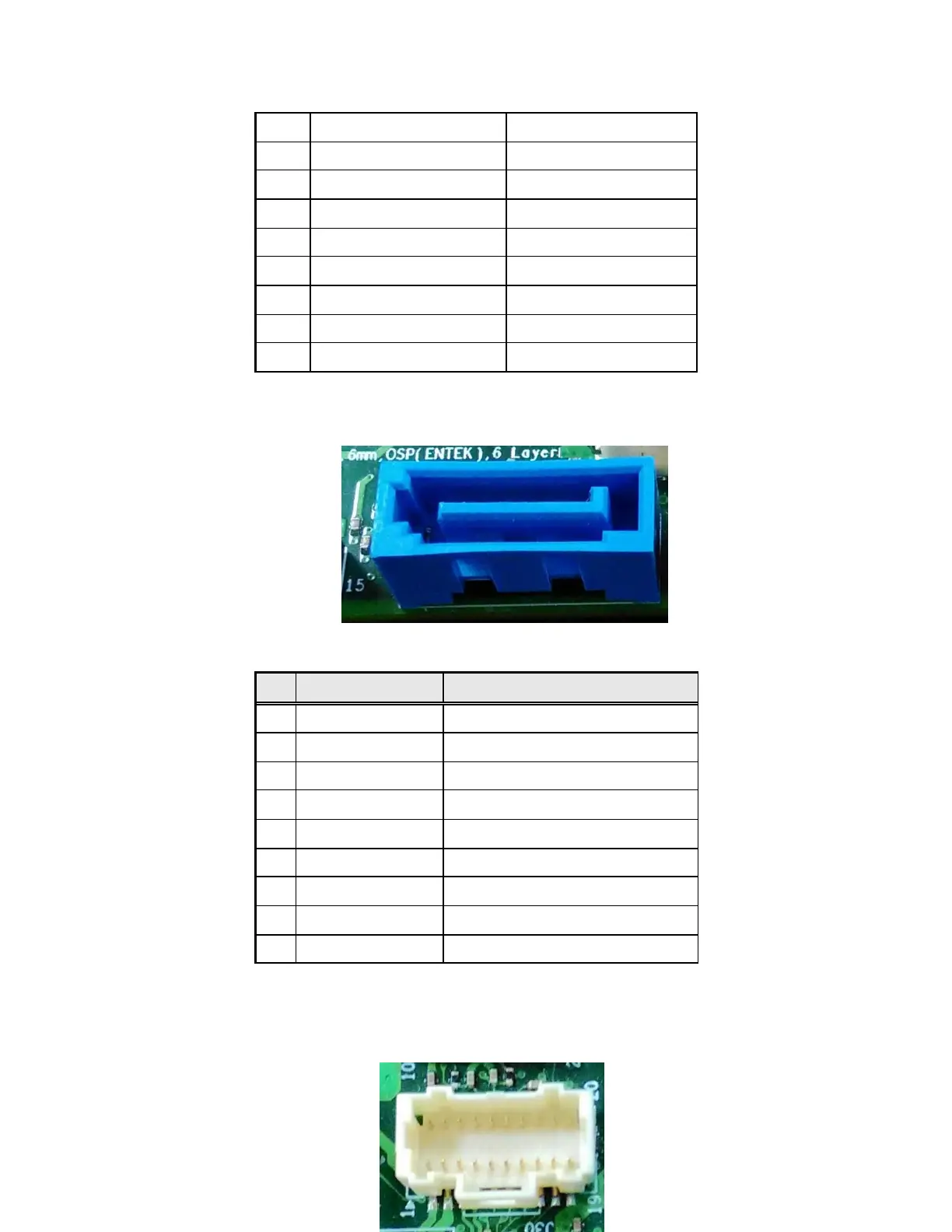

F i gu re 18 ODD Cable pin-out
Pin
Signal Name
Description
1
GND
Ground
2
SATAHDR_TXP0_C
SATA DATA Transmit(positive)
3
SATAHDR_TXN0_C
SATA DATA Transmit(negative)
4
GND
Ground
5
SATAHDR_RXN0_C
SATA DATA Receive(negative)
6
SATAHDR_RXP0_C
SATA DATA Receive(positive)
7
GND
Ground
8
G1
NC
9
G2
NC
T A B L E 18 O D D C A B L E S I G N A L S
Front SW/LEDs
