MiTAC Maestro 830 - Minipc Ie Slot

MiniPCIe slot

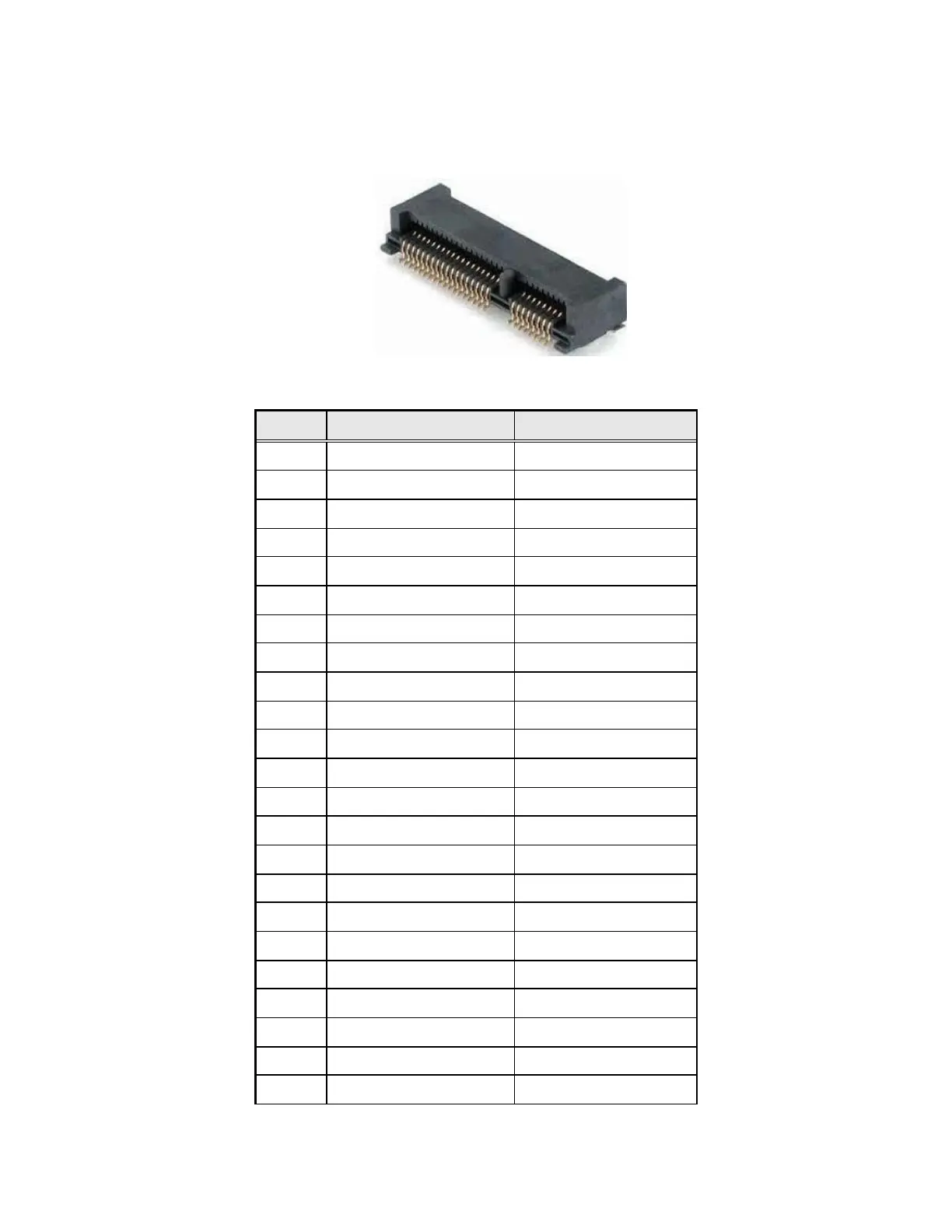

F i gu re 15 MiniPCI e slot For SSD/TV card pin-out
Pin
Signal Name
Description
1
NC
NC
2
3VSB
Power
3
NC
NC
4
Ground
Ground
5
NC
NC
6
V_1P5
Power
7
CLKREQ_TV-
CLKREQ
8
NC
NC
9
Ground
Ground
10
NC
NC
11
PCH_100M_TVBD-
CLOCK(negative)
12
NC
NC
13
PCH_100M_TVBD
CLOCK(positive)
14
NC
NC
15
Ground
Ground
16
NC
NC
17
NC
NC
18
Ground
Ground
19
NC
NC
20
NC
NC
21
Ground
Ground
22
PCIE_RST-
Reset
23
PCIe_TVBD_RX-_R
Receive(negative)
