MiTAC Maestro 830 - Page 24

24

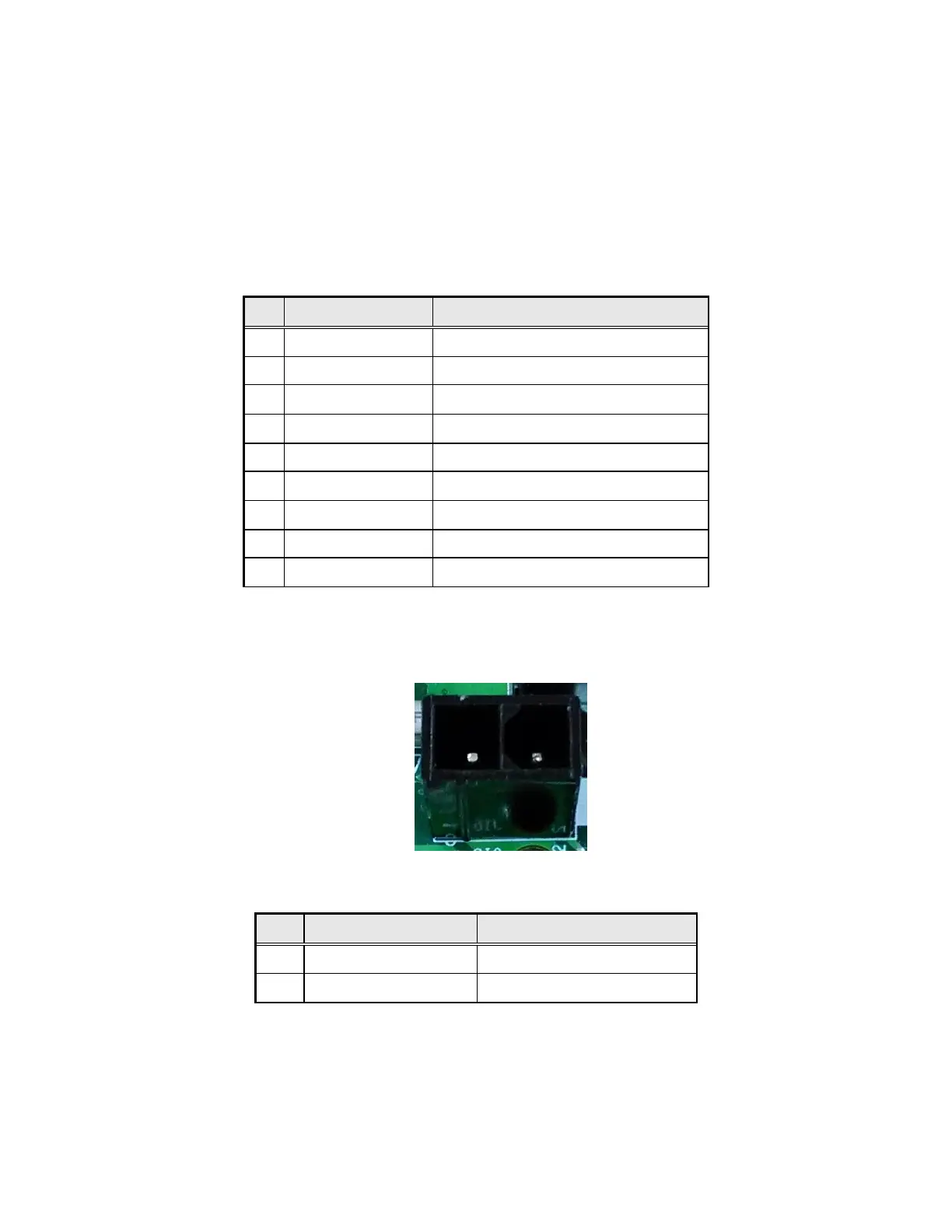

F i gu re 20 H D D C a b l e pi n -ou t
Pin
Signal Name
Description
1
GND
Ground
2
SATAHDR_TXP1_C
SATA DATA Transmit(positive)
3
SATAHDR_TXN1_C
SATA DATA Transmit(negative)
4
GND
Ground
5
SATAHDR_RXN1_C
SATA DATA Receive(negative)
6
SATAHDR_RXP1_C
SATA DATA Receive(positive)
7
GND
Ground
8
G1
NC
9
G2
NC
T A B L E 20 H D D C A B L E S I G N A L S
Wireless Charger Header
F i gu re 21 W i re l e s s C h a rgi n g M odu l e pi n - ou t
Pin
Signal Name
Description
1
GND
Ground
2
+19V_charge
Charge Power
T A B L E 20 W IRELESS C HAR GI N G M ODULE SIGNAL S
