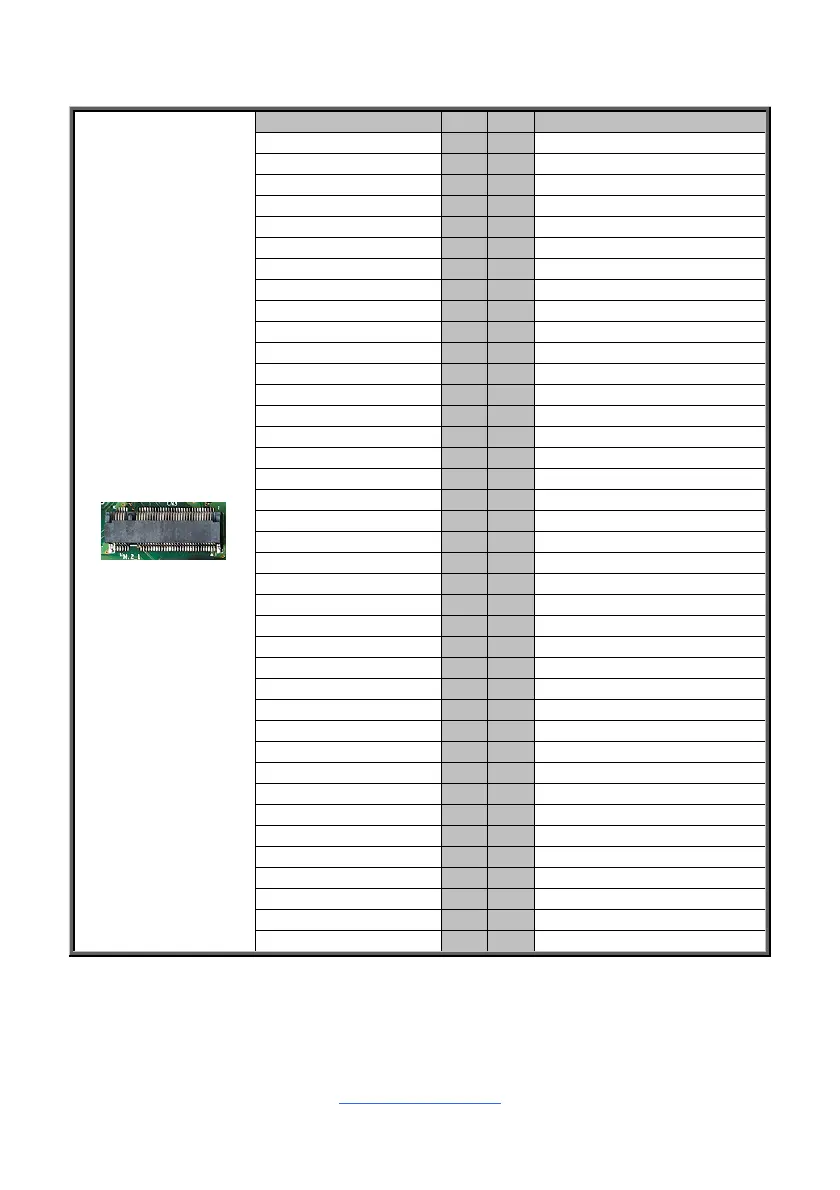

CN1 / CN3: M.2 Slot
Signal Pin Pin Signal
GND 1 2 VCC3
GND 3 4 VCC3
RXN3 5 6 N/C
RXP3 7 8 N/C
GND 9 0 LED1
TXN3 11 12 VCC3
TXP3 13 14 VCC3
GND 15 16 VCC3
RXN2 17 18 VCC3
RXP2 19 20 N/C
GND 21 22 N/C
TXN2 23 24 N/C
TXP2 25 26 N/C
GND 27 28 N/C
RXN1 29 30 N/C
RXP1 31 32 N/C
GND 33 34 N/C
TXN1 35 36 N/C
TXP1 37 38 DEVSLP
GND 39 40 I2C_M2_SCL
RXN0/SATA-B+ 41 42 I2C_M2_SDA
RXP0/SATA-B- 43 44 N/C
GND 45 46 N/C
TXN0/SATA-A- 47 48 N/C
TXP0/SATA-A+ 49 50
N/C
GND 51 52
N/C
CLK_N 53 54
N/C
CLK_P 55 56 N/C
GND 57 58 N/C
N/C 67 68 NC
SET PCIE/SATA 69 70 VCC3
GND 71 72 VCC3
GND 73 74 VCC3
GND 75
