OUTPUT WAVEFORM AND CHARACTERISTICS
(VAPR 3 ONLY)
Waveform The RF output is a variable amplitude sinusoid
waveform varying between approximately
340kHz and 450kHz, corresponding to minimum
and maximum load impedance respectively.
Crest Factor V1, V2, V3, BV1, BV2 and Desiccate
A nominal crest factor of 1.4 for all outputs.
Power Maximum power 260 watts into 160 ohms.
Max Voltage:
V1 254V RMS
V2 307V RMS
V3 340V RMS
BV1 307V RMS
BV2 340V RMS
Desiccate 120V RMS
VAPR TC Desiccate 100V RMS
NOTE

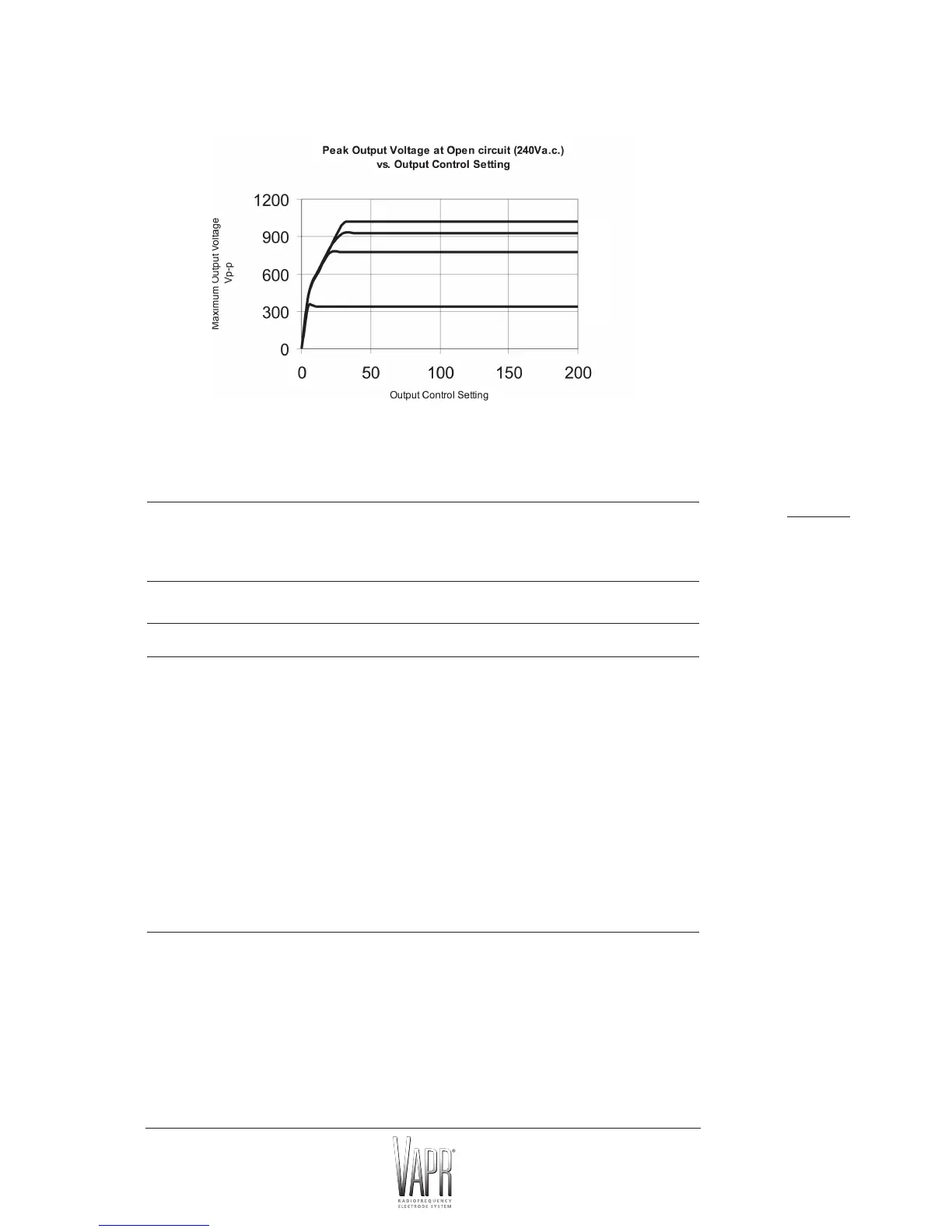

The following load curves apply to the fundamental power delivery capability of the generator
alone. They do not imply a given power output for any given electrode and cable configuration
when used with the generator. Each accessory will self-impose an upper set power limit for the
generator, the value of which will be equal to or below the maxium power delivery capability of
the generator.
