Place the panel on the floor up against the wall in the final position it will be
mounted in. Install the L bracket by aligning the holes with the groves on the
bracket and installing the 4 allen cap head screws. Slide the bracket towards the
wall untll it sits flush, then tighten down with the provided allen wrench.
Secure to wall using appropriate screws (ie drywall screws, etc) or if going into
brick or concrete use the provided anchors. Screws or anchors will be installed in

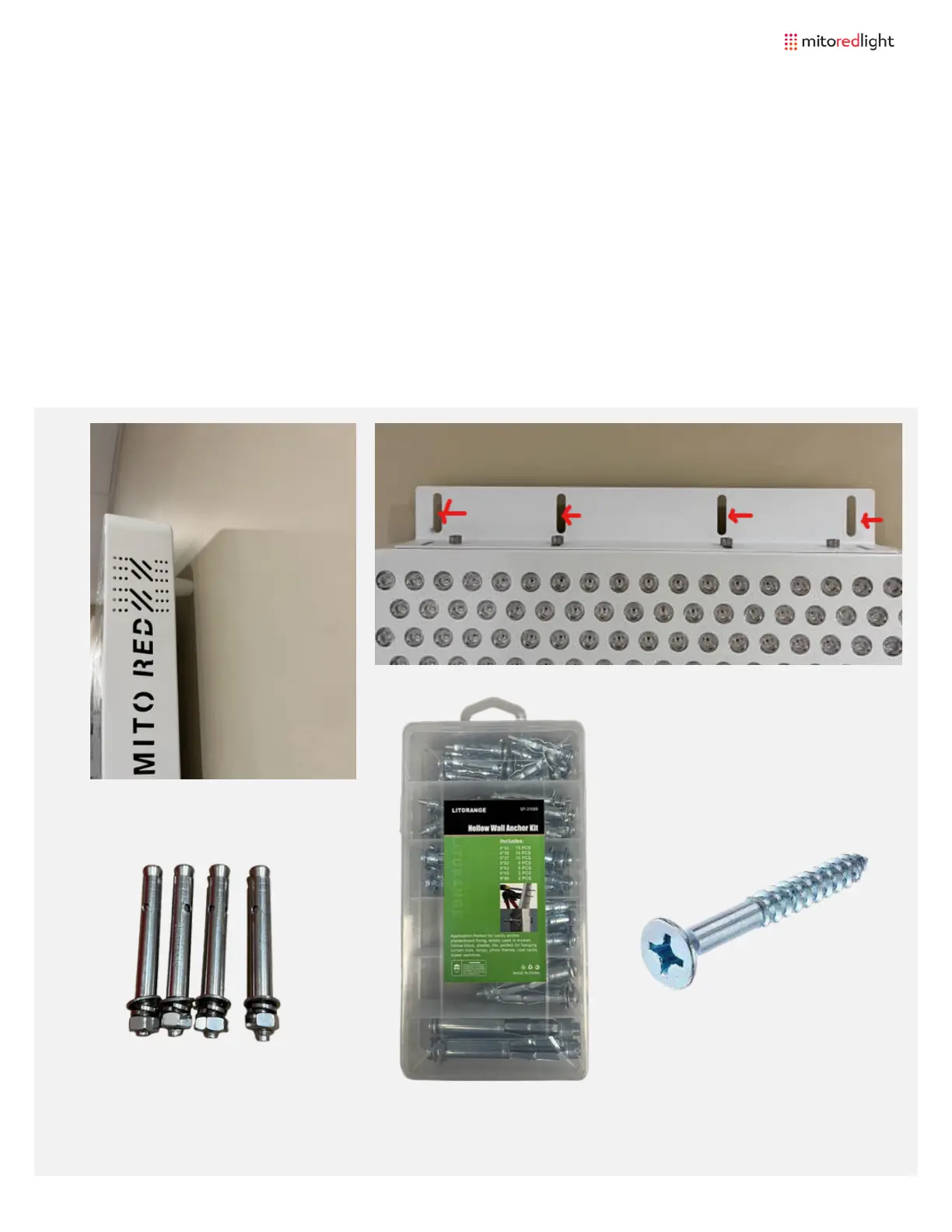

the remaining 4 grooves pointed to in the image below .
MitoADAPT XL
Panel Mounting
Supplied anchors for
brick or concrete only
(included)
4" wood screw for
mounting against wood
or going into a stud (not
included
www.mitoredlight.com
25
Drywall studs (not
included)
