Mitox 26L - Installing the 3 Tooth Blade

26L/U, 33L/U, 43U, 53U
15
Original Instructions Version June 16

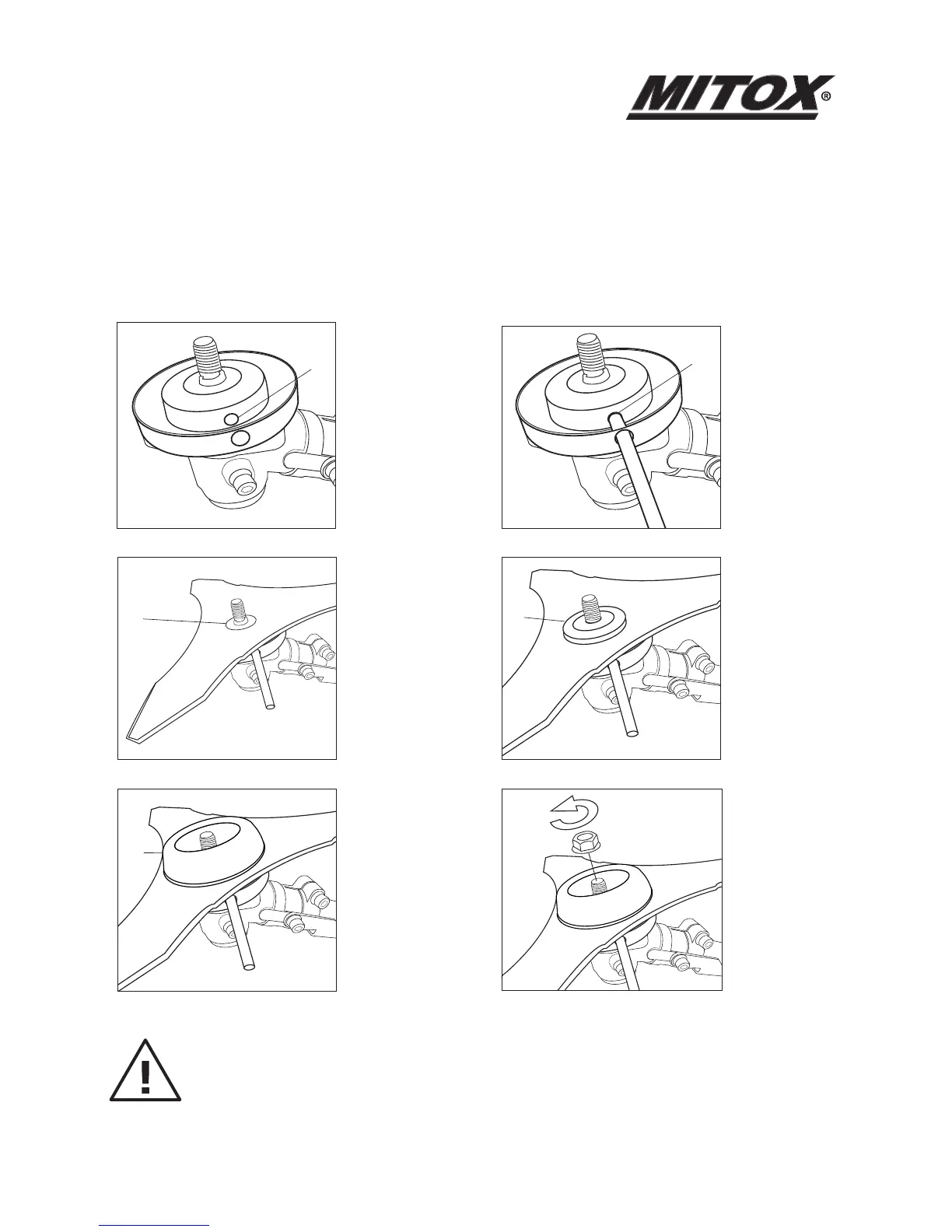

Installing the 3 Tooth Blade
• Lay the Brushcutter on its back with the gearbox shaft facing up.
THE BLADE MUST BE CORRECTLY POSITIONED ON THE UPPER BLADE CLAMP
OTHERWISE SERIOUS DAMAGE AND INJURY TO PERSONS AND PROPERTY COULD
RESULT.
Rotate the
gear box shaft
until the hole
in the holder A
lines up with
the slot in the
metal guard.
Insert an
Allen key or
screwdriver
into the hole
in the gearbox
cover and into
holder A.
Place the 3 tooth
blade on the
holder A, centring
the blade on the
raised centre.
Fit the holder
B over the
blade.
Fit the domed nut
protector C over
holder B and the
blade.
Fit the nut anti-
clockwise (turn
left) and tighten
using the spanner
provided. Remove
the Allen key /
screwdriver.
A
A
A
B
C
