Removal and reinstallation of the cover
1.3.2 Wiring cover
zRemoval and reinstallation

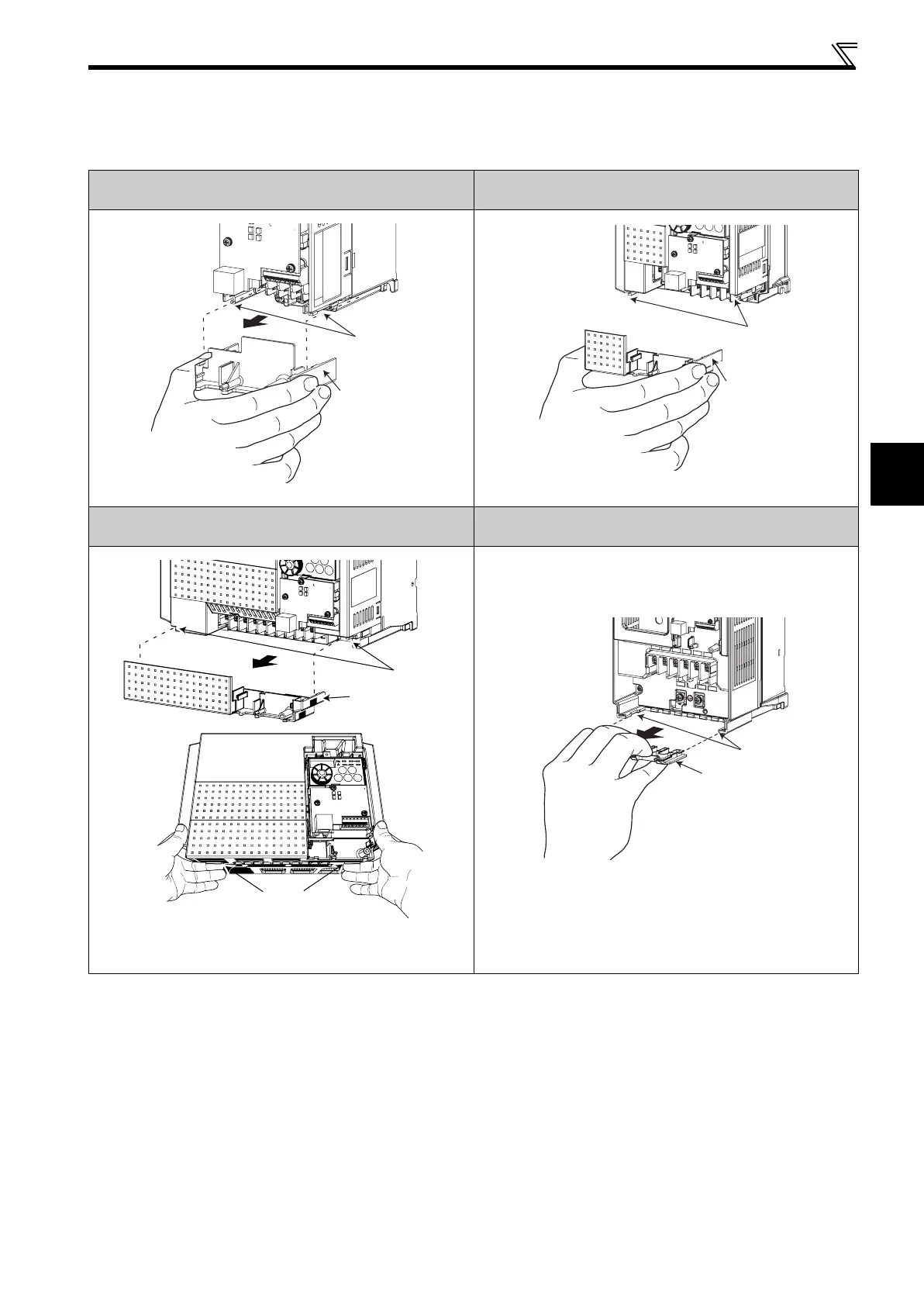

The cover can be removed easily by pulling it toward you. To reinstall, fit the cover to the inverter along the guides.
FR-E720-0.1KNF to 0.75KNF
FR-E720-1.5KNF to 3.7KNF
FR-E740-0.4KNF to 3.7KNF
Example of FR-E720-0.75KNF Example of FR-E740-3.7KNF
FR-E740-5.5KNF, 7.5KNF
FR-E720-5.5KNF to 15KNF
FR-E740-11KNF, 15KNF
For removal, push the dent on the wiring cover with your finger and
pull toward you.
Example of FR-E740-5.5KNF Example of FR-E740-11KNF
Wiring cove
Guide
Wiring cove
Guide
Wiring cover
Guid
Dent
Guide
Wiring cover
