6-1 Operation condition monitoring
• This function displays the ON/OFF/Malfunction status of specific units, groups, block, or floor.
• Display image of floor layout function (P60-P64)

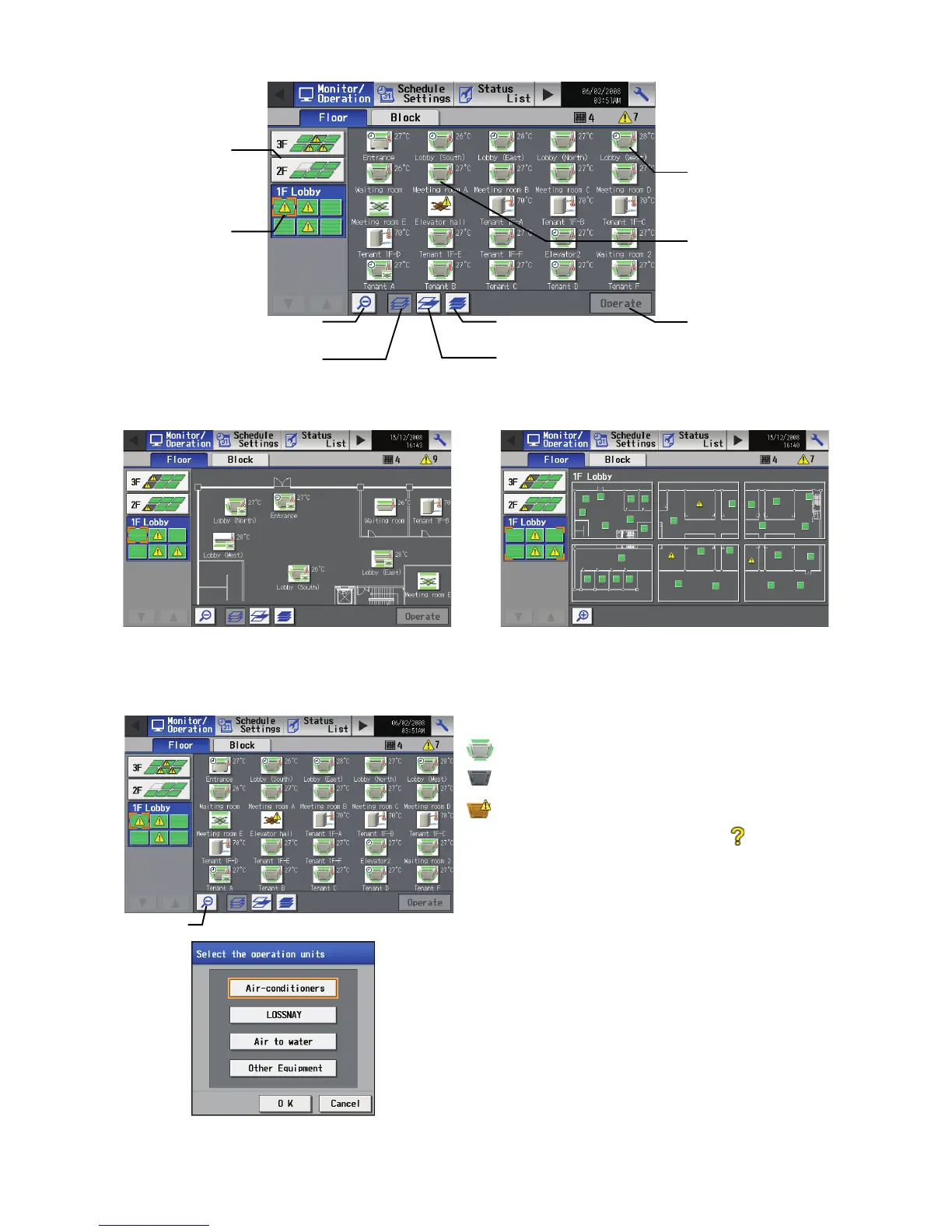

(1) Operation method
• Note that methods are different for group operation, block operation, floor operation, and batch operation for the entire building.
Floor-switching button
Button used to switch
the floors
Zoom-out button
Operation button
Group icon
Area selection frame
Indicates which area on
the floor is displayed on
the screen.
Deselect-all button
Cancels all group selections
Select-all button
Selects all groups
Select-all-groups-on-the-floor button
Selects all groups on the currently selected floor
Group selection frame
Indicates the group that is
selected
The following icons indicate the operation status.
* If there is a device that cannot be identified, will appear over the
icon of the device.
• Selecting the group icon and then pressing the operation button will
take the screen to the operation screen for the selected group.
(If more than one groups exist within a group, such as air
conditioning unit group, ventilation unit group (LOSSNAY and OA
handling units), Air To Water (PWFY) unit, and general equipment
group, a screen to select a group will appear. After the models have
been selected, the operation screen will appear.) On the screen,
detailed information about the temperature, fan speed, air flow
direction, prohibit/permit status of the remote controller, and
operation mode can be checked.
• Pressing the zoom out button will take the screen to the list screen.
• By pressing the floor switching button, the settings for the air
conditioning units on other floors can be checked.
* “Booster unit” and “Water HEX unit” will appear as “Air To Water
(PWFY)”.
:On
:Off
: Error
