Mitsubishi Electric CAHV-P500YA-HPB Service Handbook

[ III Unit Components ]
- 32 -
HWE10060 GB

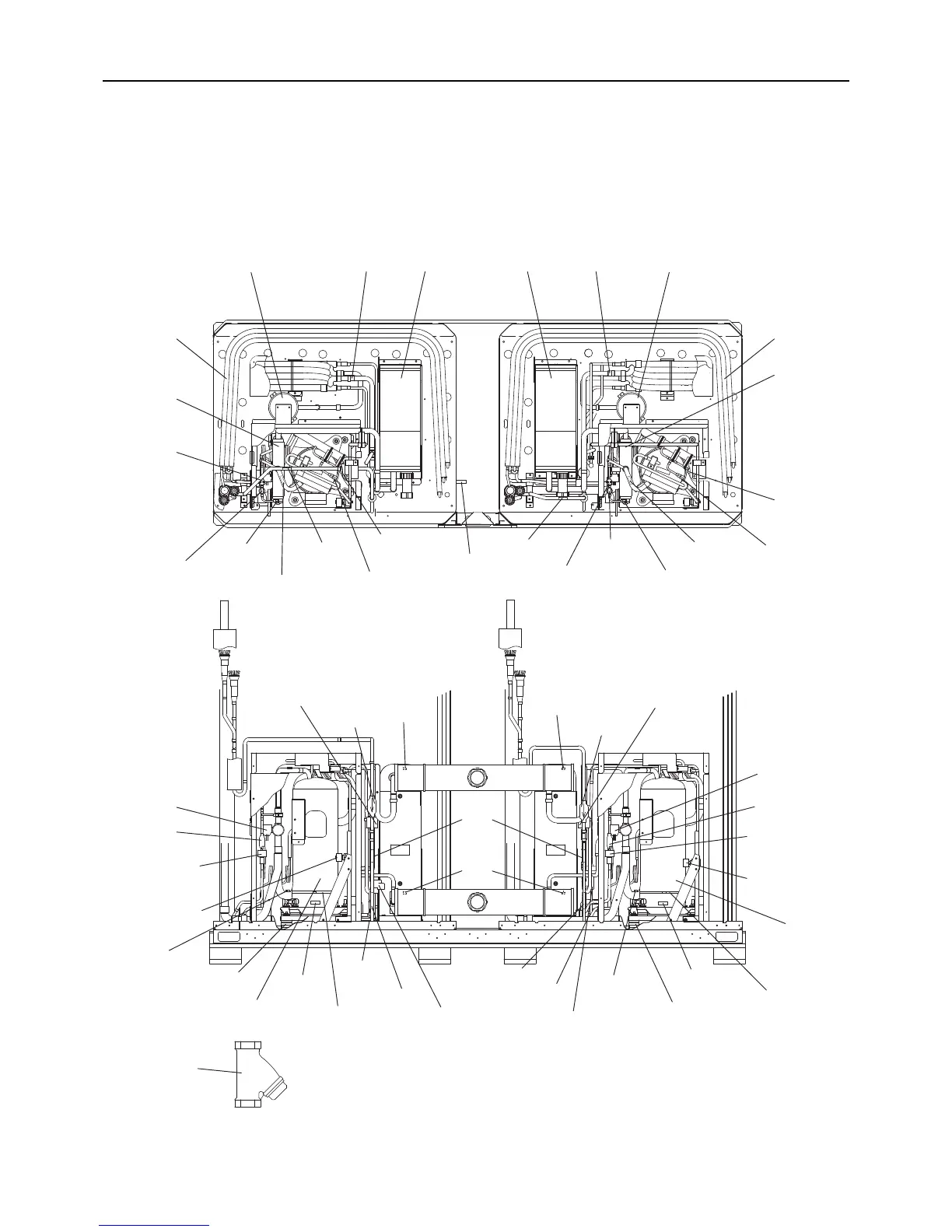

2. Refrigerant circuit
Strainer Strainer
Water side
HEX.
Water side
HEX.
Pressure
sensor HP
Check joint
Pressure
sensor HP
Pressure
switch
Thermistor
Thermistor
Thermistor
Check joint
Check joint
Pressure
sensor LP
Check joint
Rubber
mount
Thermistor
Thermistor
Strainer
Rubber mount
Thermistor
Strainer UL
Check valve
Compressor
Belt heater
Compressor
Belt heater
Strainer
UL
Thermistor
Check valve
Pressure
sensor LP
Four way
valve
Pressure
switch
Four way
valve
Solenoid coil
Strainer
UL
Solenoid coil
Strainer UL
Thermistor
Strainer
Strainer
Check
valve
Thermistor
Thermistor
Linear
expansion
valve
Linear
expansion
valve
Thermistor
(TH1)
(TH9)
(TH11,TH13)
(TH10,TH12)
(TH10,TH12)
(TH8)
(TH5)
(TH4)
Solenoid valve.
Solenoid coil
Solenoid valve.
Solenoid coil
Expansion valve.
Solenoid coil CAM
Expansion valve.
Solenoid coil CAM
Solenoid valve.
Solenoid coil
Solenoid valve.
Solenoid coil
Heat
exchanger
Thermistor.
Sensor holder
Heat
exchanger
Receiver
Receiver
(TH2)
(TH3)
(TH7)
(TH6)
(HP)
(LP)
(HP)
(LP)
