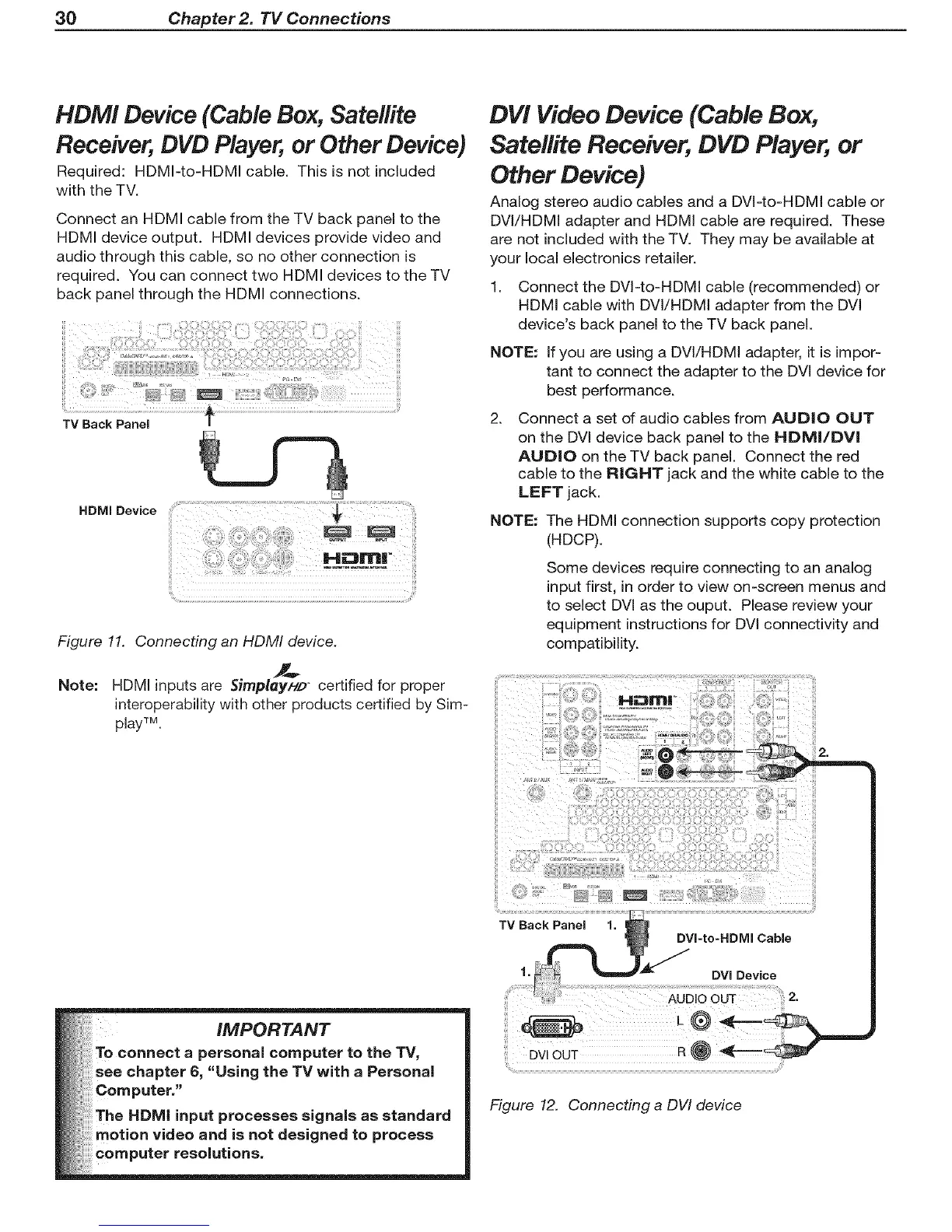

30 Chapter 2. 71/Connections
HDMI Device (Cable Box, Satellite
Receiver, DVD Player, or Other Device)
Required: HDMI-to-HDMI cable. This is not included
with the TV.
Connect an HDMI cable from the TV back panel to the
HDMI device output. HDMI devices provide video and
audio through this cable, so no other connection is
required. You can connect two HDMI devices to the TV
back panel through the HDMI connections.
TV Back Panel
HDMI Device
Figure 11. Connecting an HDMI device.
Note: HDMI inputs are Simplay/-/z_ certified for proper
interoperability with other products certified by Sim-
playTM.
DV! Video Device (Cable Box,
Satellite Receiver, DVD Player, or
Other Device)
Analog stereo audio cables and a DVI=to=HDMI cable or
DVl/HDMI adapter and HDMI cable are required. These
are not included with the TV. They may be available at
your local electronics retailer.
1. Connect the DVI=to=HDMI cable (recommended) or
HDMI cable with DVl/HDMI adapter from the DVI
device's back panel to the TV back panel.
NOTE: If you are using a DVl/HDMI adapter, it is impor-
tant to connect the adapter to the DVI device for
best performance.
2. Connect a set of audio cables from AUDIO OUT
on the DVI device back panel to the HDMI/DVl
AUDIO on the TV back panel. Connect the red
cable to the RIGHT jack and the white cable to the
LEFT jack.
NOTE:
The HDMI connection supports copy protection
(HDCP).
Some devices require connecting to an analog
input first, in order to view on-screen menus and
to select DVl as the ouput. Please review your
equipment instructions for DVl connectivity and
compatibility.
IMPORTANT
To connect a personal computer to the TV,
see chapter 6, "Using the TV with a Personal
Computer."
The NDIVll input processes signals as standard
motion video and is not designed to process
computer resolutions.
Figure 12. Connecting a DVI device
