Chapter 2. TV Connections 31
DVD Player with Component Video
Component video cables and analog audio cables are
required. These are not included with the TV.
1. Connect the component video cables from Y PB PR
VIDEO OUT on the back of the DVD player to the
COMPONENT jacks on the TV back panel, match-
ingthe red, green, and blue colored connections.
2. Connect left (white) and right (red) stereo audio
cables from AUDIO OUT on the back of the DVD
player to COMPONENT/AUDIO LEFT and
RIGHT on the TV back panel.
TV Back Panel
DVD Player Back Panel

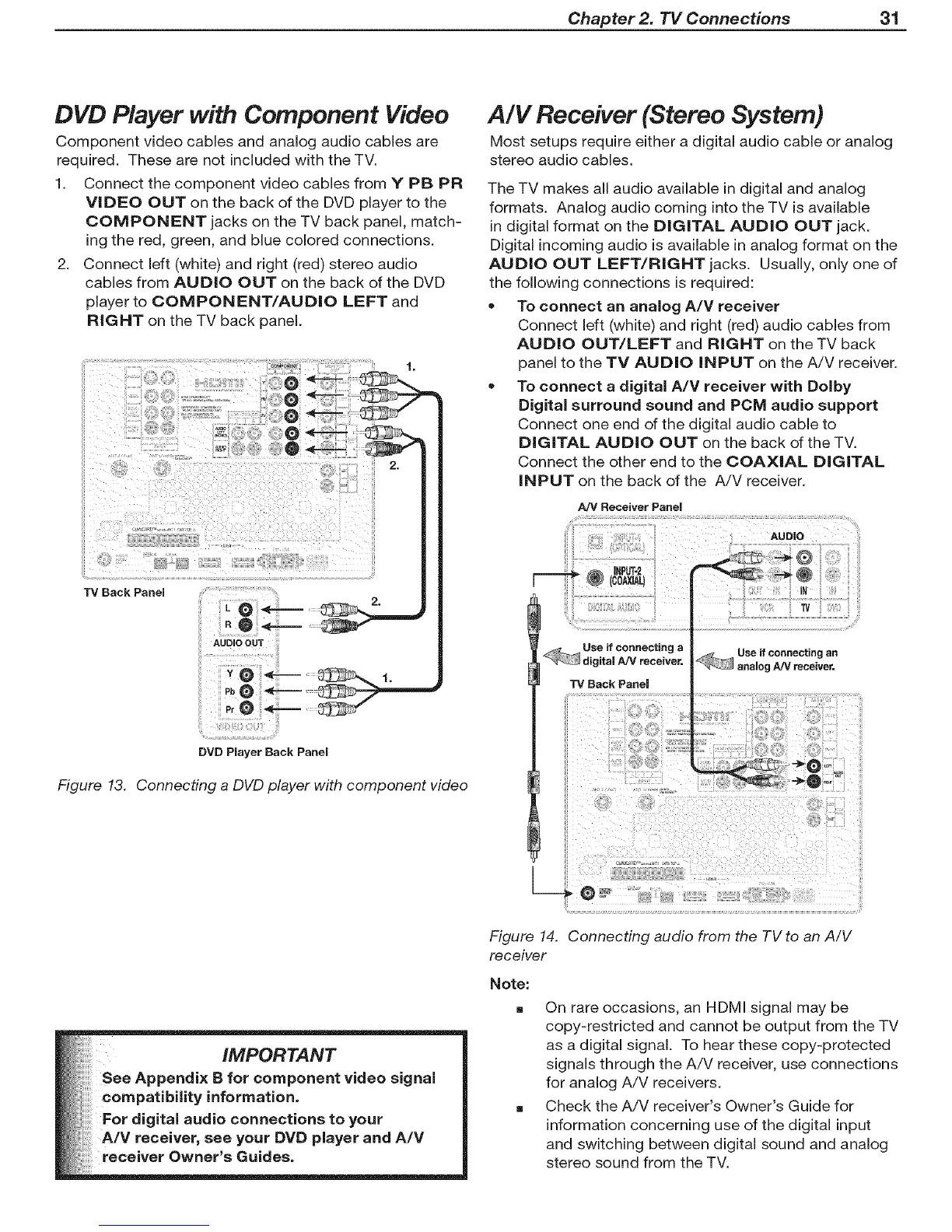

Figure 13. Connecting a DVD player with component video
A/V Receiver (Stereo System)
Most setups require either a digital audio cable or analog
stereo audio cables,
The TV makes all audio available in digital and analog
formats. Analog audio coming into the TV is available
in digital format on the DIGITAL AUDIO OUT jack.
Digital incoming audio is available in analog format on the
AUDIO OUT LEFT/RNGHTjacks. Usually, only one of
the following connections is required:
• To connect an analog A/V receiver
Connect left (white) and right (red) audio cables from
AUDIO OUT/LEFT and RIGHT on the TV back
panel to the TV AUDIO iNPUT on the A/V receiver.
To connect a digital A/V receiver with Dolby
Digital surround sound and PCM audio support
Connect one end of the digital audio cable to
DIGITAL AUDIO OUT on the back of the TV.
Connect the other end to the COAXIAL DIGITAL
INPUT on the back of the A/V receiver.
AN Receiver Panel
IN
i Use if connecting a _, Use if connecting an
I_
Figure 14. Connecting audio from the TV to an A/V
receiver
Note:
[]
On rare occasions, an HDMI signal may be
copy-restricted and cannot be output from the TV
as a digital signal. To hear these copy-protected
signals through the A/V receiver, use connections
for analog A/V receivers.
Check the A/V receiver's Owner's Guide for
information concerning use of the digital input
and switching between digital sound and analog
stereo sound from the TV.
