DISASSEMBLY PROCEDURE
PHOTOS/ FIGURES

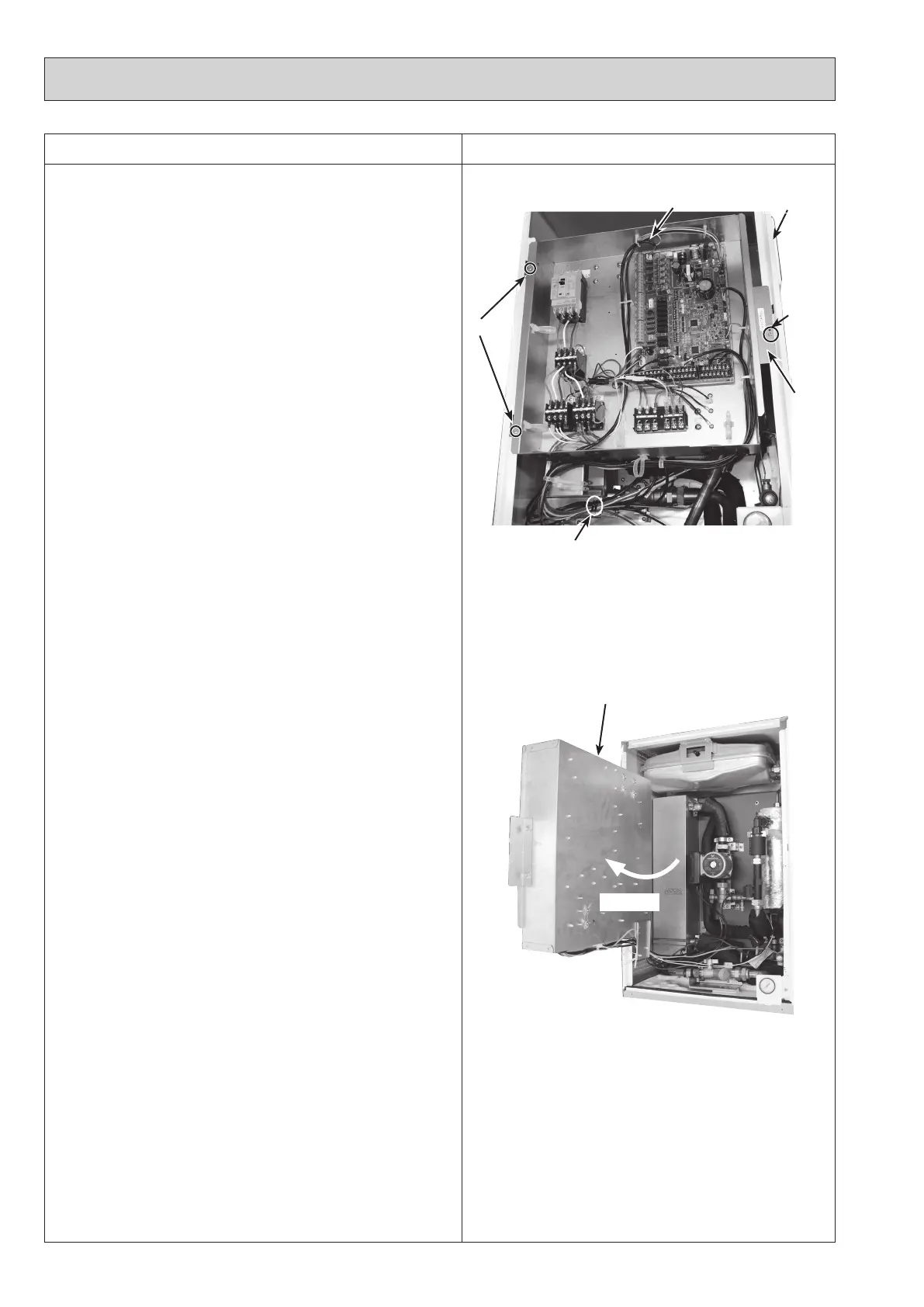

Photo 4-1
* The photos shown are of the EHSC-YM9C model.
4. How to swing the control box to the front
(1) Remove the front panel. (Refer to Procedure 1.)
(2) Remove the screw from the control box bracket (R) and 2
screws from the control box bracket (L).
(3) Release the coated clamp.
(4) Disengage the control box bracket (R) from the right-hand
side panel and pull the control box. At this point, lifting
slightly and pulling the control box will swing the control
box to the front. (Photo 4-2)
Note: Remove the field wiring as necessary.
Coated clamp
Earth cable
Bracket
(R)
Side panel
Screw
Screws
Photo 4-2
Control box
Swing
OCH571D
