5. PARAMETERS
5.16 (G) Control parameters
Pr.10 DC injection brake operation frequency, Pr.11 DC injection brake operation time, Pr.12 DC injection brake operation voltagepage 681
Pr.13 Starting frequencypage 363, page 364

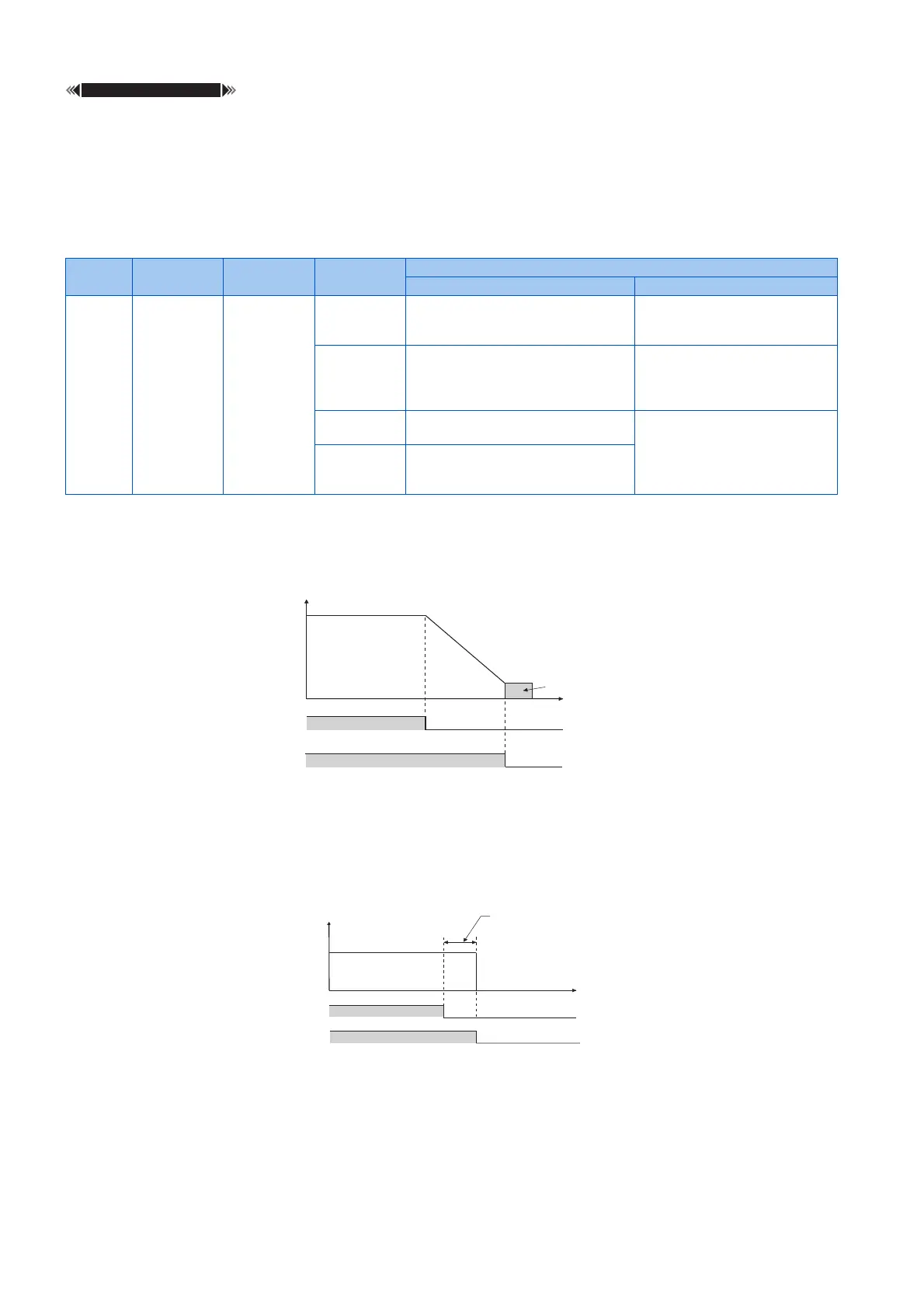

5.16.10 Stop selection
Select the stopping method (deceleration stop or coasting) at turn-OFF of the start signal.
Coasting can be selected for the cases such that the motor is stopped with a mechanical brake at turn-OFF of the start signal.
The operation of the start signal (STF/STR) can be selected. (For the start signal selection, refer to page 502.)
*1 For the start signal selection, refer to page 502.
To decelerate the motor to a stop
•Set Pr.250 = "9999 (initial value) or 8888".
• The motor is decelerated to a stop when the start signal (STF/STR) is turned OFF.
To coast the motor to a stop
• Set the time required to shut off the output after the start signal is turned OFF in Pr.250. When "1000 to 1100" is set, output
is shut off after a lapse of the (Pr.250 - 1000) seconds.
• The output is shut off after a lapse of the setting time of Pr.250 when the start signal is turned OFF. Motor coasts to a stop.
• The RUN signal is turned OFF when the output is shut off.
Pr. Name Initial value Setting range
Description
Start signal (STF/STR)
*1
Stop operation
250
G106
Stop
selection
9999
0 to 100 s
STF signal: Forward rotation start
STR signal: Reverse rotation start
The motor coasts to a stop after a
lapse of the setting time when the
start signal is turned OFF.
1000 to 1100 s
STF signal: Start signal
STR signal: Forward/reverse rotation
signal
The motor coasts to a stop after a
lapse of the (Pr.250 - 1000)
seconds when the start signal is
turned OFF.
9999
STF signal: Forward rotation start
STR signal: Reverse rotation start
The motor is decelerated to a stop
when the start signal is turned OFF.
8888
STF signal: Start signal
STR signal: Forward/reverse rotation
signal
Time
ON
OFF
Start
signal
Deceleration starts
when start signal turns OFF
Deceleration time
(Time set in Pr. 8, etc.)
DC brake
Output frequency
(Hz)
ON
OFF
RUN
signal
OFF
ON
Start signal
Output is shut off when
set time elapses after
start signal turns OFF
Pr.250
Motor coasts to stop
Time
O
FF
RUN signal
Output frequency
(Hz)
ON
