10
Unit: mm

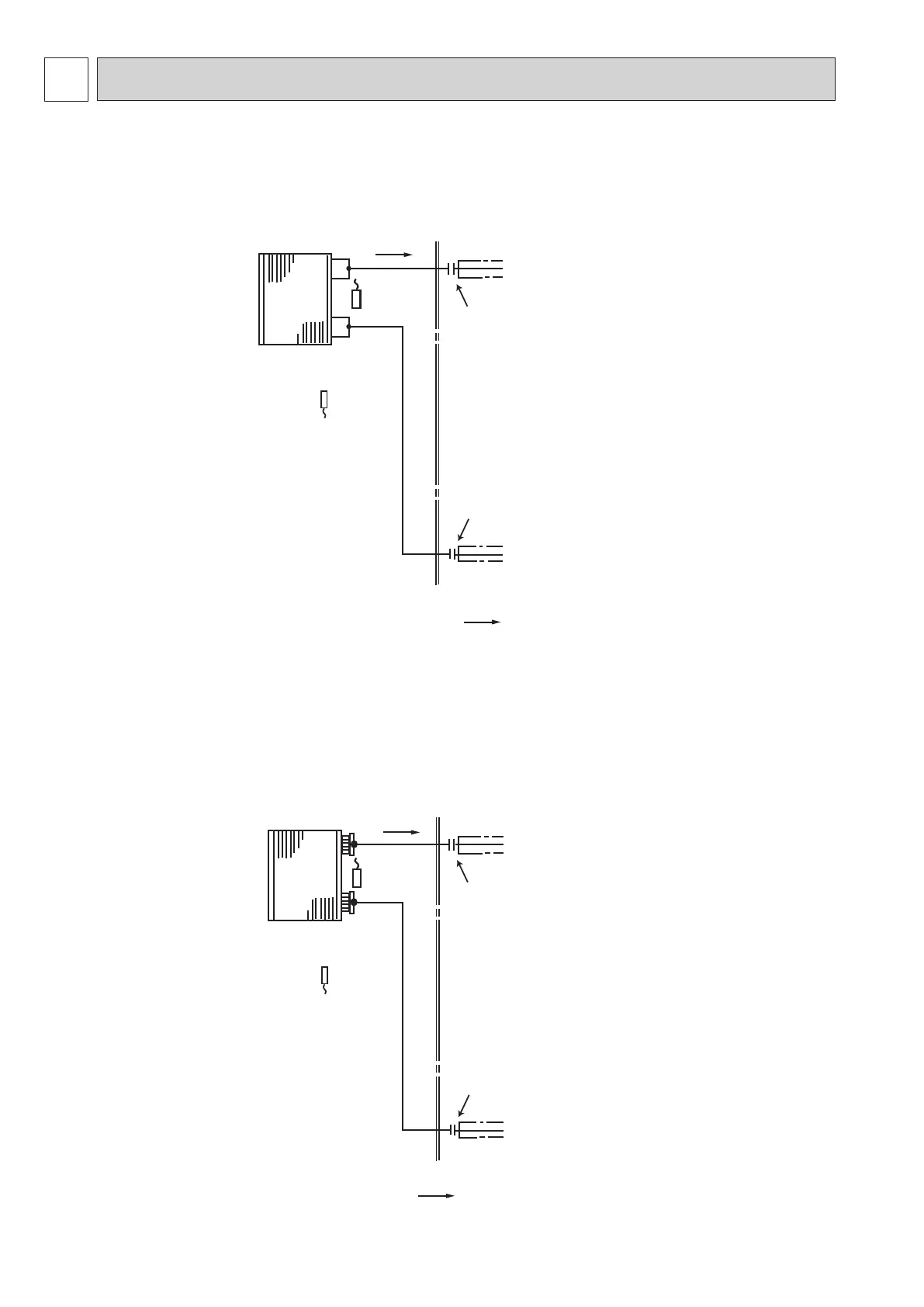

REFRIGERANT SYSTEM DIAGRAM
6
MS-CP18VA MS-CP24VA
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Flared connection
Refrigerant pipe ø15.88
(with heat insulator)
Refrigerant pipe ø6.35
(with heat insulator)
Indoor coil
thermistor
RT12
Refrigerant flow in cooling
MS-CP13VA
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Flared connection
Refrigerant pipe ø6.35
(with heat insulator)
Indoor coil
thermistor
RT12
Refrigerant flow in cooling
Refrigerant pipe ø12.7
(with heat insulator)
OBH782A
