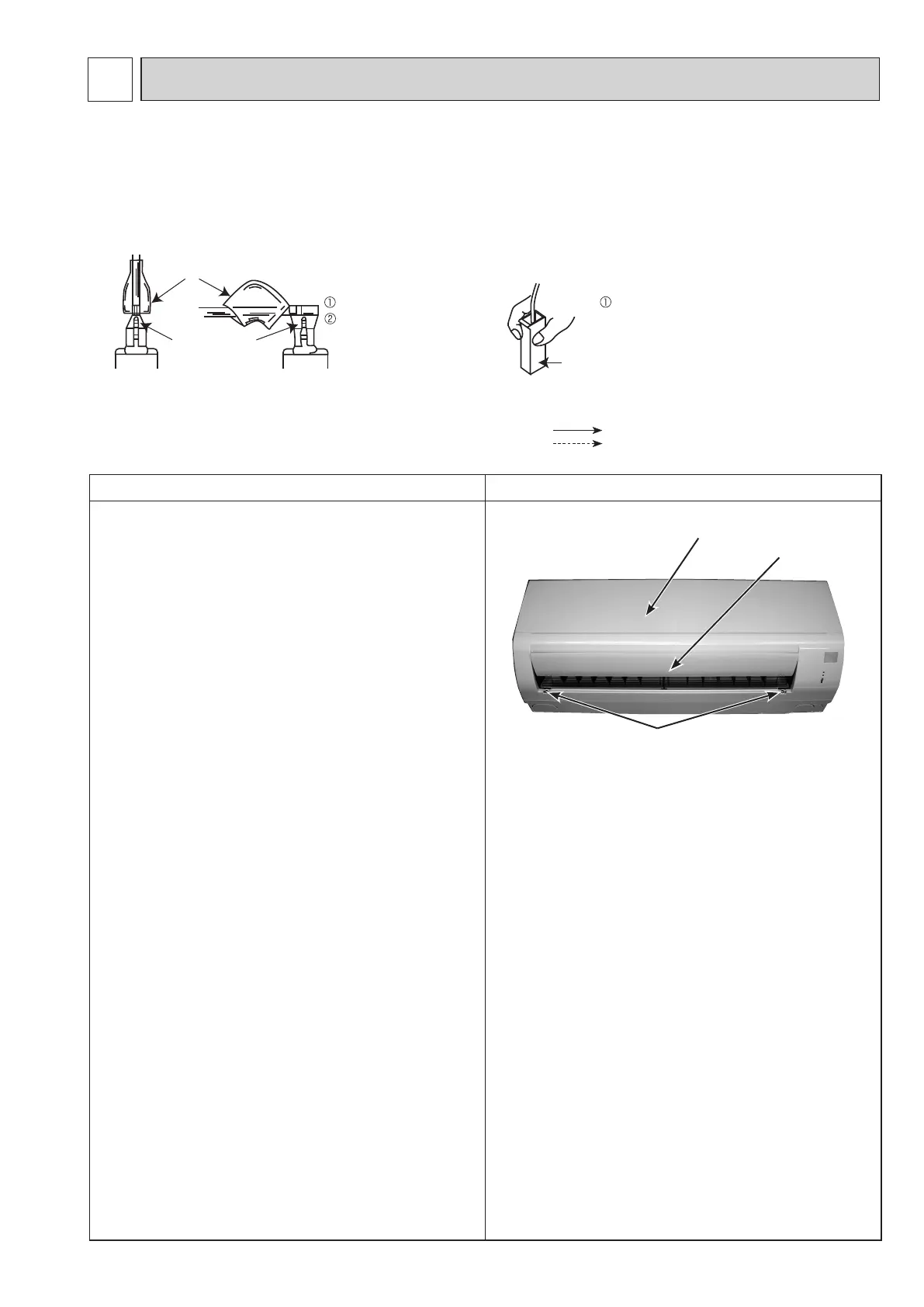

10-1. MS-CP13VA
: Indicates the visible parts in the photos/gures.
: Indicates the invisible parts in the photos/gures.
NOTE: Turn OFF the power supply before disassembly.
OPERATING PROCEDURE PHOTOS/FIGURES
1. Removing the panel
(1) Remove the screw caps on the panel and remove the
screws of the panel.
(2) Pull the panel slightly toward you, and then remove the
panel by pushing it upward.
41
Photo 1
Screws of the panel
(1) Slide the sleeve and check if there is a locking lever or not. (2) The terminal with this connector shown below
has the locking mechanism.
Slide the sleeve.
Pull the terminal while
pushing the locking
lever.
Hold the sleeve, and
pull out the terminal
slowly.
Connector
Sleeve
Locking lever
<Detaching method of the terminal with locking mechanism>
The terminal which has the locking mechanism can be detached as shown below.
There are following 2 types of the terminal with locking mechanism.
The terminal without locking mechanism can be detached by pulling it out.
Check the shape of the terminal before detaching.
10
DISASSEMBLY INSTRUCTIONS
Horizontal vane
Front panel
To Next Page
