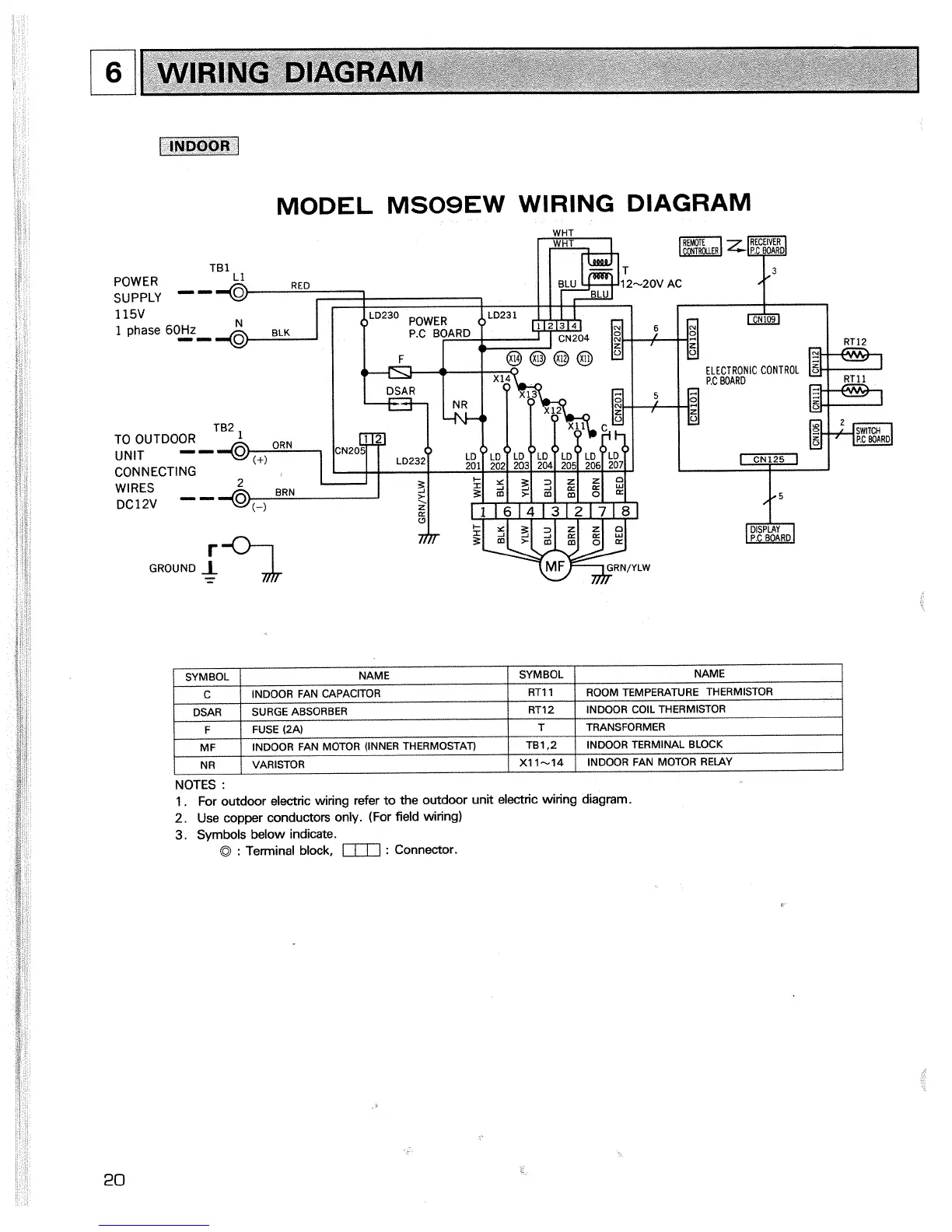

MODEL
MSOSEW WIRING DIAGRAM
1
TO OUTDOOR
UNIT
--
CON N ECTl NG
DC12V
--
WIRING DIAGRAM
NOTES
:
1.
For outdoor electric wiring refer to the outdoor unit electric wiring diagram.
2.
Use copper conductors only. (For field wiring)
3.
Symbols below indicate.
Q
:
Terminal block,
:
Connector.
SYMBOL
C
DSAR
F
MF
NR
SYMBOL
RTl 1
RT12
T
TB1,2
Xl l-14
NAME
INDOOR FAN CAPACITOR
SURGE ABSORBER
FUSE
(2A)
INDOOR FAN MOTOR (INNER THERMOSTAT)
VARISTOR
NAME
ROOM TEMPERATURE THERMISTOR
INDOOR COIL THERMISTOR
TRANSFORMER
INDOOR TERMINAL BLOCK
INDOOR FAN MOTOR RELAY
