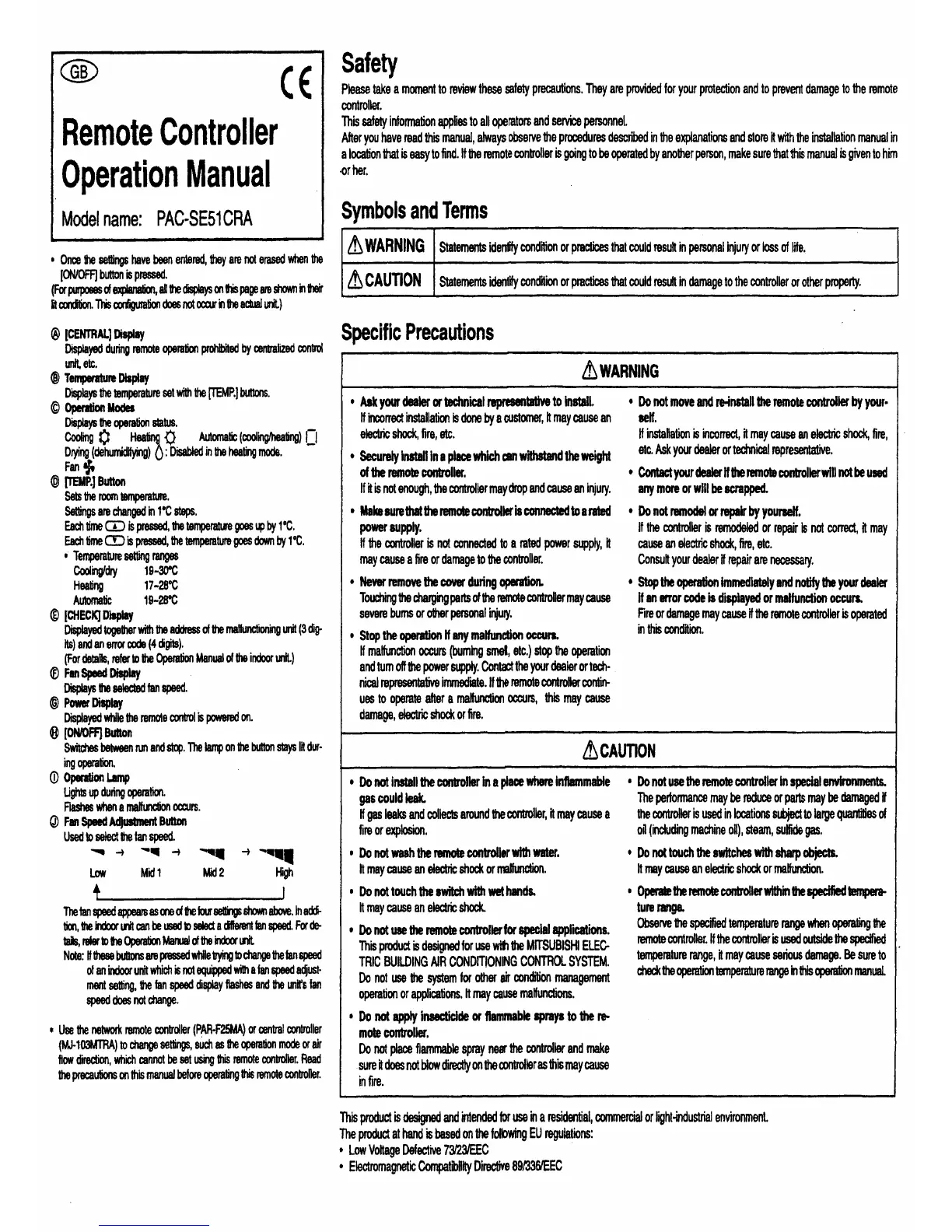

Remote Controller
Operation Manual
Model name: PAC-SE51 CRA
• Опсе lhe setlings have Ьееп entsred, they are not erased when the
(ON/OFF] button is pressed.
(For purpoвes of explanalion, all lhe displays on lhis page вrв mown i1 lheir
lit cmllion. This corilguralion does not осш il the aeul unit.)
@ [CENТRAL] Display
Displayed during remote operation prohlblted Ьу centralized control
unJt. etc.
® Temperвturt Dlaplay
Displays lhe temperature set wilh lhe [ТЕМР.) Ьuttons.
© Openllion Моdе1
Displays lhe operalion slatus.
Cooling ё Нeati .р Automalic (coolingfheating) [1
Drying (dehumidllying) i: DisaЫed in the heating mode.
Fan it
@ (ТЕМР.] Button
Sets lhe room temperature.
Setlings are changed in 1 •с steps.
Each time CD is pressed, the tsmperature goes up Ьу 1°С.
Each time CD is pressed, lhe temperature goes c1own Ьу 1•с.
• Ternperature setting ranges
Coolingldry 19-ЗО°С
Heating 17-28°С
Autornatic 19-28°С
® [СНЕСК] Dllplay
Displayed togelher wilh the address о! lhe maltunctioning unlt (З dig-
lts) and ап error code (4 digils).
(for delails, refer to lhe Operalion Мanual of the indoor unlt.)
® fln Speed Ditplly
Displays the selected fan speed.
@ Power Displly
Dis~ayed while the remote control is powered on.
® [O№OFFJ Вutton
Switches Ьetween run and stop. The lamp оп the Ьutton slays lh dur·
ing operation.
ф Opendion Llmp
Ughts up during operation.
Aashes when а malfunction occurs.
Q) Fan Sрвес1 Adjustment Button
Used to select lhe tan speed.
~ -+ - ... -+
Low Mid1
Тhе tвп speed appears as one of lhe lour selliigs shoмl aЬoYe. ln acki-
tion, lhe lnOOor lrit сап Ье used to select а cillerent fвn speed. For de-
tals, 8 ID lhe Operation Мaruil of the inOOor Ll1it.
Note: U these Ьutlons 8111 pnissed whlle trying ID change the fan speed
о! ап indoor unh which is not equipped wilh а tan speed adjust·
ment setling, lhe fan speed display flashes вnd lhe unll's fan
speed does not change.
• Use the network remole conlroller (PAR-F25МA) or central controller
(МJ.10ЭМТRА) 1о change sellings, such as lhe operation rnode or air
flow direclion, which cannot Ье set using lhis remote controller. Read
lhe precвu\ions on thls manual Ьef ore operating lhis remole conlroller.
Safety
Please take а moment to review these safety precautions. Тhеу are provided for your protection and to prevent damage to the remote
controller.
This safety information аррПеs to all operators and service personne\.
After you have read this manual, always oЬserve the procedures descriЬed in the explanations and store И with the installation тanual in
а location that is easy to flnd. lt the remote controller is going to Ье operated Ьу anolher person, make sure that this manual is given to him
·Orher.
Symbols and Terms
~ WARNING Staternents iden1ify condition or practices thal could resutt in personal injury or loss of IИе.
~ CAUТION Statements identify condffion or practices that could result in damage to the controller or other property.
Specific Precautions
ffiWARNING
• Ask your dealer or technical representatlve to install.
lf incorrect installation is done Ьу а customer, tt may cause an
eleclric shock, fire, etc.
• Securely lnstall ln а plece which с:вn withstand the weight
of the remote controller.
lf И is not enough, the controller mву drop and cause an lnjury.
• Маkе sure thatthe remote controller 1а connected to а rated
power supply.
lf the controller is not connected to а rated power supply, tt
тау cause а fire or daтage to the controller.
• Never rernove the cover during opendion.
Touching the charging parts of the remote controDer may cause
severe bums or other personвl injury.
• Stop the operation lf вnу malfunction occura.
lf mвlfunction occurs (Ьumlng smel, etc.) stop the operation
вnd tum off the power supply. Coni.:t the your dealer or tech·
nical representative il'Мl8diвte. lf the remote controНer contin-
ues to operate after а malfunction occurs, this mву cause
damage, electric shock or fire.
• Do not move and rНnstall the remote controller Ьу your·
self.
lf instaBвtion is incorrвct, И may cause ап electric shock, flre,
etc. Ask your dealer or technica\ representative.
• Contact your de8ler lf lhe remote controllerwlll not Ье used
апу more or wlll Ье acrapped.
• Do not remodel or repalr Ьу yourself.
lf the controller is remodeled or repair ls not correct, tt may
cause an electric shock, flre, etc.
Consutt your dealer lf repair are necessary.
• Stop the operation lmmedlately вnd notify the your dealer
lf вn 8Тоr code ls displayed or mвltunction occurs.
Fire or damage тау cause И the remote controller is operated
in this condffion.
~CAUТION
• Do not install the controller ln а place where lnВammaЫe
gas could leak.
lf gas leaks and collects around lhe controller, h тау cвuse а
fire or explosion.
• Do not waah the remote controller wlth water.
h mву cause ап electric shock or nвlfunction.
• Do not touch the 1witch with wet t.ds.
h mву cause an electric shock.
• Do not uae lhe remote controller for speclal applications.
Тhis product is designed for use wlt1 the MIТSUBISHI ELEC-
TRIC BUILDING AIR CONDmONING CONТROL SYSТEM.
Do not use the system for other air condition management
operation or applications. h тау cause malfunctions.
• Do not арр1у insecticlde or flammaЫe 1pray1 to the re-
mote controller.
Do not place flammaЫe spray near the controller and make
sure ~ does not Ыоw directly on the oontroller as this тау cause
in fire.
• Do not use the rernote controller ln speclal environments.
Тhе pertormance may Ье reduce or pвrts may Ье damaged П
the controller is used in locations suЬject to large quantitles of
оП (including machine oll), steam, sulfide gas.
• Do not touch the 1witches with sharp oЬjects.
h may cause вn elearic shock ог maltunaion.
• Operale the remote controllerwlthin the speclfied tempera.
ture range.
OЬserve the specified temperature range when operating the
remote controller. lf the controller is used outslde the specified
temperature range, k тау cause serious damage. Ве sure to
check the operation temperature range ln thls q:ieration manual.
This product is designed and intended fDr use in а residential, commercial or light-industrial environmenl
Тhе product at hand is Ьased on the folЬwlng EU regulations:
• Low Voltage Defective 73123/ЕЕС
• Electromagnetic CompatiЬHlty Dirвctive 89/ЗЗ&/ЕЕС
