Mitsubishi Electric WD-57833 Service Manual

MODELS: WD-57733 / WD-65733 / WD-73733 / WD-57734 / WD-65734 / WD-73734 / WD-C657
WD-Y577 / WD-Y657 / WD-57833 / WD-65833 / WD-73833
Page 15

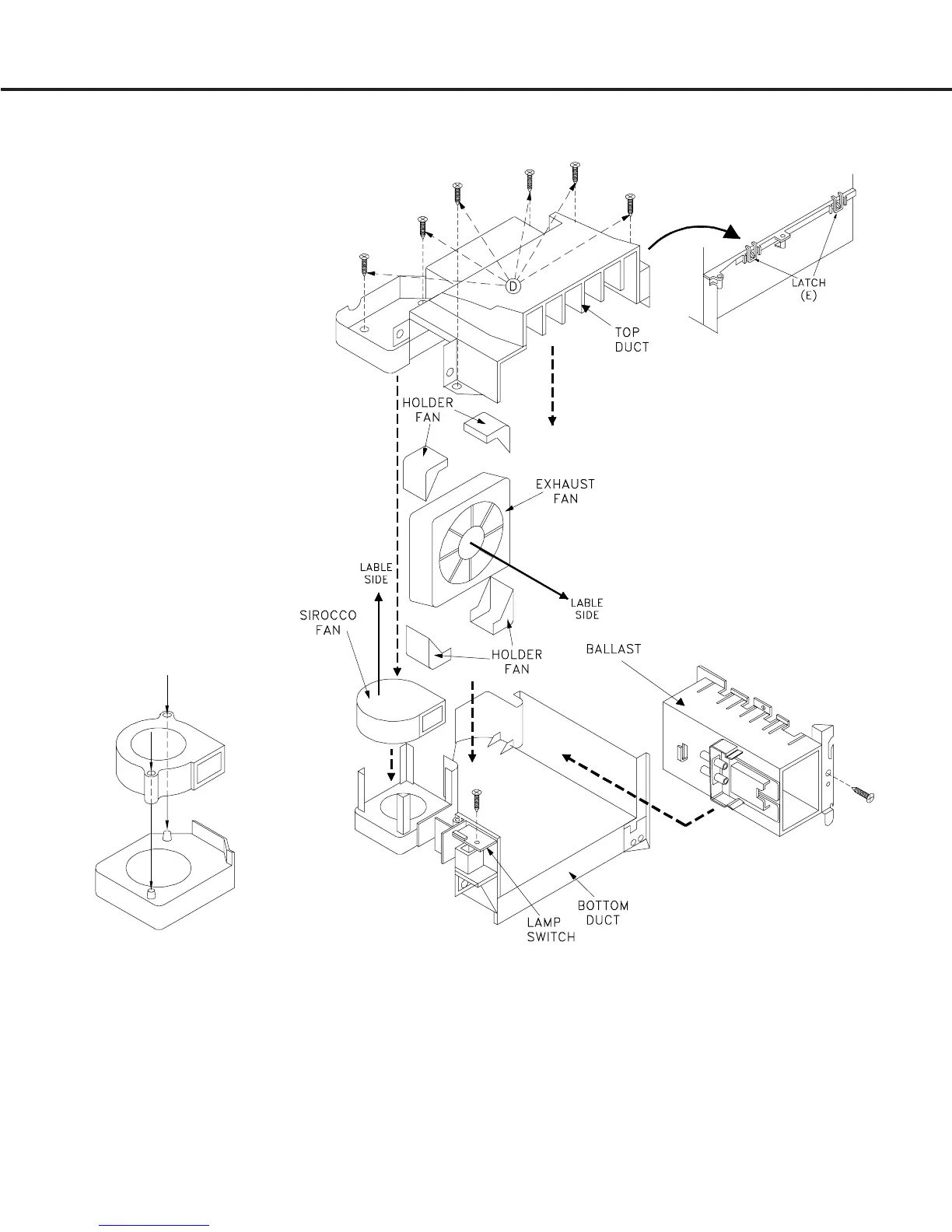

Figure 3: Optical Engine Sub Assembly (Exploded View)
FLANGES Align
Onto GUIDE PINS
NOTES:
a. The Sirocco Fan must be installed with the Label facing up with the Flanges aligned onto the Guide Pins.
b. The Exhaust fan must be installed with the Label facing towards the inside of the Duct.
c. There are Four Exhaust Fan Holders, two on the top and two on the bottom.

Mitsubishi Electric WD-57833 Specifications

General

Screen Size	57 inches
Display Type	DLP
Aspect Ratio	16:9
HDMI Ports	3
Contrast Ratio	5000:1
Speakers	2 x 10W
Resolution	1920 x 1080
Inputs	Component, Composite
