MODELS: WD-57733 / WD-65733 / WD-73733 / WD-57734 / WD-65734 / WD-73734 / WD-C657
WD-Y577 / WD-Y657 / WD-57833 / WD-65833 / WD-73833
Page 17
SCREEN REMOVAL & REPLACEMENT
WD-57833, WD-65833 & WD-73833 Only

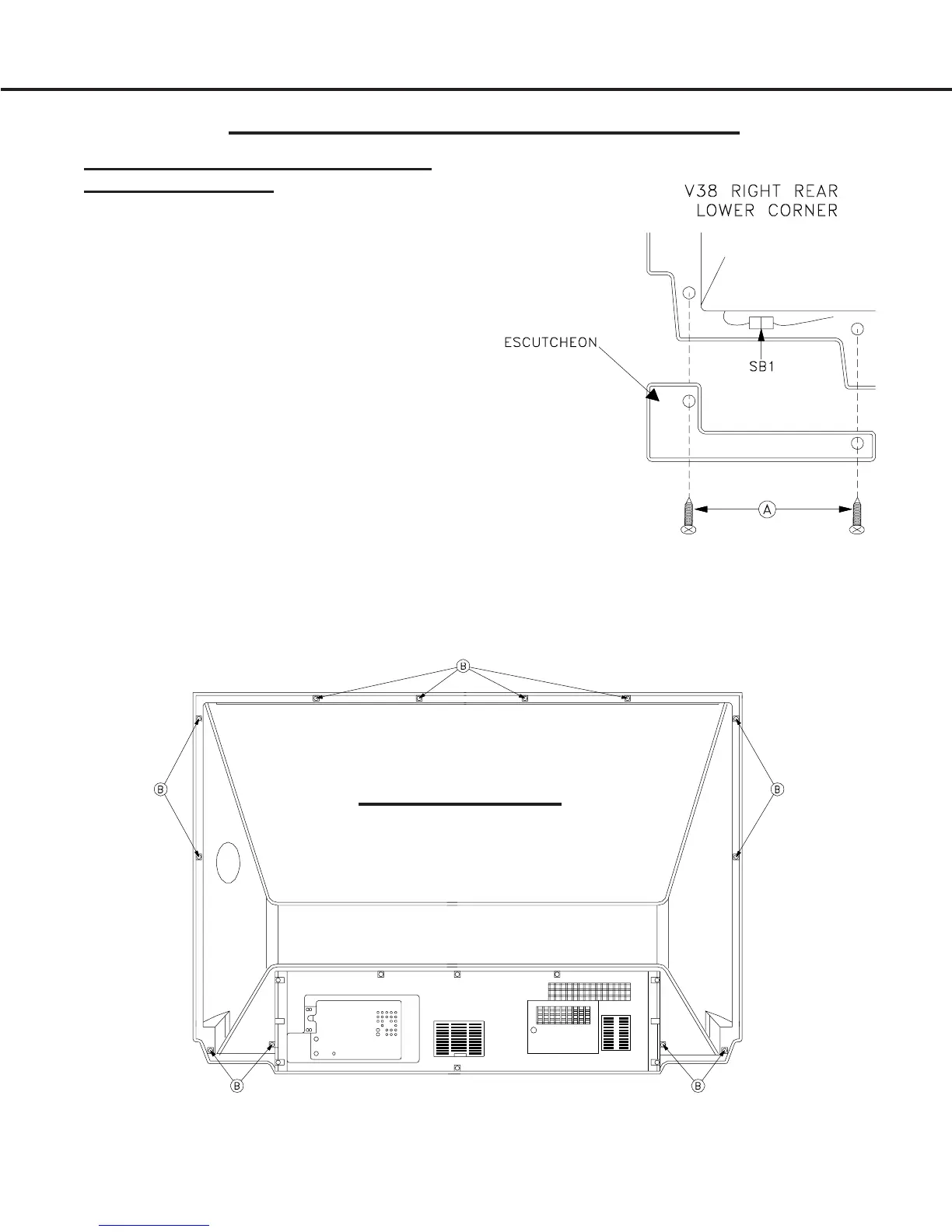

Escutcheon Removal
Before Removing the Screen Assembly
(V38 Models Only)
1) Remove 2 screws (A) at the lower rear corner on
the right side.
2) Remove the small escutcheoncover to access the
SB1 connector
3) Unplug the SB1 connector. This disconnects the
PWB-SBL-R & PWB-SBL-L (mounted on the
screen Bezel), from the chassis.
Screen Assembly (Bezel) Removal
1) Remove all rear screws (B) except one in an upper corner (To support the
screen assembly while removing the front mounting screws).
57 inch Models
To Next Page
