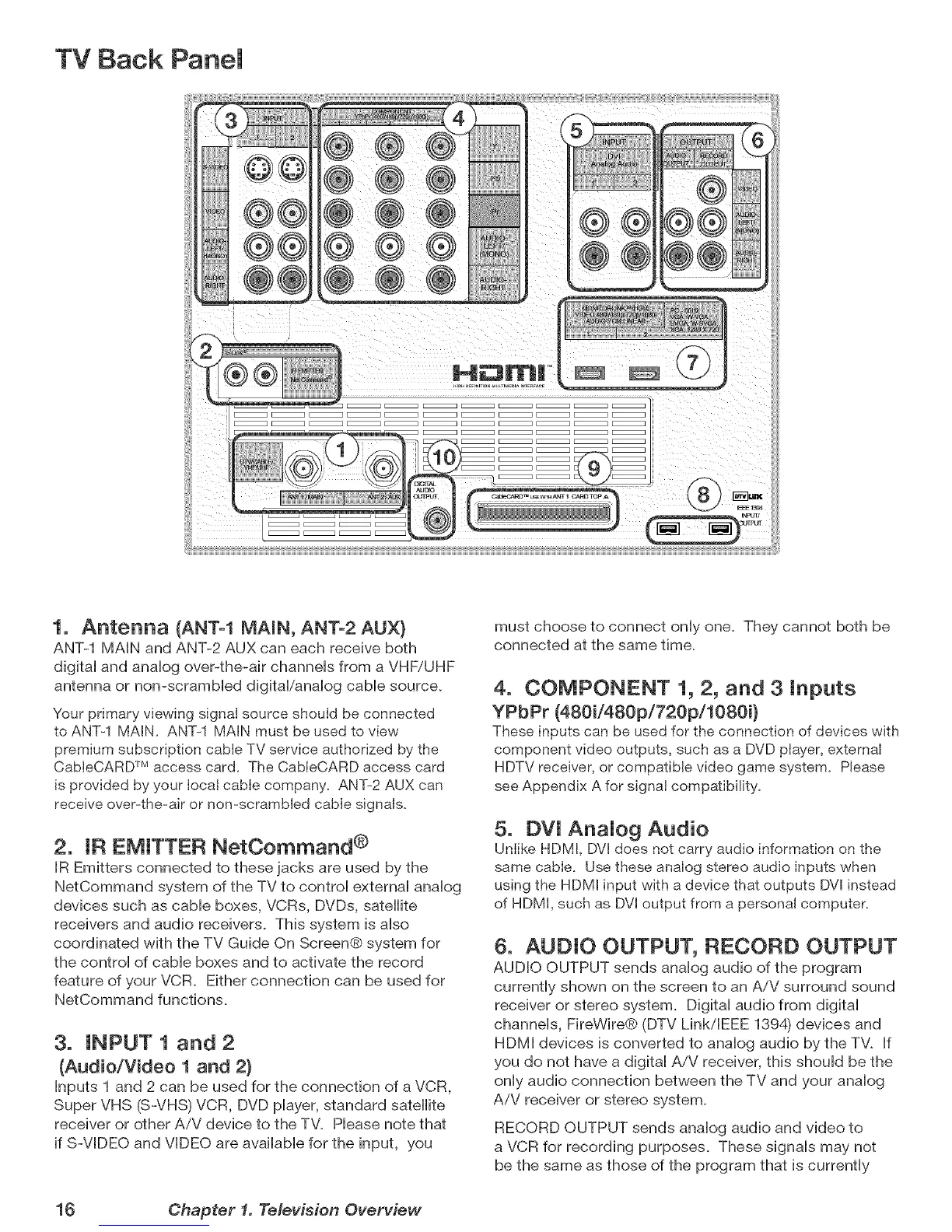

TV Back Panel
1. Antenna (ANT-1 MAIN, ANT-2 AUX}
ANT-1 MAIN and ANT-2 AUX can each receive both
digita] and anaiog over-the-air channeis from a VHFiUHF
antenna or non-scrambled digital/analog cable source.
Your primary viewing signal source should be connected
to ANT-1 MAIN. ANT-I MAIN must be used to view
premium subscription cable TV service authorized by the
CabteCARDTM access card. The CableCARD access card
is provided by your Iocat cable company. ANT-2 AUX can
receive over-the=air or non-scrambled cable signals.
2. IR EMITTER NetCommand ®
IR Emitters connected to these jacks are used by the
NetCommand system of the TV to control external analog
devices such as cable boxes, VCRs, DVDs, satellite
receivers and audio receivers. This system is also
coordinated with the TV Guide On Screen@ system for
the control of cable boxes and to activate the record
feature of your VCR. Either connection can be used for
NetCommand functions.
3. INPUT 1 and 2
(Audio/Video 1 and 2}
Inputs 1 and 2 can be used for the connection of a VCR,
Super VHS (S-VHS) VCR, DVD player, standard satellite
receiver or other A/V device to the TV. Please note that
if S-VIDEO and VIDEO are available for the input, you
must choose to connect only one. They cannot both be
connected at the same time.
4. COMPONENT 1, 2, and 3 Inputs
YPbPr (480i/480p/720pi1080i}
These inputs can be used for the connection of devices with
component video outputs, such as a DVD piayer, externaI
HDTV receiver, or compatible video game system. Please
see Appendix A for signal compatibility.
5. DVl AnaJog Audio
Uniike HDMI, DVl does not carry audio information on the
same cable. Use these analog stereo audio inputs when
using the HDMI input with a device that outputs [}"71instead
of HDMI, such as DVl output from a personal computer.
6. AUDIO OUTPUT, RECORD OUTPUT
AUDIO OUTPUT sends analog audio of the program
currently shown on the screen to an A/V surround sound
receiver or stereo system. Digital audio from digital
channels, FireWire@ (DTV LinkiEEE 1894) devices and
HDMI devices is converted to analog audio by the TV. If
you do not have a digital A/V receiver, this should be the
only audio connection between the TV and your analog
AiV receiver or stereo system.
RECORD OUTPUT sends analog audio and video to
a VCR for recording purposes. These signals may not
be the same as those of the program that is currently
16 Chapter 1. Television Overview
