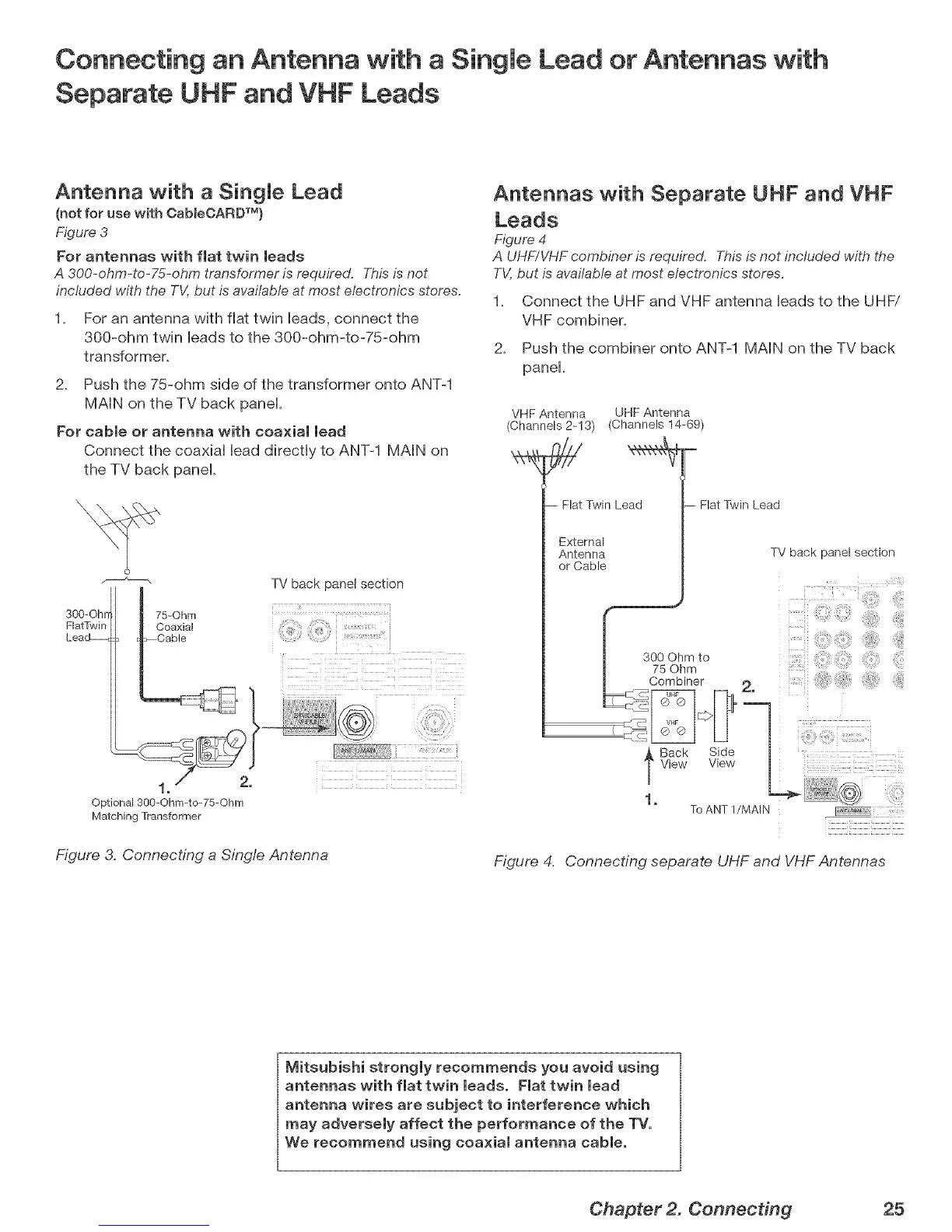

Connecting an Antenna with a Single Lead or Antennas with
Separate UHF and VHF Leads
Antenna with a SingJe Lead
(not for use with Cab[eCARDTM)
Figure 3
For antennas with flat twin leads
A 300-ohm-to-Z5-ohm transformer is required. This is not
included with the TV,but is available at most electronics stores.
1. For an antenna with fiat twin Heads,connect the
300-ohm twin Headsto the 300-ohm-to-75-ohm
transformer.
2. Push the 75-ohm side of the transformer onto ANT-1
MAiN on the TV back panel
For cable or antenna with coaxial lead
Connect the coaxiaH HeaddirectHy to ANT-1 MAiN on
the TV back panel
300-Ohrr
natTwin
Lead_
75=Ohm
Coaxial
Cable
TV back panel section
i
i
1, 2,
Optiona_ 300=Ohrn=to-75-Ohm
Matching Transformer
Figure 3. Connecting a Single Antenna
Antennas with Separate UHF and VHF
Leads
Figure 4
A UHF/VHF combiner is required. T,_isis not included with the
TV,but is available at most electronics stores.
1_ Connect the UHF and VHF antenna leads to the UHFi
VHF combiner.
2_ Push the combiner onto ANT-1 MAIN on the TV back
panel_
VHF Antenna UHF Antenna
(Channels 2=13) (Channels 14=69)
- Flat Twin Lead
External
Antenna
or Cable
-- Flat Twin Lead
TV back panel section
300Ohmto, iiliiiii
75 Ohm
Combiner 2.
__ Sack SideU
]'View View
To ANT 1/MAI N
Figure 4. Connecting separate UHF and VHF Antennas
Mitsubishi strongly recommends you avoid using
antennas with fist twin meads. Fiat twin mead
antenna wires are subject to interference which
may adversely affect the performance of the TV.
We recommend using coaxial antenna cable.
Chapter 2. Connecting 25
