ELECTRICAL SYSTEM
12-24

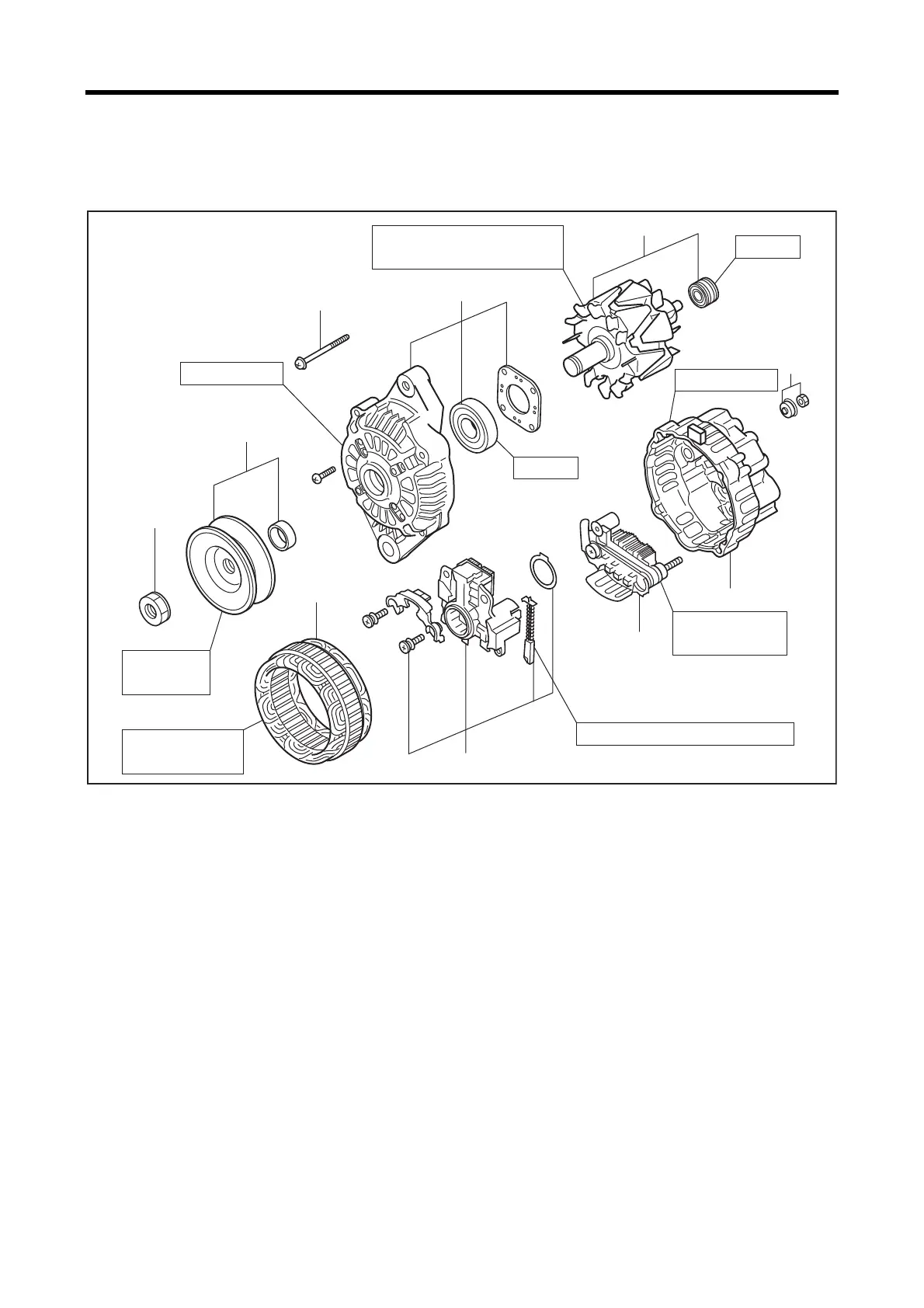

2.6 Disassembling, inspecting and reassembling alternator (12V-50A)
Disassembling, inspecting and reassembling alternator (12V - 50A)
Disassembling sequence
1 Nut 5 Rotor, bearing 9 Rectifier
2 Pulley, spacer 6 Stator 10 Nut set
3 Through bolt 7 Rear bracket
4 Front bracket, bearing 8 Regulator
1
2
3
4
6
9
7
8
10
5
Crack, damage
Rotation
Deformation
and damage
Broken wire
and ground of coil
Rotation
Crack, damage
Sliding state and wear of brushes
Dirt, damage and seizure of
slip ring, and coil resistance
Short cincuit and
open circuit
