13-12 Useful advice for emergencies
Fuse
No.
Amperage Protected circuit
A1 15A Cigarette lighter
A2 10A Audio system
A4 10A
Auxiliary power supply
(starter switch ACC circuit)
B1 15A Stop lamps
B2 10A Meter cluster
B3 15A Turn signal lamps
B4 10A
Auxiliary power supply
(circuit directly connected
to battery)
B5 10A Audio system
B6 10A Interior lamps
B7 30A Power window (driver’s)
B8 30A
Power window (assistant
driver’s)
B9 20A Engine control unit
B10 10A MVCU
B11 20A Heater mirror
Z16872

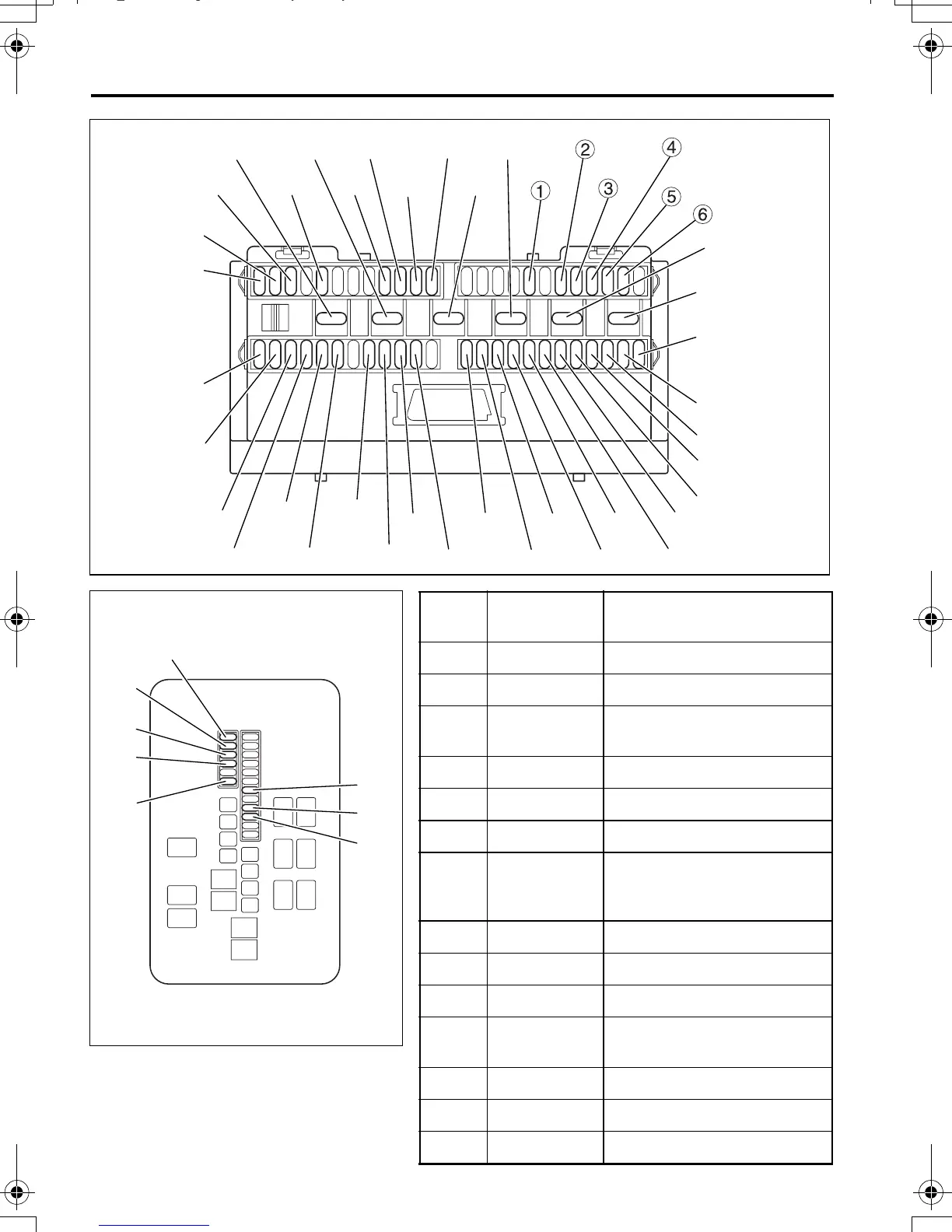

<Fuse box>
B16
B8
B9
M9
B11
B10
B12
B7
B6
B5
B4
B3
B2
B1
M8
M5
M4
M6
M11
M10
M3
M2
M1
B13
A4
A2
A1
S1
B14
B15
*
*
*
*
*
*
Z16873
<High-current fuse box>
B30
B29
B28
B27
B25
B36
B34
B33
