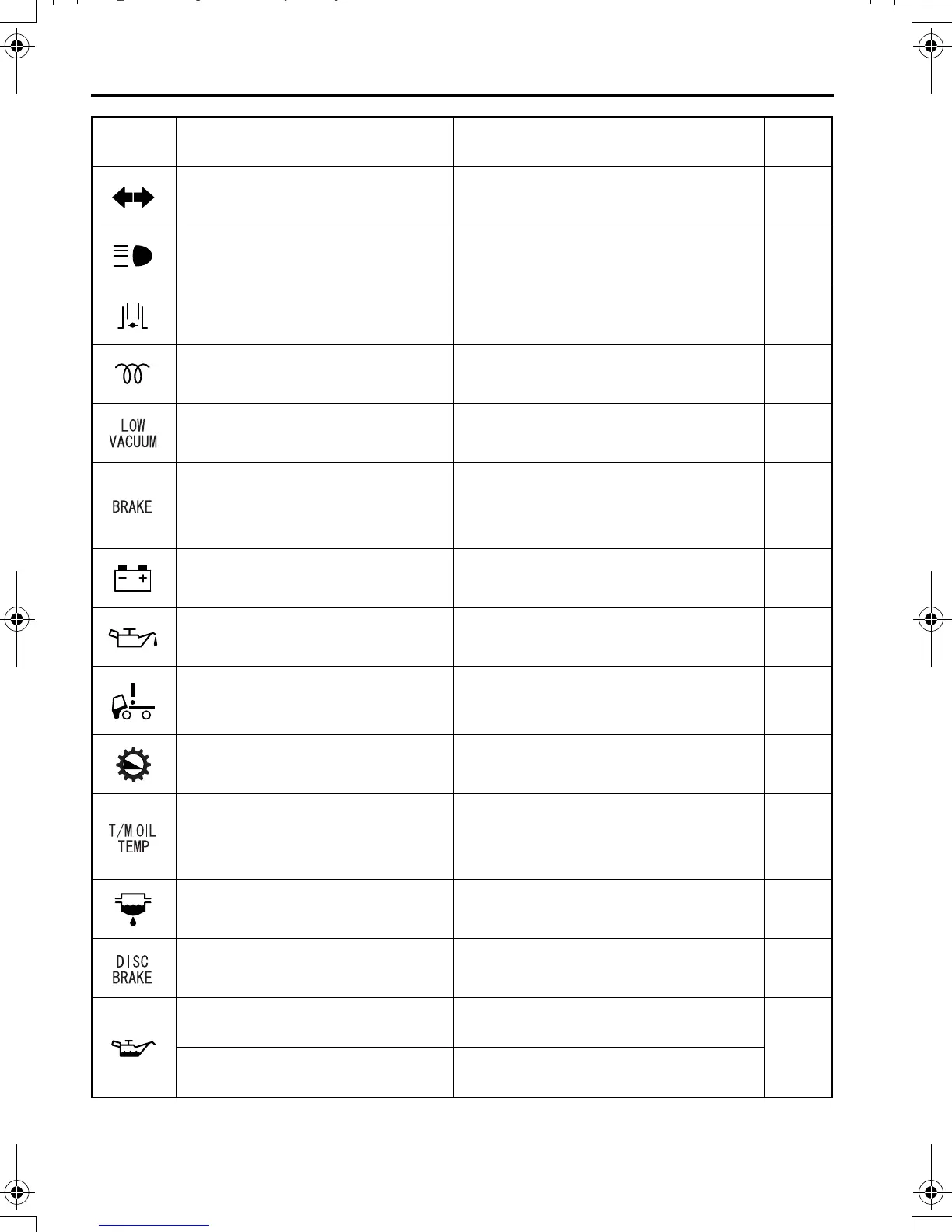

6-6 Instruments and warning lamps
Lamp
symbol
Warning/indicator lamp If illuminates or flashes
Ref.
page
Turn signal indicator lamp
Turn signal or hazard warning lamps
flashing
5-19
Headlamp high beam indicator
lamp
Headlamp high beams illuminated 5-19
Exhaust brake indicator lamp Exhaust brake activated 5-20
Engine preheat indicator lamp Engine being preheated 5-7
Vacuum pressure warning lamp
<Other than FE85>
Excessively low vacuum in vacuum
tank
6-8
Brake warning lamp
Brake fluid at an excessively low
level, too low power steering fluid
pressure on FE85 (*) or parking
brake activated
6-9
Charge warning lamp Problem in battery charging system 6-10
Engine oil pressure warning
lamp
Excessively low engine oil pressure 6-10
Cab lock warning lamp
<Vehicles other than Crew-cab
models>
Cab tilted or not locked down 12-9
LOW range indicator lamp <FG> Transfer LOW range gear selected 8-4
Automatic transmission fluid
temperature warning lamp
<Automatic transmission vehi-
cles>
Automatic transmission fluid exces-
sively hot
6-11
Fuel filter warning lamp Excessive water in fuel filter 6-11
Disc brake warning lamp
<Vehicle with disc brakes>
Disc brake pad worn 6-11
(Green) Engine oil level warning
lamp
Engine oil level normal
12-24
(Amber) Engine oil level warn-
ing lamp
Low engine oil level
