NOTE:
Illumination of any warning lamp marked (*) is accompanied by sounding of a buzzer.
The warning lamps shown below come on when the starter switch is turned from the “ACC”
position to the “ON” position but almost immediately go off.
(Red) Engine control warning
lamp
Abnormality in engine control system
or DPF system
6-12
(Amber) Engine control warning
lamp
Abnormality in exhaust gas control
system
4WD indicator lamp <FG>
Four-wheel drive (4WD) mode
selected
8-3
ABS warning lamp
Fault in antilock braking system
(ABS)
6-13
Automatic transmission warning
lamp <Automatic transmission
vehicles>
Fault in automatic transmission elec-
tronic control system
6-13
Daytime running light indicator
lamp
Headlamps (low-beam) illuminated
by daytime running light system
5-19
Engine overheating warning
lamp
Engine overheating 6-14
Cruise control indicator lamp
<Vehicles with cruise control>
Cruise control activated 5-22
Vehicle control warning lamp Problem in electric control system 6-15
DPF indicator lamp
Slow flashing (1-
second interval)
DPF loaded with
much PM
5-30
Fast flashing (0.3-
second interval)
Continuous illumi-
nation
Parked regener-
ation of DPF in
progress
Lamp
symbol
Warning lamp Operation
Brake warning lamp
Goes off when engine is started (except
if parking brake lever is pulled). <FE85>
Vacuum pressure warning lamp
<Other than FE85>
Goes off when engine is started.
Lamp
symbol

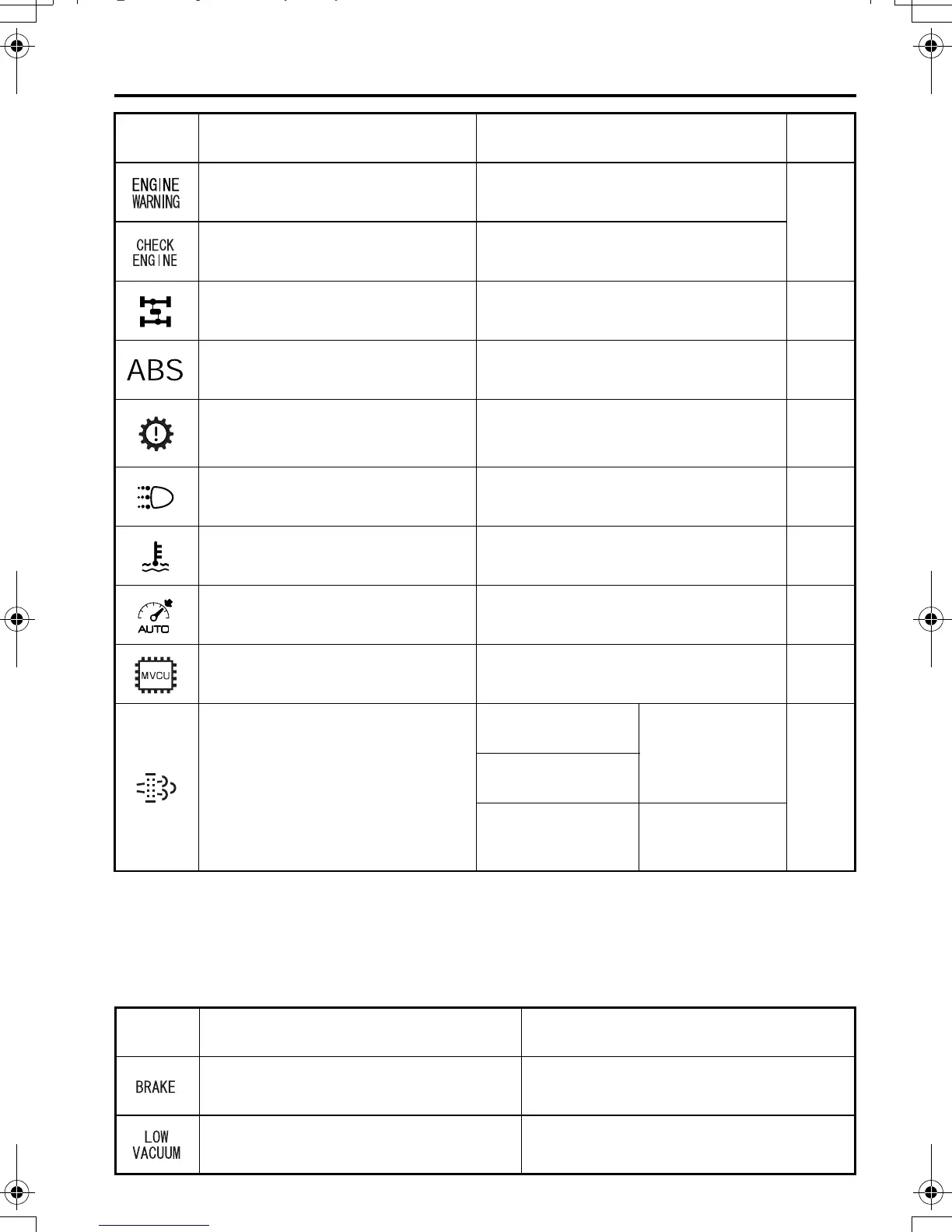

Warning/indicator lamp If illuminates or flashes
Ref.
page
