MITSUBISHI ELECTRIC 2033C SERIES UPS
MITSUBISHI
ELECTRIC
2033C SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
2-2

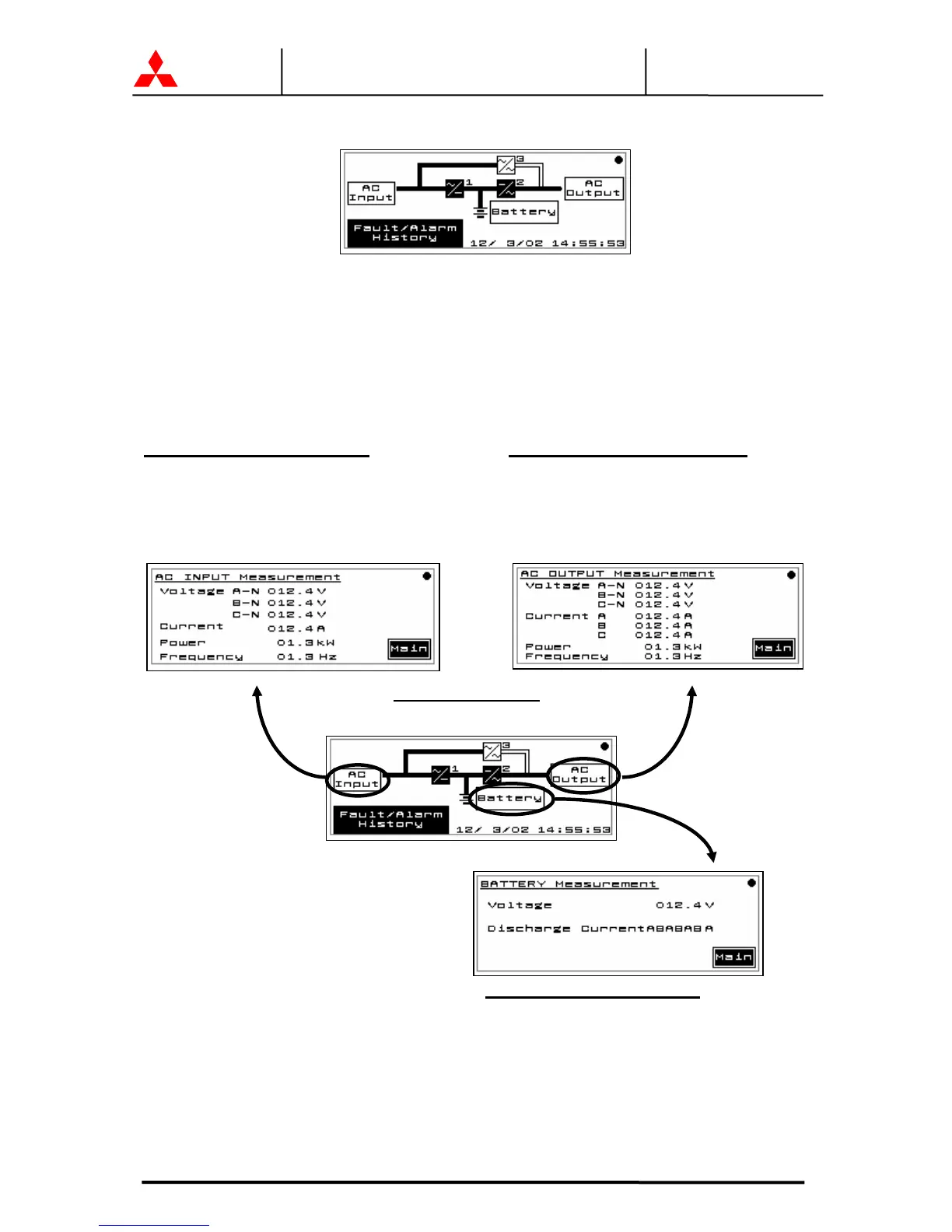

FIGURE 2.2 MAIN MENU Screen
MEASUREMENT SCREENS
Pressing the MEASUREMENT Screen Touch icons on the MAIN MENU Screen will display
each specific MEASUREMENT Screen. Each MEASUREMENT Screen displays specific system
measurement data as shown in Figure 2.3.
FIGURE 2.3 MEASUREMENT Screens
Each MEASUREMENT Screen includes a MAIN Menu Screen Touch Icon. On pressing this
MAIN Touch icon, the display returns to the MAIN MENU Screen.
AC Output Measurement Screen
Output line to neutral rms voltage (A-N, B-N, C-N)
Output rms current of each phase
Output Real KW Power
Output Frequency
AC Input Measurement Screen
Input line to neutral rms voltage (A-N, B-N, C-N)
Input Current
Input Real KW Power
Input Frequency
Battery Measurement Screen
DC Bus Voltage
Battery Charge/Discharge Current
MAIN MENU Screen
