2033C SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
3
-
8
MITSUBISHI ELECTRIC 2033C SERIES UPS

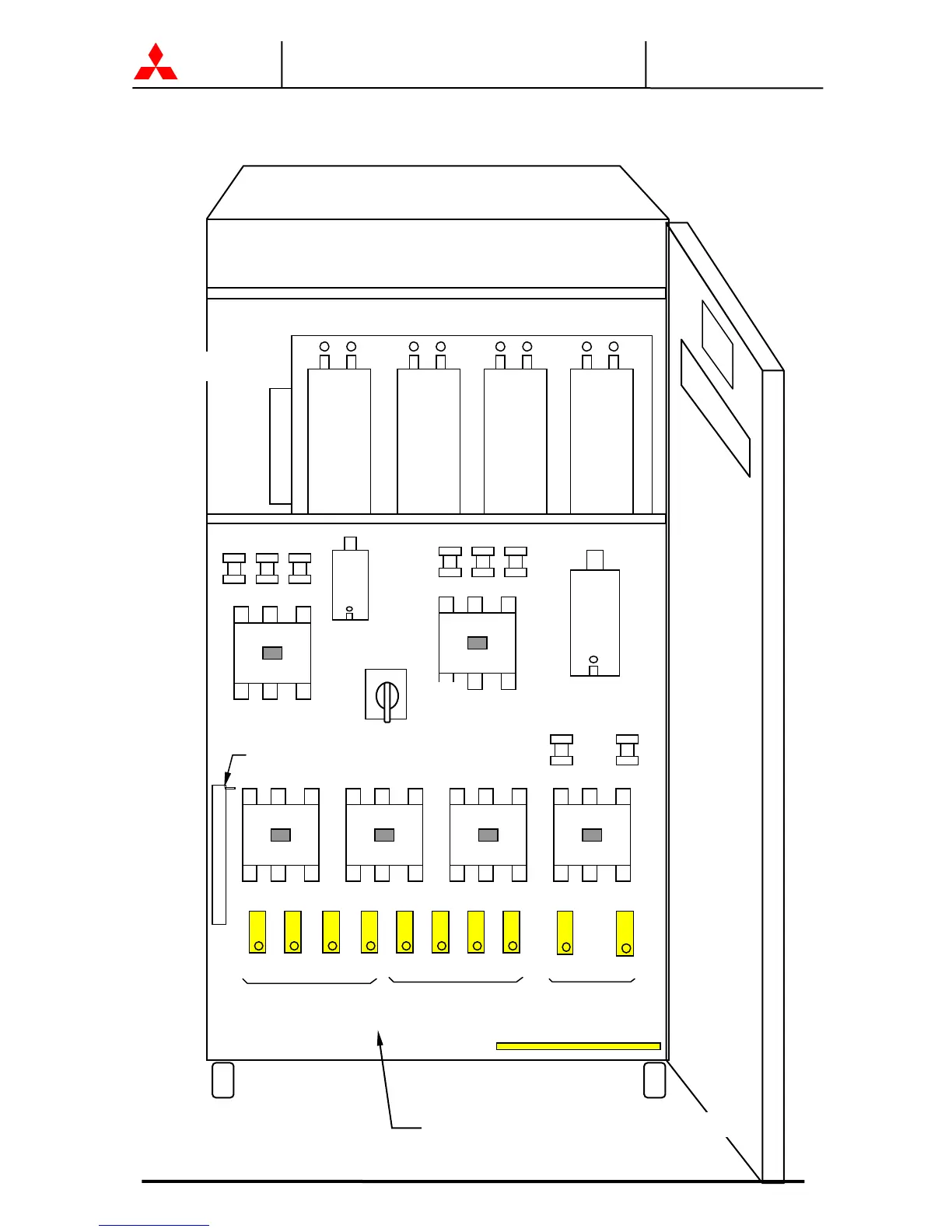

FIGURE 3.5
Input/Output Power Terminals (40kvA - 50kVA)
A
B
C
N
A
B
C
N
N
P
(AC
INPUT)
(AC
OUTPUT) (DC
INPUT)
Grounding bar
MBS
BYPASS
TRANSFER
NORMAL
RYDR-X
Control printed circuit boards
Converter & Inverter Unit
Coolin
g
fan
Input/Output Power Terminal Designation
H
OLE DIAMETER:
0.47”
(
12 MM
)
37
39
Table of Contents
Default Chapter
3
Table of Contents
3
List of Tables
4
How to Use this Manual
6
1 Introduction
7
General
9
Definitions
10
Overview
11
Figure 1.1 Single Line Diagram-Normal Operation
11
Figure 1.2 Single Line Diagram-Bypass Operation
12
Figure 1.3 Single Line Diagram-Battery Operation
13
Figure 1.4 Single Line Diagram - UPS on Maintenance Bypass Operation
13
FIGURE 1.5A UPS Parts Location(7.5-20Kva)
15
FIGURE 1.5B UPS Parts Location(30Kva)
16
FIGURE 1.5C UPS Parts Location(40,50Kva)
17
Figure 1.6 Display PCB DPAU-72
17
Figure 1.7 External I/F PCB RYDR-X
17
Figure 1.8 Main Control PCB UPFR-K
18
Specifications
20
Table 1.1 Power Specifications
20
Table 1.2 UPS Module Information
20
Table 1.3 Detail of Specifications
21
2 Operation Controls and Indicators
23
Lcd Touch Panel Monitor Display and Keypad
23
Figure 2.1 Operation/Display Panel
23
Figure 2.2 MAIN MENU Screen
24
External Signal Terminal Block
27
Figure 2.6 External Signal Terminal Block
27
Figure 2.7 Control Wiring for External Contacts
28
External Communication Connector
30
Figure 2.9 External Communication Connector
30
3 Installation and Operation
31
Transportation and Installation
31
Handling
31
Table 3.1 How to Transport and Install the System
31
Figure 3.1 Handling
31
Installation Procedure
32
Procedure for Cable Connections
33
Table 3.4 Recommended Cable Size and Torque Requirements
34
Table 3.5 Crimp Type Compression Lug
34
FIGURE 3.4 Input/Output Power Terminals (30Kva)
37
Operating Procedures
39
Figure 3.6 EPO Button
39
Maintenance Bypass Set-Up Procedures
40
4 Response to Ups Failure
41
5 Parts Replacement
42
6 Fault Codes
43
7 Warranty & out of Warranty Service
47
4
