2 Setting the Operating Environment
PC settings and web browser settings that are required for using a web browser to monitor air conditioner units
and perform operations are explained in the following pages.
2-1 Setting the PC IP Address
Set an IP address on the PC that enables AG-150A to connect via a web browser. For instance, if the
AG-150A IP address is [192.168.1.1], the PC IP address will need to belong to the same system
[192.168.1.101].
If the AG-150A is connected to an existing LAN, ask the LAN administrator to decide what PC IP address to
use.
Note: When using a AG-150A dedicated LAN, it is recommended that the AG-150A main unit be given an IP address
within the range [192.168.1.1] - [192.168.1.40] and the PCs that will be connected to the AG-150A be given an IP
address within the range [192.168.1.101] - [192.168.1.150]

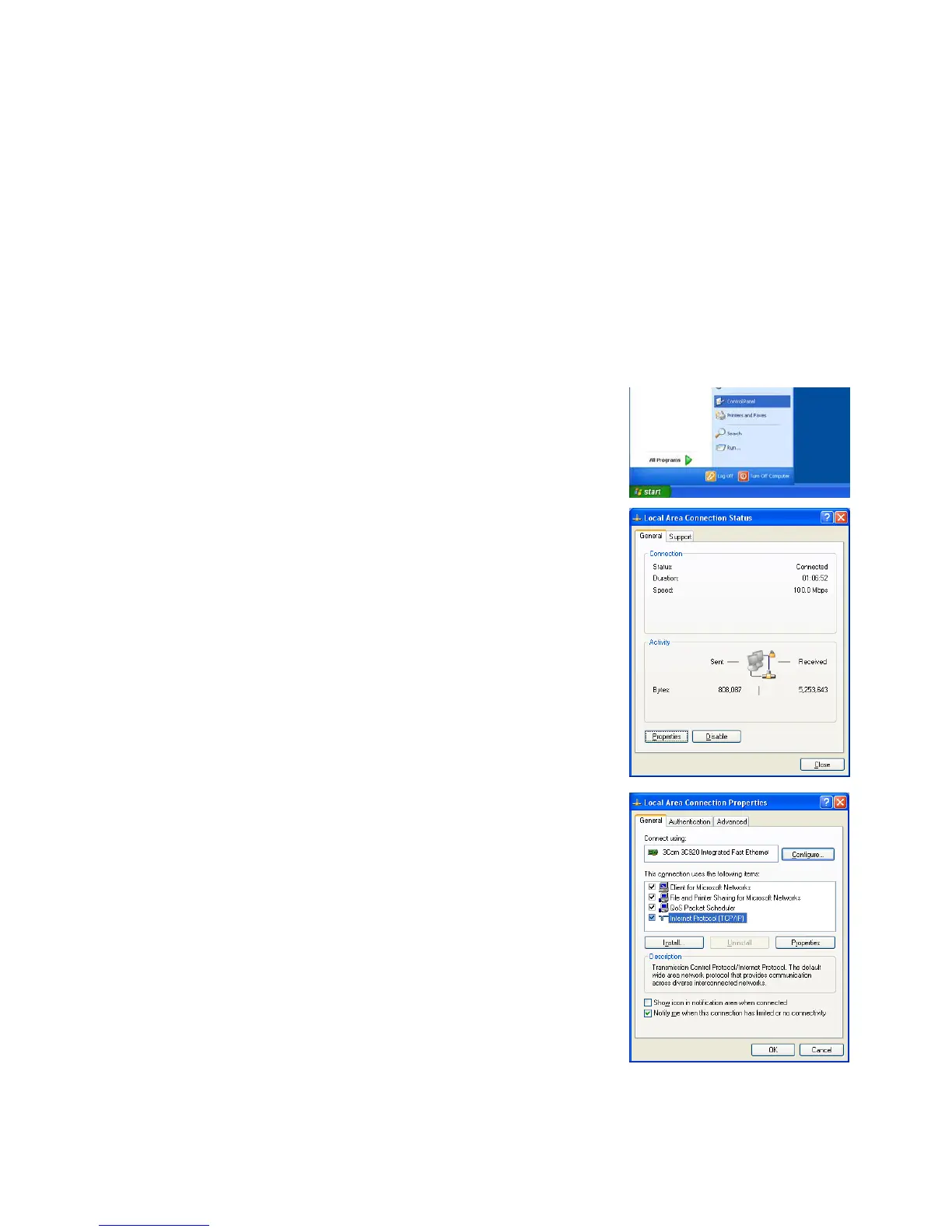

(1) Click on [Control Panel] under [Start] to open the Control Panel.
(2) In the Control Panel window, double click [Network and Dial-up
Connections] and the Network and Dial-up Connections window will
open. Double click on [Local Area Setting] and the [Local Area
Connection Status] dialog will open. Click [Properties].
(3) In the [Local Area Connection Properties] dialog, click [Internet
Protocol] to select it and click the [Properties] button.
To Next Page
