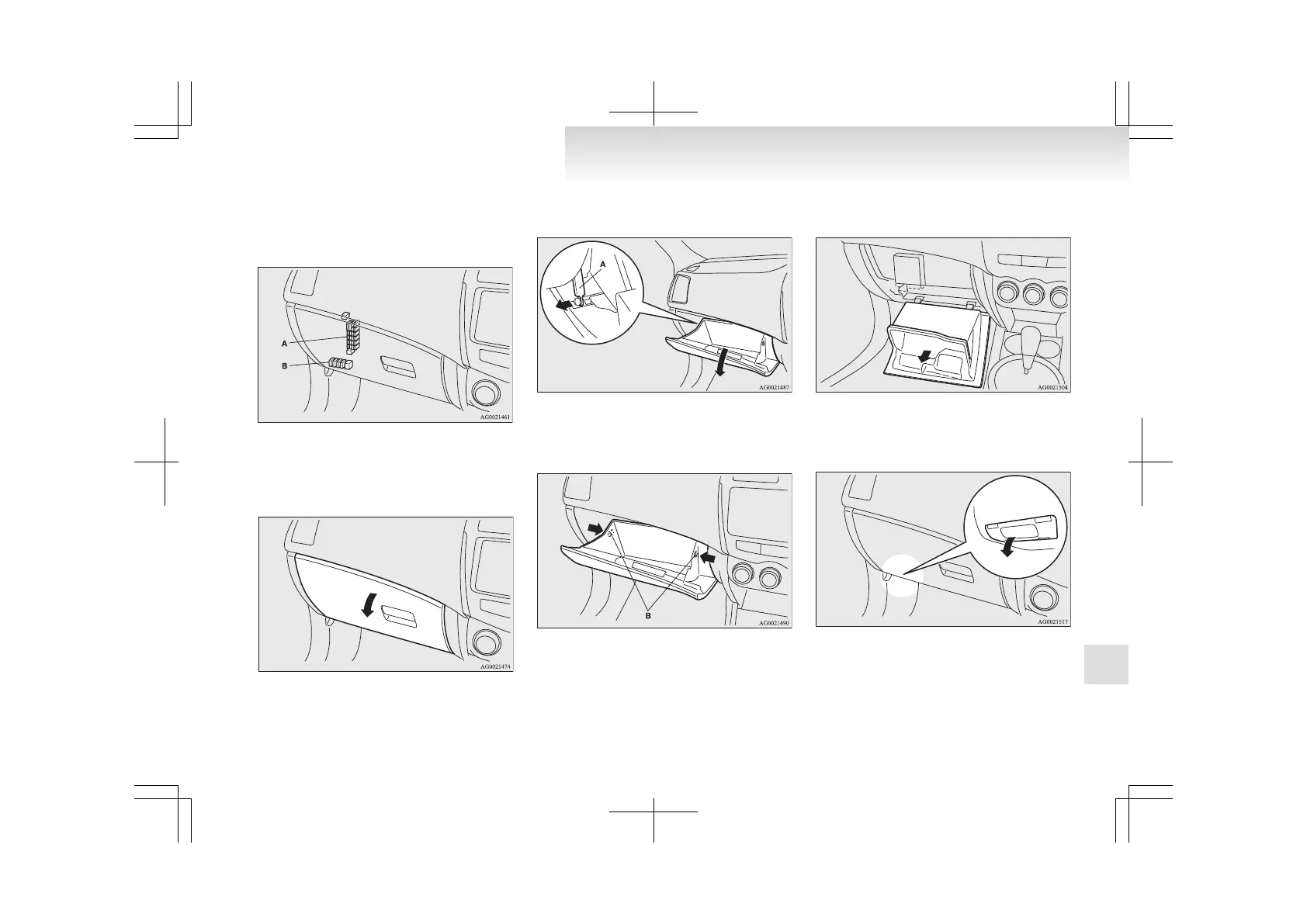

Passenger compartment (RHD vehicles)
The fuse boxes in the passenger compartment are
located behind the glove box at the position shown
in the illustration.
A- Main fuse block
B-
Sub fuse block
Main fuse block
1. Open the glove box.
2. Move the rod (A) on the left side of the
glove box to the left side of the box.
3. While
pressing the side of the glove box, un-
hook the left and right hooks (B) and lower
the glove box.
4. Remove the glove box fastener, and then re-
move the glove box.
Sub fuse block
1. Remove the cover from the bottom of the
glove box.
Maintenance
8-19
