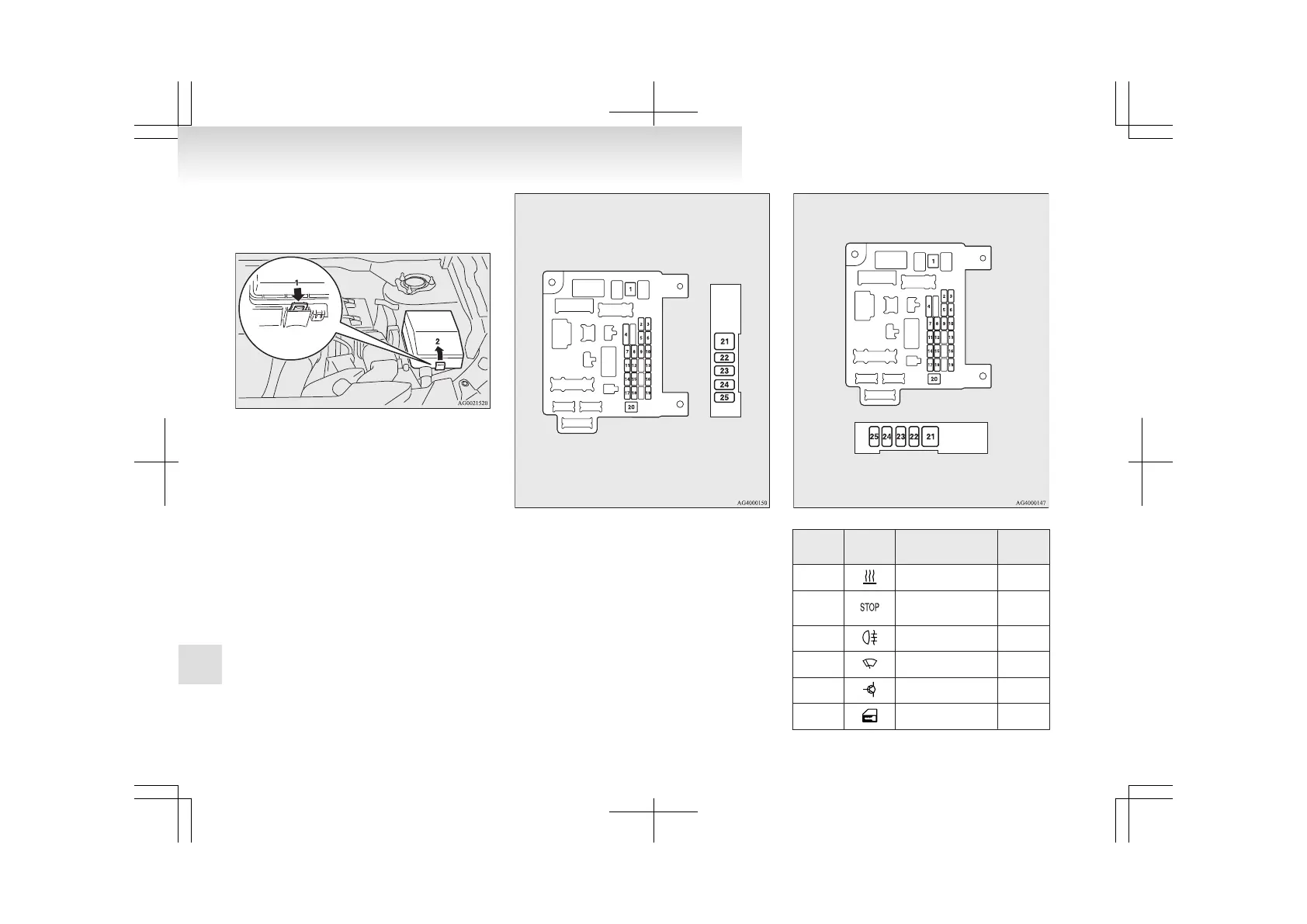

Engine compartment

In the engine compartment, the fuse block is loca-

ted as shown in the illustration.

1- Push the knob.

Remove the cover.

Fuse load capacity

E01007700482

The fuse capacity and the names of electrical sys-

tems

protected by the fuses are indicated on the in-

side of the fuse lid (LHD vehicles), the inside of

the glove box (RHD vehicles) and inside of the

fuse block cover (inside of the engine compartment).

Passenger compartment fuse location table

NOTE

Spare fuses are provided on the lid of the

fuse block in the engine compartment. Al-

ways use a fuse of the same capacity for re-

placement.

Passenger compartment fuse location (LHD)

Main fuse block Sub fuse block

Passenger compartment fuse location (RHD)

Sub fuse block

Main fuse block

No. Symbol Electrical system

Capaci-

ties

1 Heater 30 A*

Stop lamps

(Brake lamps)

15 A

3 Rear fog lamp 10 A

4 Windscreen wipers 30 A

5 Option 10 A

6 Door locks 20 A

Maintenance

8-20
