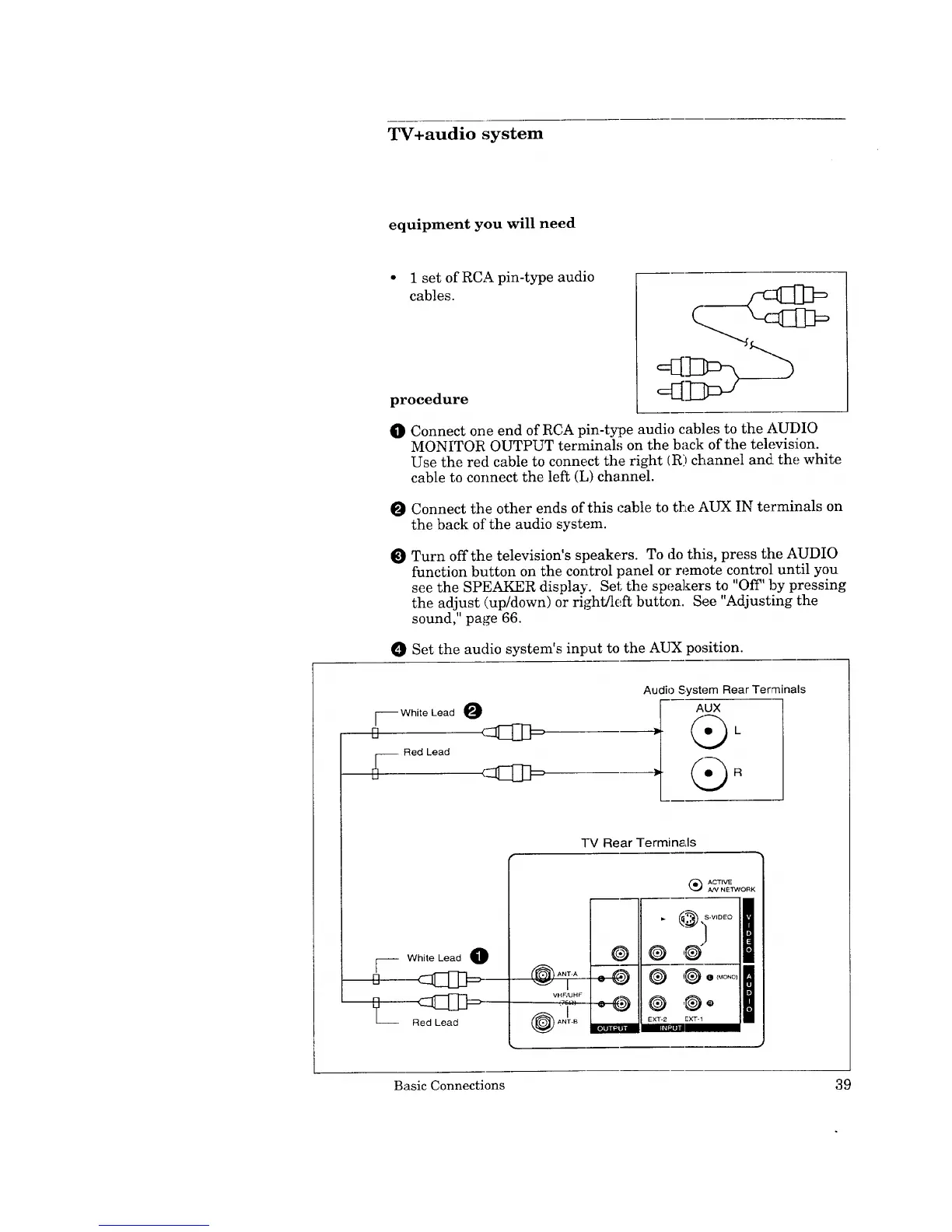

TV+audio system
equipment you will need
• 1 set of RCA pin-type audio
cables.
procedure
0
Connect one end of RCA pin-type audio cables to the AUDIO
MONITOR OUTPUT terminals on the back of the television.
Use the red cable to connect the right (R) channel and the white
cable to connect the left (L) channel.
O Connect the other ends of this cable to the AUX IN terminals on
the back of the audio system.
O Turn off the television's speakers. To do this, press the AUDIO
function button on the control panel or' remote control until you
see the SPEAKER display'. Set the speakers to "Off' by pressing
the adjust (up/down) or right/left button. See "Adjusting the
sound," page 66.
Set the audio system's input to the AUX position.
Audio System Rear Terminals
F_White Lead O _[ AUX
[_i-_ RedLead _ _ _._ R
TV Rear Terminals
-- White Lead 0
D _
?
Red Lead
(_ ACTIVE
AN NETWORK
. @,iv,D,o
@ @ ,@"
'_t =@ ® o......
ANT-B EXT-2 EXT-1
EEllIIIL _ _1_11
Basic Connections 39
