ENGLISH
4,
DUCTS
The
power
cord
and
connecting
cords
pass
through
this
ducts.
5.
HANDLE
MOUNTING
SCREW
HOLES
These
holes
are
provided
for
mounting
the
handles.
For
more
details,
see
page
5.
6.
ELECTROLYTIC
CAPACITORS
7.
POWER
INDICATOR
This
indicator
illuminates
when
the
POWER
switch
is
placed
in
the
ON
position.
8.
POWER
(Power
Switch)
This
switch
is
for
turning
this
unit
on
and
off.
When
in
the
ON
position,
the
power
indicator
is
illumi-
nated.

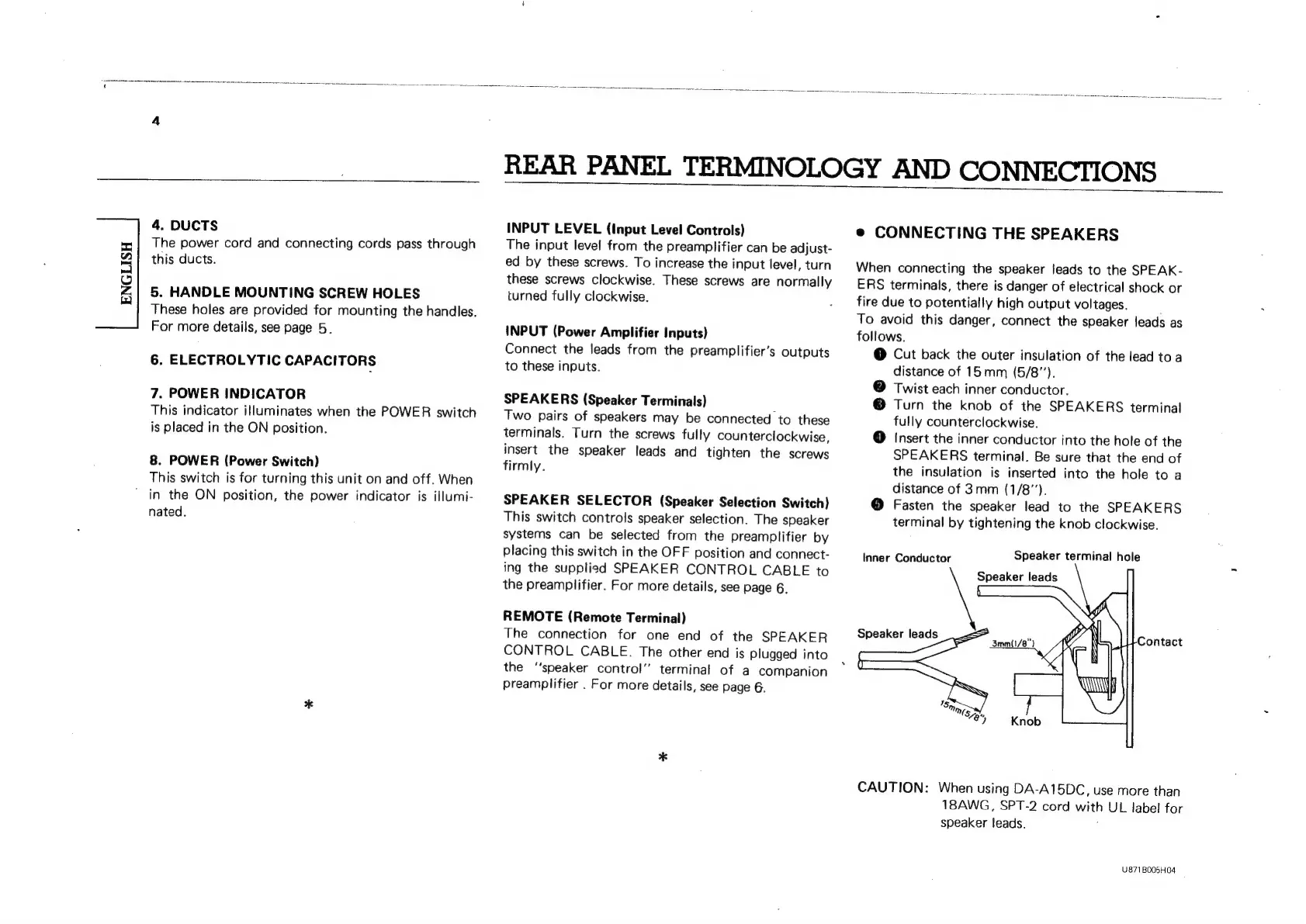

REAR
PANEL
TERMINOLOGY
AND
CONNECTIONS
INPUT
LEVEL
(input
Level
Controls)
The
input
level
from
the
preamplifier
can
be
adjust-
ed
by
these
screws.
To
increase
the
input
level,
turn
these
screws
clockwise.
These
screws
are
normally
turned
fully
clockwise.
INPUT
(Power
Amplifier
Inputs)
Connect
the
leads
from
the
preamplifier’s
outputs
to
these
inputs.
SPEAKERS
(Speaker
Terminals)
Two
pairs
of
speakers
may
be
connected
to
these
terminals.
Turn
the
screws
fully
counterclockwise,
insert
the
speaker
leads
and
tighten
the
screws
firmly.
SPEAKER
SELECTOR
(Speaker
Selection
Switch)
This
switch
controls
speaker
selection.
The
speaker
systems
can
be
selected
from
the
preamplifier
by
placing
this
switch
in
the
OFF
position
and
connect-
ing
the
supplied
SPEAKER
CONTROL
CABLE
to
the
preamplifier.
For
more
details,
see
Page
6.
REMOTE
(Remote
Terminal)
The
connection
for
one
end
of
the
SPEAKER
CONTROL
CABLE.
The
other
end
is
plugged
into
the
‘‘speaker
control’
terminal
of
a
companion
preamplifier
.
For
more
details,
see
page
6.
e
CONNECTING
THE
SPEAKERS
When
connecting
the
speaker
leads
to
the
SPEAK-
ERS
terminals,
there
is
danger
of
electrical
shock
or
fire
due
to
potentially
high
output
voltages.
To
avoid
this
danger,
connect
the
speaker
leads
as
follows.
@
Cut
back
the
outer
insulation
of
the
lead
to
a
distance
of
15mm
(5/8”’).
@
Twist
each
inner
conductor.
@
Turn
the
knob
of
the
SPEAKERS
terminal
fully
counterclockwise.
@
Insert
the
inner
conductor
into
the
hole
of
the
SPEAKERS
terminal.
Be
sure
that
the
end
of
the
insulation
is
inserted
into
the
hole
to
a
distance
of
3mm
(1/8’’).
@
Fasten
the
speaker
lead
to
the
SPEAKERS
terminal
by
tightening
the
knob
clockwise.
Inner
Conductor
Speaker
terminal
hole
Speaker
leads
Speaker
leads
CAUTION:
When
using
DA-A15DC,
use
more
than
18AWG,
SPT-2
cord
with
UL
label
for
speaker
leads.
U871B005H04
