Mitsubishi DD-4021 - Waveforms

E5540WF
1-8-1
1-8-2

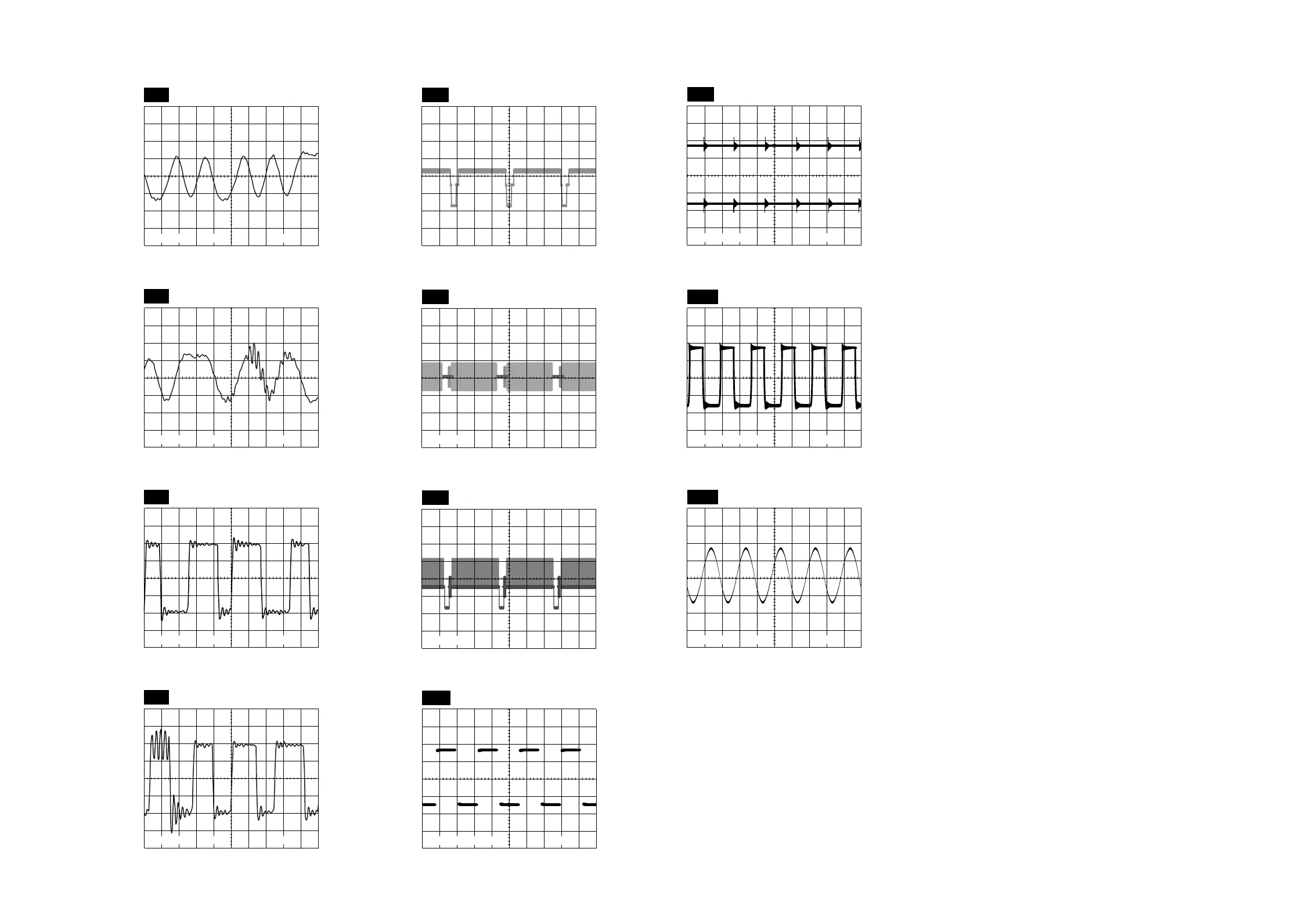

WF1
MONREF
Pin 5 of IC001
0.2V 0.2usec
WF2
MONREP
Pin 6 of IC001
0.2V 0.2usec
WF3
NRZP
Pin 117 of IC300
0.2V 0.2usec
WF4
NRZN
Pin 118 of IC300
0.2V 0.2usec
NOTE:
Input
CD: 1KHz PLAY
(WF8~WF11)
DVD: BLUE BACK (STOP MODE)
(WF1~WF7)
WF8
PCM-LRCK
Pin3 of IC801
1V 0.2usec
WF11
AUDIO-L
Pin7 of IC801
1V 0.5msec
WF10
PCM-MCLK
Pin1 of IC801
1V 0.2usec
WF9
Pin2 of IC801
1V 0.2usec
PCM-DATA0
WF6
Pin33 of IC601
0.2V 20usec
VIDEO-C
WF7
Pin34 of IC601
0.2V 20usec
VIDEO
WAVEFORMS
WF5
VIDEO-Y
Pin32 of IC601
0.2V 20usec
