F9Q ENGINE – Timing Belt
11A-4-5

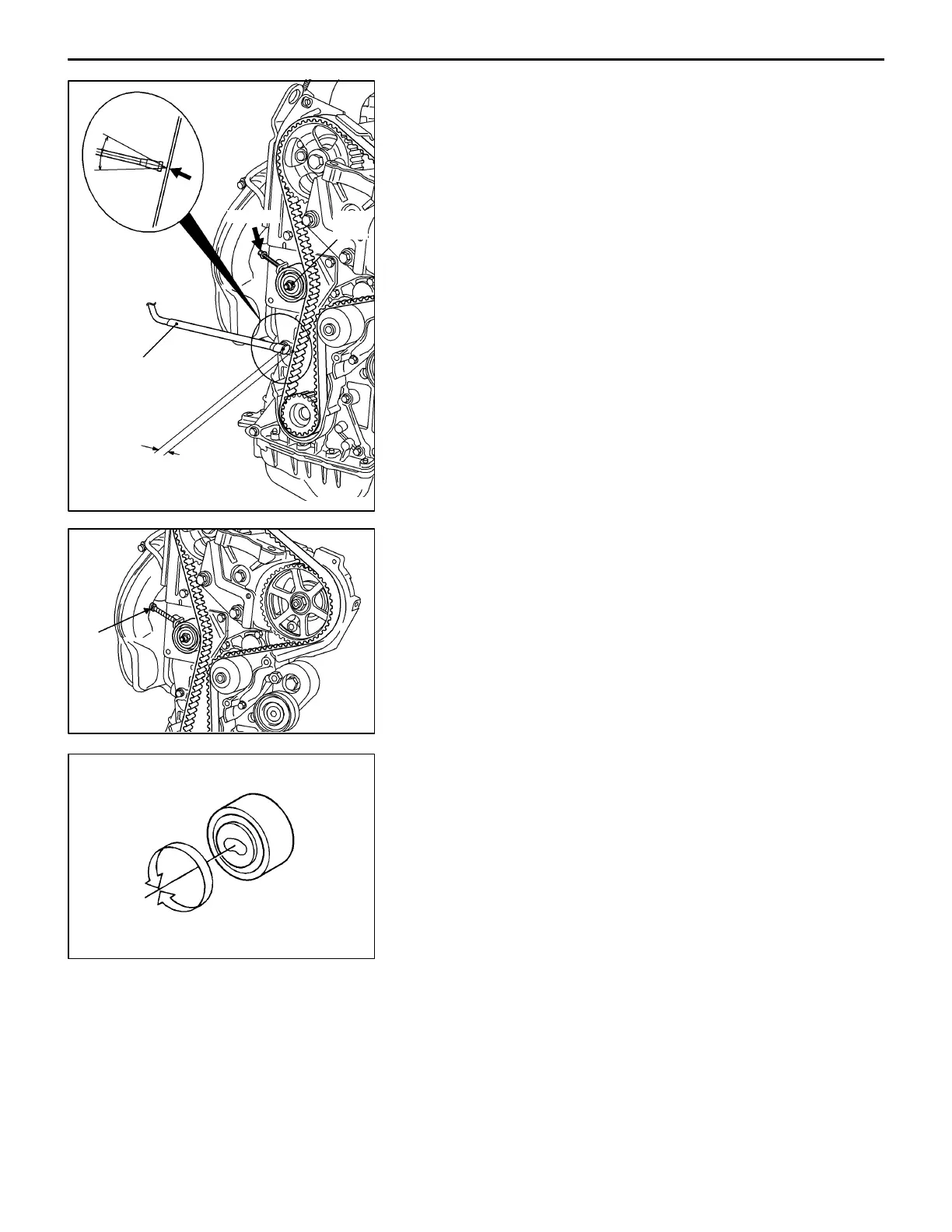

(25)Connect the special tool (MB991704) to the MUT-II and
the microphone (MB991668).
(26)Check the belt tension. If the belt tension is otherwise
adjust it again.
Standard value: 90 ± 15 Hz
(27)Tighten the tension lock nut to a torque of 50 Nm.
NOTE
The tension lock nut must be torque tightened to avoid
any slackening which could damage the engine.
(28)Removal tool to MUT-II.
(29)Remove bolt E on the tensioner support.
INSPECTION
TIMING BELT TENSIONER AND IDLER
(1) Check that the tensioner and idler rotate smoothly without
excessive play or abnormal noise. Replace them with
new ones if necessary.
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
Y6035AJ
MB991668
(Microphone)
Lock
nut
10 – 20 mm
M6 bolt
15_
15_
PWEE0001-A
E
Mar. 2001Mitsubishi Motors Corporation RevisedPWEE0001-A
E
Mar. 2001Mitsubishi Motors Corporation Revised
REN0169
E
REN0172
