F9Q ENGINE – Injection Pump and Fuel InjectorF9Q ENGINE – Injection Pump and Fuel Injector
11A-6-2
REMOVAL SERVICE POINT

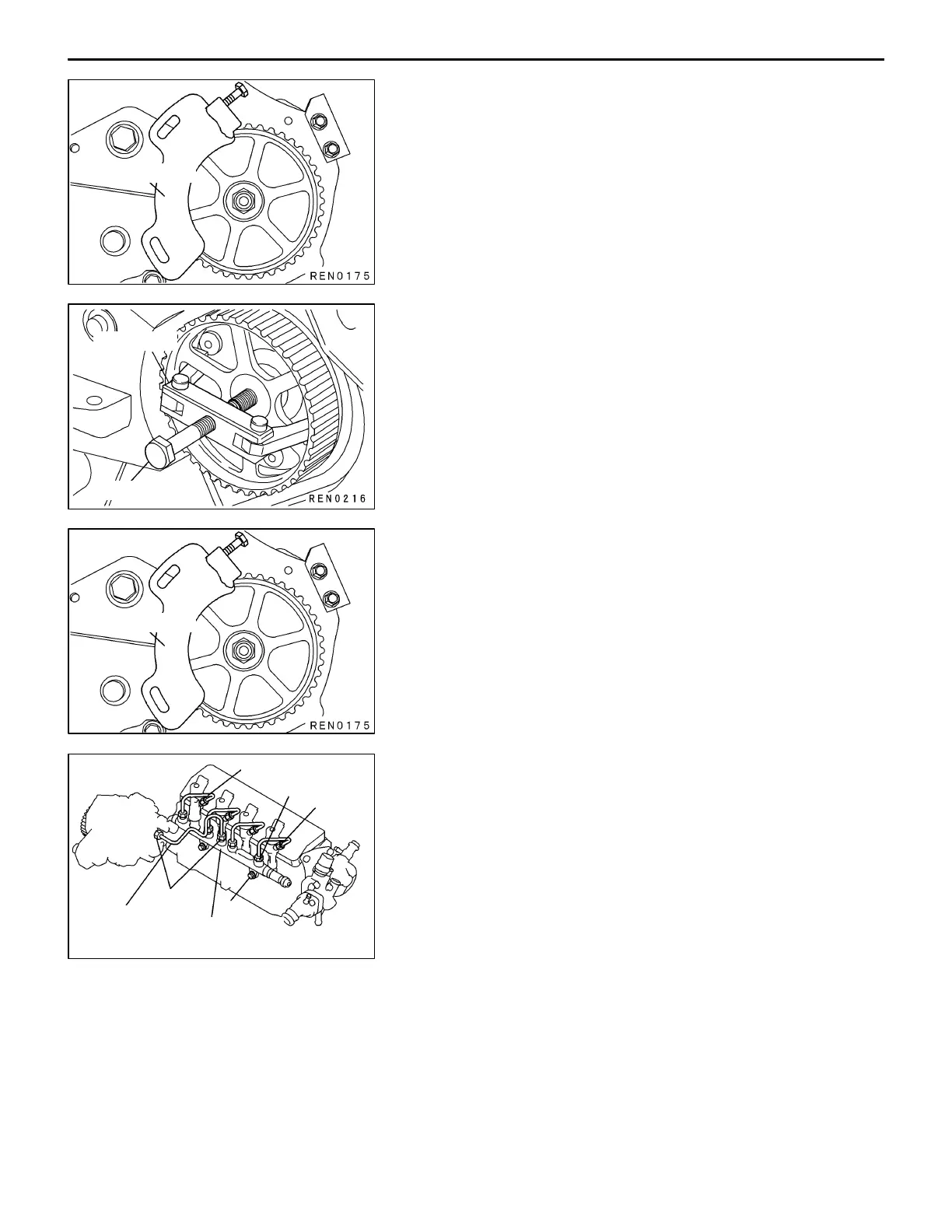

AA" INJECTION PUMP SPROCKET REMOVAL
(1) Set the special tools on the injection pump sprocket.
(2) For preparatory work, replace the center bolt of the special
tool MH062464 with a sufficiently longer bolt.
(3) Remove the injection pump sprocket using the special
tool.
INSTALLATION SERVICE POINT
"AA INJECTION PUMP SPROCKET INSTALLATION
(1) Using the special tools shown in the illustration, lock the
injection pump sprocket in position.
(2) Tighten the injection pump sprocket nut to the specified
torque.
"BA HIGH PRESSURE PIPE / FUEL INJECTION RAIL
INSTALLATION
(1) Position the fuel injection rail and finger tighten the
mounting bolts (the rail should be floating).
(2) Position all the high pressure pipes and finger tighten
then.
Tighten all the high pressure injection pipe connection
(on the injector side A then on the fuel injection rail side
B).
(3) Tighten the high pressure pipe C.
(4) Tighten the fuel injection rail bolts D.
MB996043
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
PWEE0001-A
E
Mar. 2001Mitsubishi Motors Corporation Revised
Bolt
MH062464
MB996043
REN0178
High pressure pipe
High pressure
pipe
Fuel injection
rail
B
A
C
D
