COOLING SYSTEM
Removal and Installation
Fan Belt Removal
Start by:
Remove the radiator cover.
Suggestion for Removal
(1) Loosen the tension pulley lock bolt by three or four
turns. If the bolt is loosened insufficiently, the tension
pulley will not be moved.
Note: Do not loosen the lock bolt to such an extent that the
bolt would be removed.
(2)Move the tension pulley fully toward the fan, then
remove the belt.

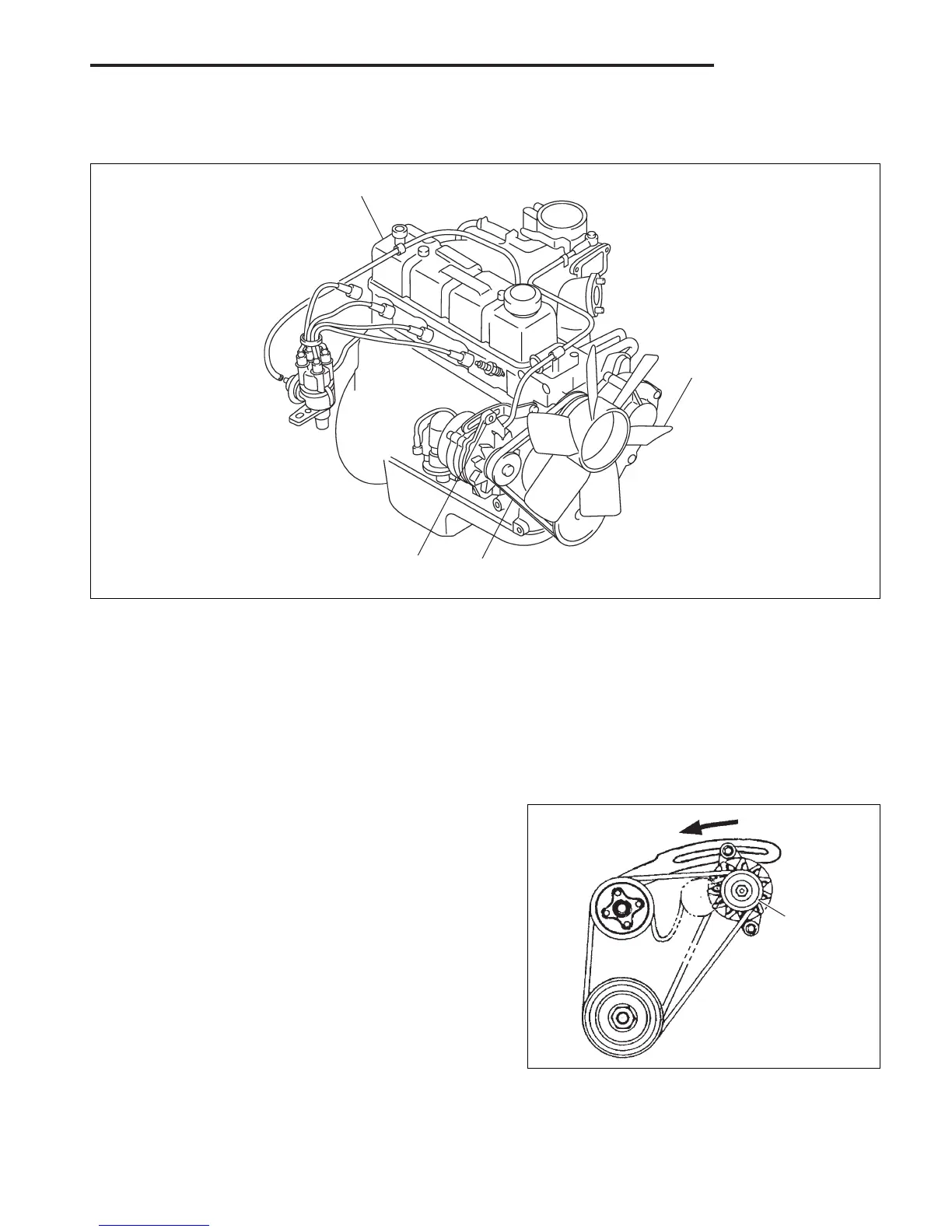

Engine
Fan
2
1
209612
Sequence
1Tension pulley assembly, Bolt
2Fan belt
Fan
Tension
pulley
209613
