Chapter1: GettingtoKnowYourVCR

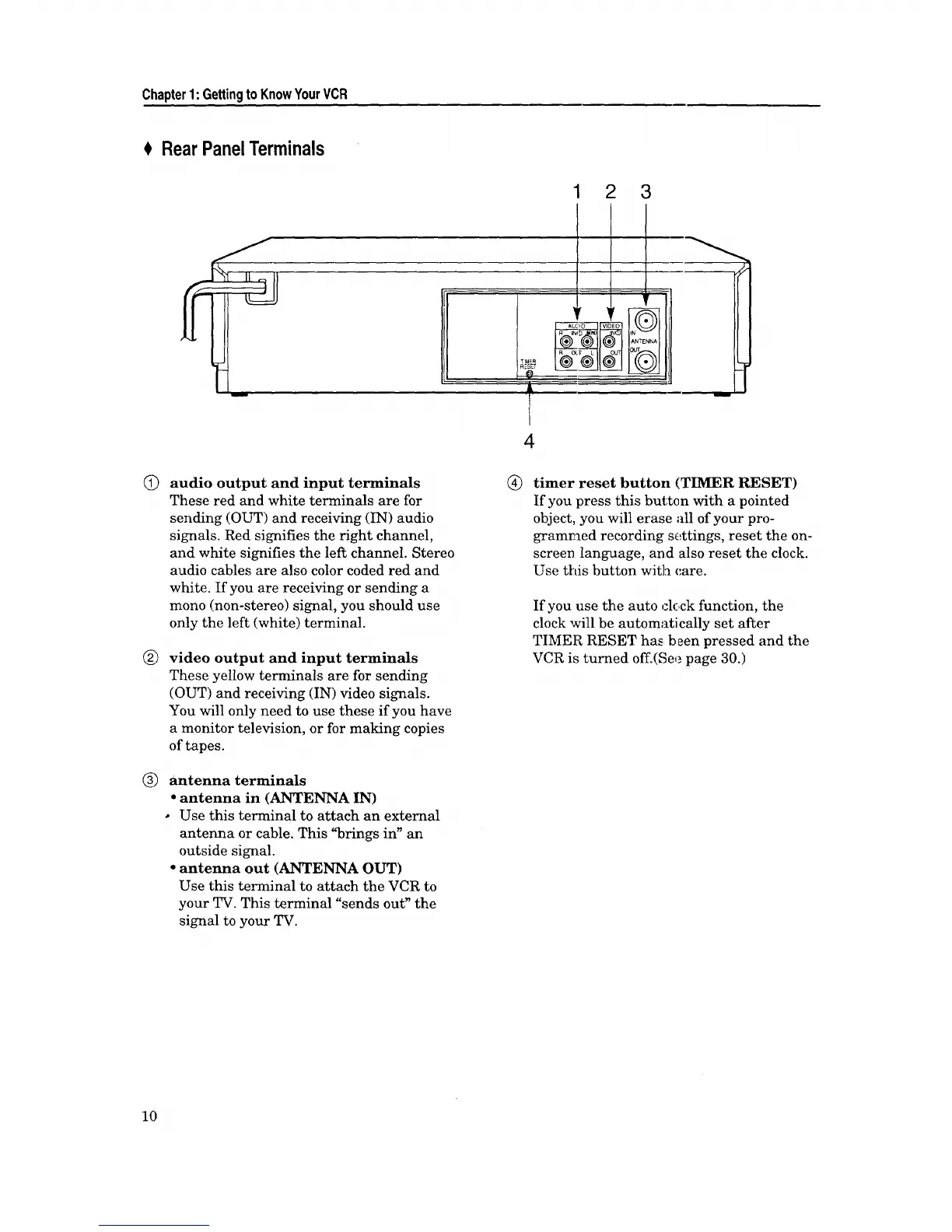

RearPanelTerminals
1 2 3
Q
®
®
TMER
R-2SET
&
i
AUDIO VIDEO
e
4
audio output and input terminals
These red and white terminals are for
sending (OUT) and receiving (IN) audio
signals. Red signifies the right channel,
and white signifies the left channel. Stereo
audio cables are also color coded red and
white. If you are receiving or sending a
mono (non-stereo) signal, you should use
only the left (white) terminal.
video output and input terminals
These yellow terminals are for sending
(OUT) and receiving (IN) video signals.
You will only need to use these if you have
a monitor television, or for making copies
of tapes.
antenna terminals
• antenna in (ANTENNA IN)
• Use this terminal to attach an external
antenna or cable. This "brings in" an
outside signal.
• antenna out (ANTENNA OUT)
Use this terminal to attach the VCR to
your TV. This terminal "sends out" the
signal to your TV.
timer reset button (TIMER RESET)
If you press this button with a pointed
object, you will erase all of your pro-
gramr.led recording settings, reset the on-
screen language, and also reset the clock.
Use this button with <',are.
If you use the auto clock function, the
clock will be automatically set after
TIMER RESET has been pressed and the
VCR is turned off.(See page 30.)
10
