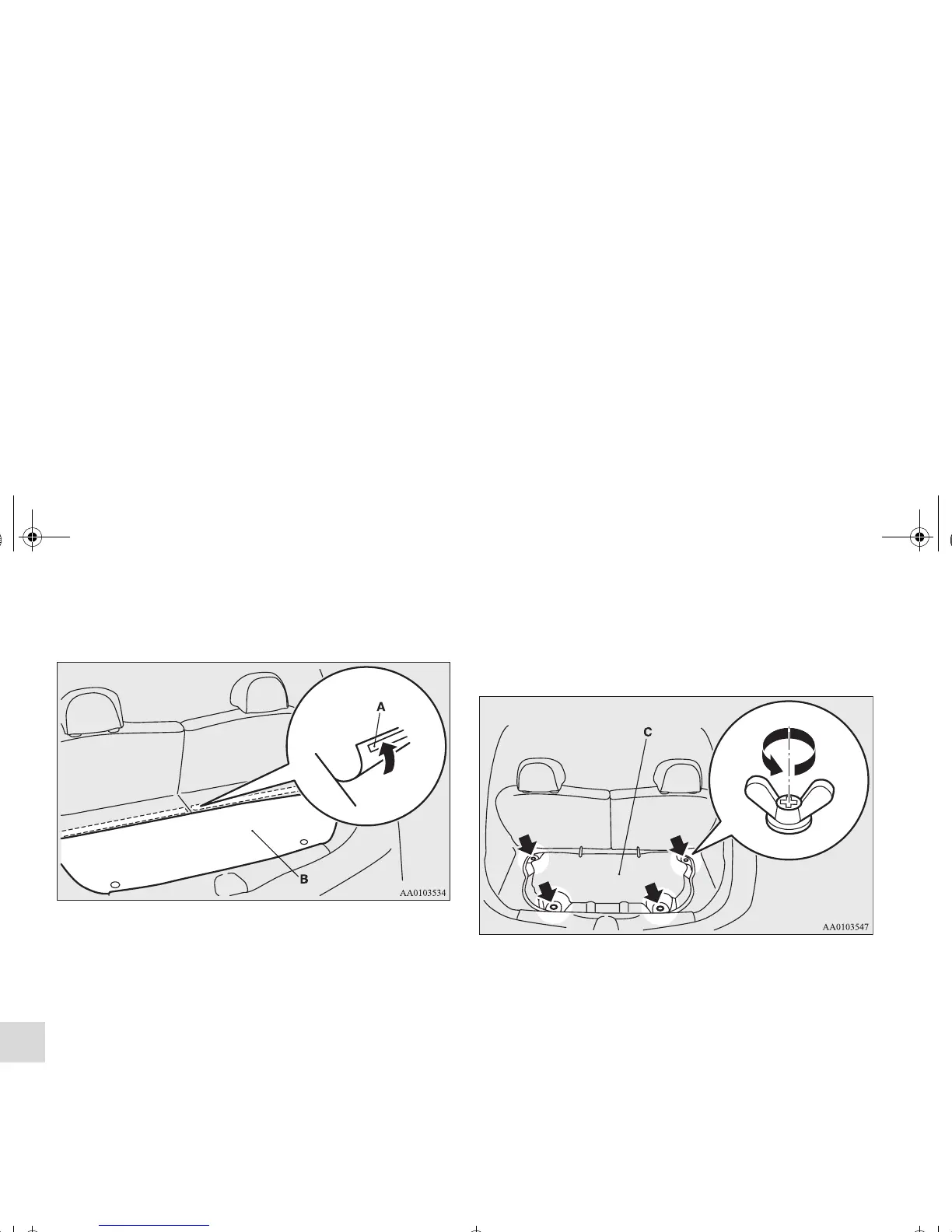

2. Peel off the Velcro fastener (A) to remove the luggage
room floor carpet (B).
OTE
● A heat insulating material is attached to the luggage room
floor carpet. To remove the luggage floor carpet, grasp
and lift up both the carpet fabric and the heat insulating
material.
3. Turn the 4 screws on the front and rear of the electric
motor unit room lid (C) counterclockwise to loosen and
remove them, and then remove the electric motor unit
room lid (C).
OTE
● When laying the electric motor unit room lid on the
ground, leave the underside of the lid with the rubber sur-
face facing up. If the underside is facing downward debris
and other foreign material could get on the rubber surface
and prevent proper reinstallation of the electric motor unit
room lid.
