7-42
Vehicle care and maintenance
7
Rear combination lights
N00943700487
1. Open the liftgate.
(Refer to “Liftgate” on page 3-16.)

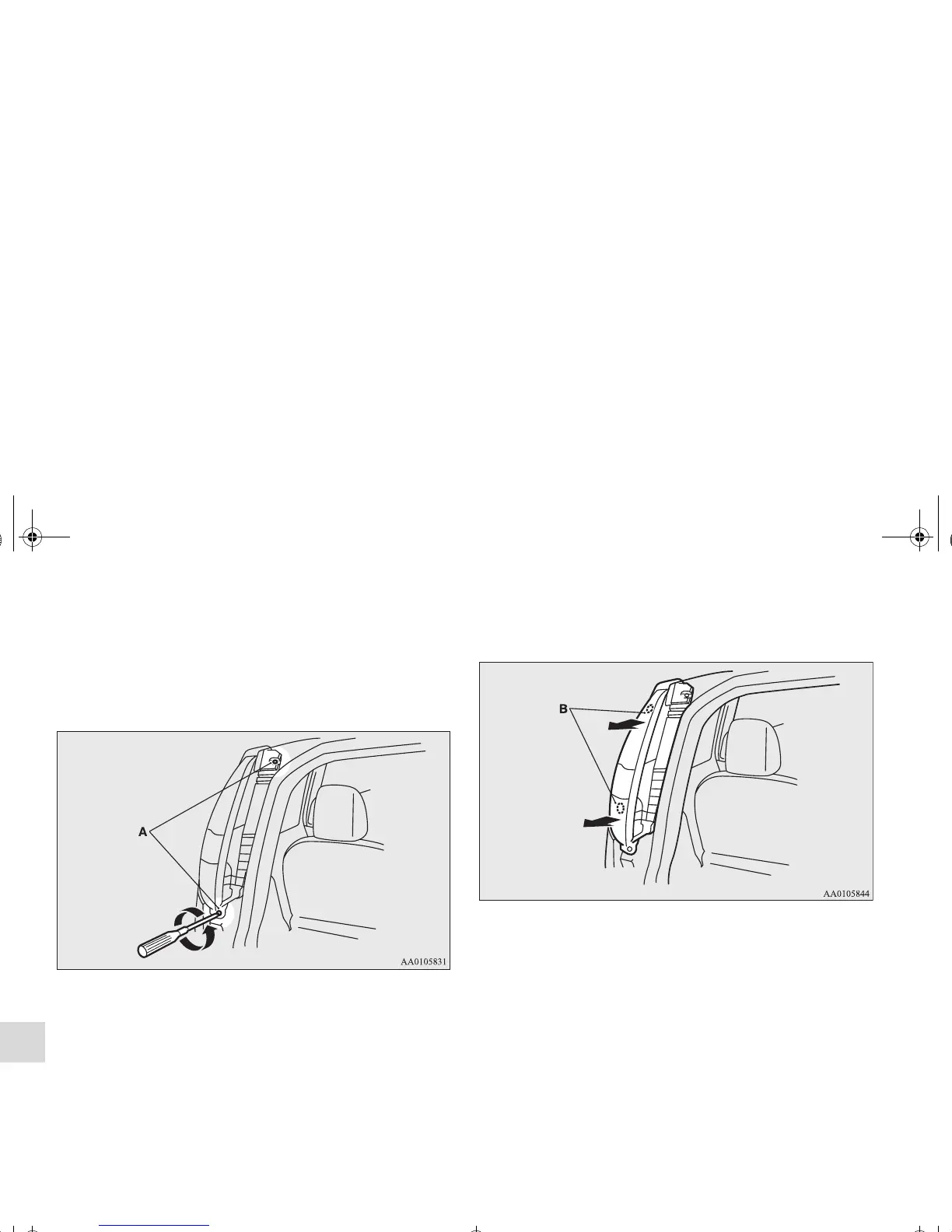

2. Remove the screws (A) that hold the light unit and remove
the light unit.
3. Move the light unit toward the rear of the vehicle and
remove the pins (B) of the light unit from the vehicle.
BK0140800US.book 42 ページ ２０１１年９月２９日 木曜日 午後３時２８分
