Vehicle care and maintenance
7-33
7
Identification of fuse
N00901100078
Fuse replacement
N00954900115
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the electric motor switch to
the “LOCK” position.

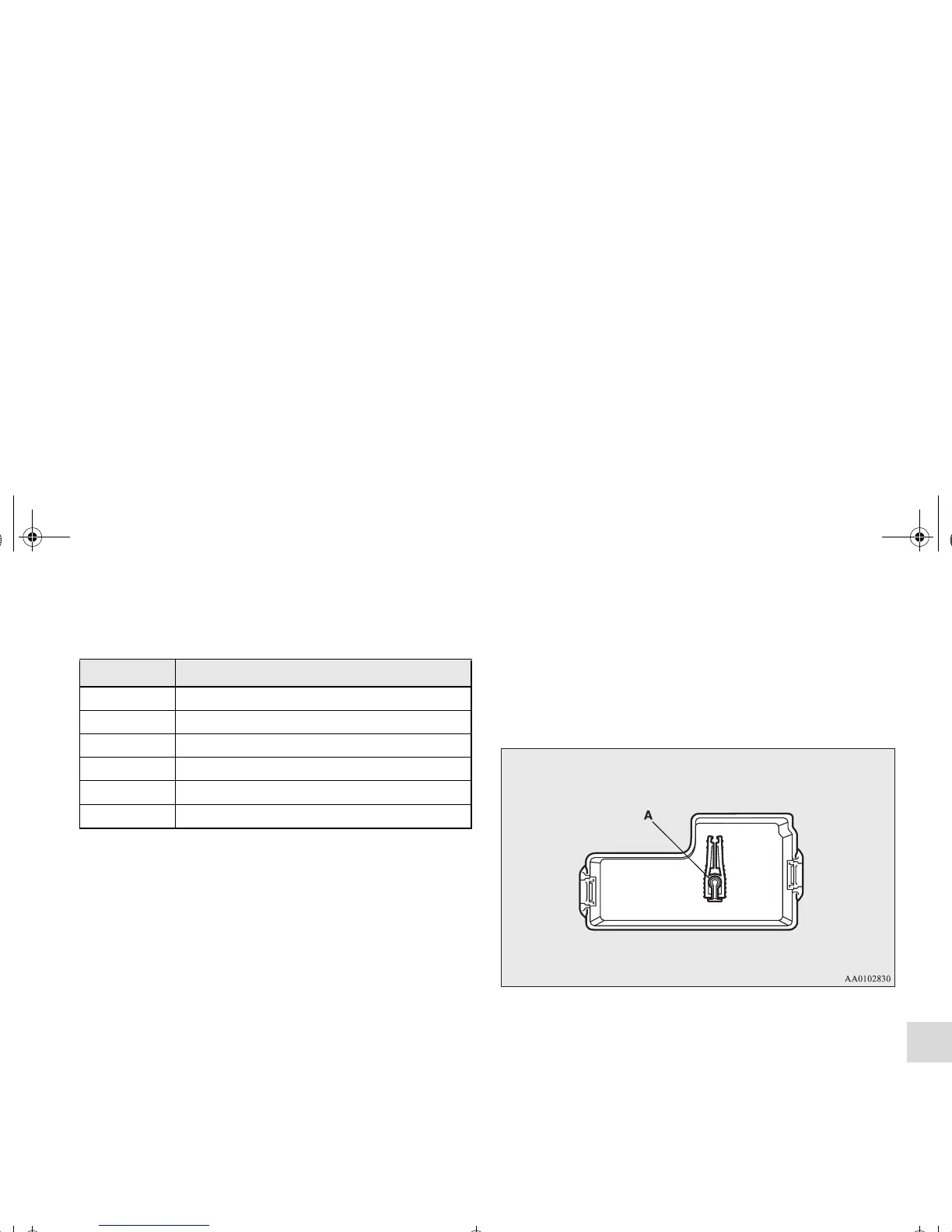

2. Remove the fuse puller (A) from the inside of the fuse
cover in the passenger compartment.
Capacity Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
30 A Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)
