1-36
General information/Charging
1

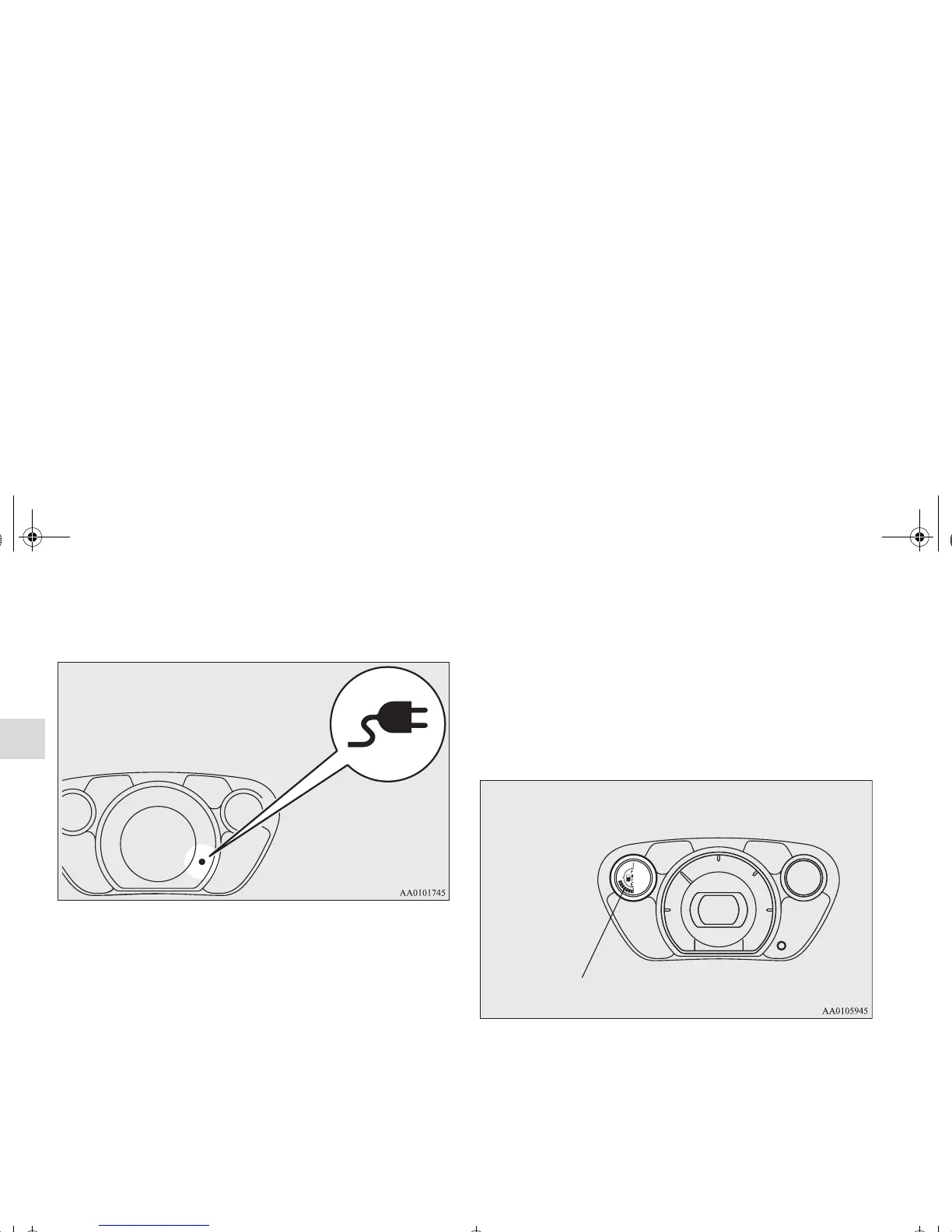

7. Make sure that the charging indicator on the instrument
cluster is illuminated.
If the charging indicator is not illuminated, charging has
not started.
Refer to the quick charger user manual.
OTE
● When the quick charging plug is connected to the charg-
ing connection, the charging indicator will blink. Once
charging has started, the charging indicator will illumi-
nate.
● The charge level for the main drive lithium-ion battery
can be checked with the energy level gauge (F) on the
instrument cluster. Refer to “Energy level gauge” on page
3-69.
● Operation noise may be heard from the vehicle body dur-
ing quick charging.
This noise comes from operation of the main drive lith-
ium-ion battery cooling system, and it is not a malfunc-
tion.
F
