Mitsubishi LDT323V User Manual

Eng lis h-9
1 AC IN (3-pin, with earth terminal)
Connects with the supplied power cord.
2 EXTERNAL SPEAKER TERMINAL
Connects with the special stereo speakers (option).
3
AUDIO IN
Connects with the audio output connector of external
equipment such as a computer, VCR, and DVD player.
(a) AUDIO1: 3.5 stereo mini-jack connector
(b) AUDIO2: RCA connector
(c) AUDIO3: RCA connector
4
AUDIO OUT (RCA)
Outputs the signal that is supplied to the selected AUDIO IN
connector. Connects with an external audio ampli er, etc.
5 VIDEO INPUT/OUTPUT (BNC/S c onnec tor)
Connects with video equipment.
S VIDEO IN: S-video input connector (MINI DIN 4-pin)
VIDEO IN: BNC c onnec to r
VIDEO OUT: BNC connector

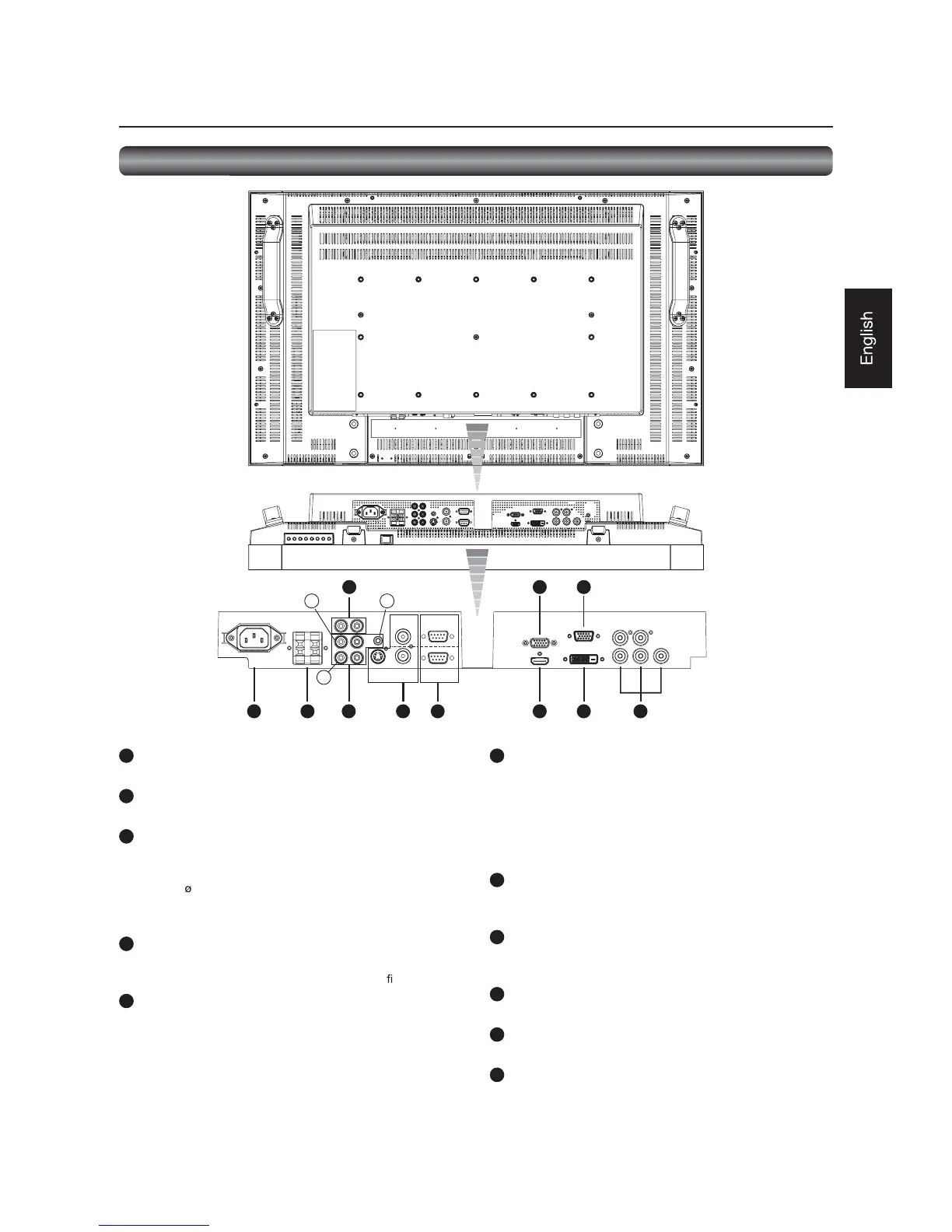

Connectors and Terminals
LR
a
c
b
IN
IN
OUT OUT
RBG
Cr/Pr Cb/Pb Y
HV
1 2 3
4
5 6 7
8
9
10
11
6 RS-232C connector (D-SUB 9-pin)
IN connector:
Connects with the RS-232C OUT connector of a computer or
other connected LDT323V.
OUT connector:
Connects with the RS-232C IN connector of other connected
LDT323V.
7 RGB1 IN (HDMI)
Connects with the digital video output of a computer, DVD
player, etc.
8 RGB OUT (MINI D- SUB 15- pin)
Outputs the signal that is supplied to the RGB3 or RGB4 IN
connector.
9 RGB2 IN (DVI-D)
Connects with the digital video output of a computer, etc.
10
RGB3 IN (MINI D-SUB 15-pin)
Connects with the analog video output of a computer, etc.
11
RGB4 IN, DVD/HD IN (BNC)
Connects with the analog video output of a computer or the
component video output of a DVD player, etc.
Parts Name and Functions (continued)
