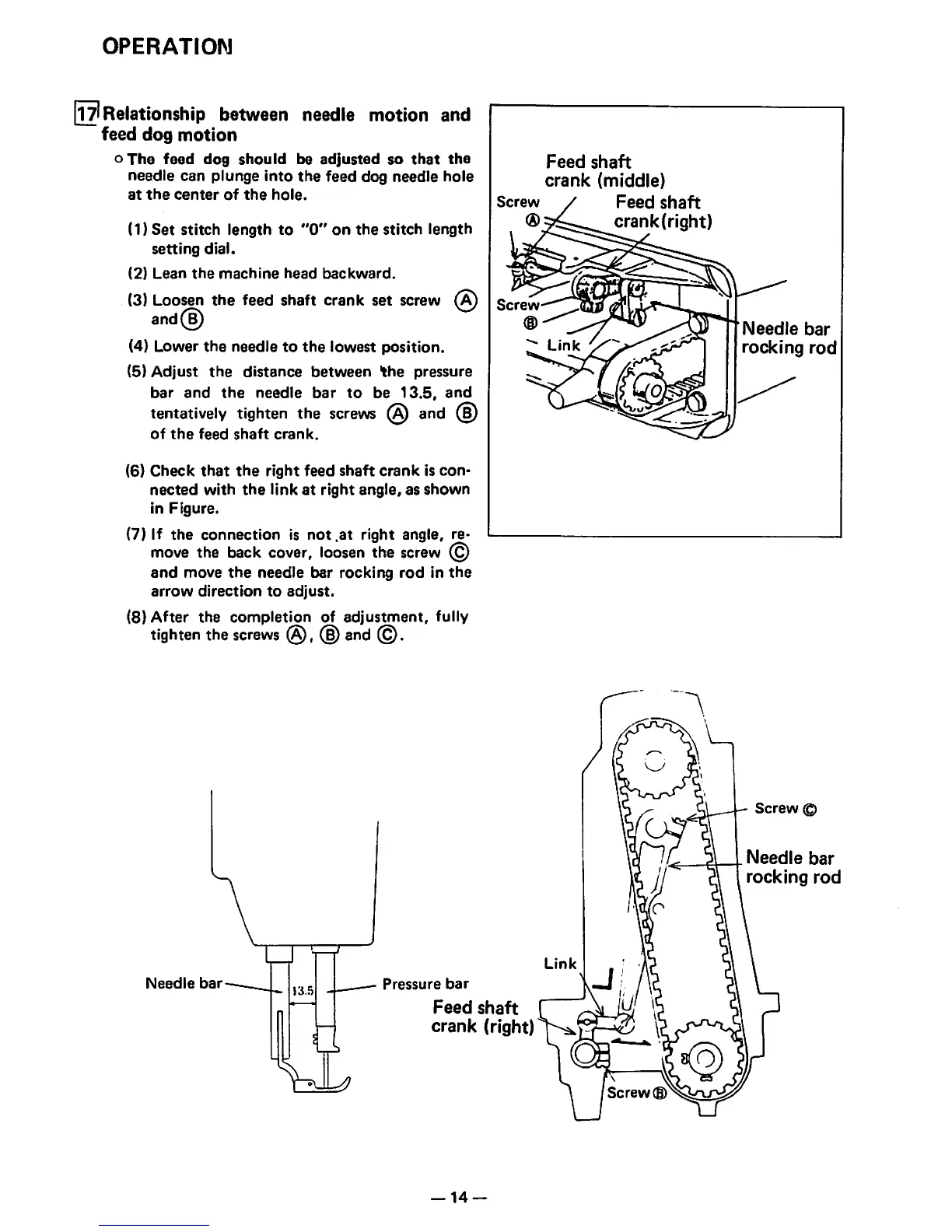

OPERATION
Feed
shaft
crank
(middle)
[T^
Relationship
between
needle
motion
and
feed
dog
motion
oThe
feed
dog
should
bo
adjusted
so
that
the
needle
can plunge
into
the
feed dog needle hole
at
the
center
of
the
hole.
(1)Set
stitch
length
to
"0"on
the
stitch
length
setting
dial.
(2)
Lean
the
machine
head
backward.
(3)
Loosen
the
feed
shaft
crank
set
screw
and(^
(4) Lower
the
needle
to
the
lowest position.
(5)
Adjust
the
distance
between
"the
pressure
bar
and
the
needle
bar
to
be
13.5,
and
tentatively
tighten
the
screws
(§)
and
(b)
of
the
feed
shaft
crank.
(6)
Check
that
the
right
feed
shaft
crank
is
con
nected
with
the
link
at
right
angle,
as
shown
in
Figure.
(7) If
the
connection
is
not
.at right angle, re
move
the
back
cover,
loosen
the
screw
©
and
move
the
needle
bar
rocking
rod
in
the
arrow
direction
to
adjust.
(8)
After
the
completion
of
adjustment,
fully
tighten
the
screws
(§), (§)
and
©.
Screw
Feed
shaft
crank(right)
Needle
bar-
n..'5
Screw
Pressure
bar
Feed
shaft
crank
(right)
14
Screw®
'Needle
bar
rocking
rod
Screw
©
Needle
bar
rocking
rod
