OPERATION

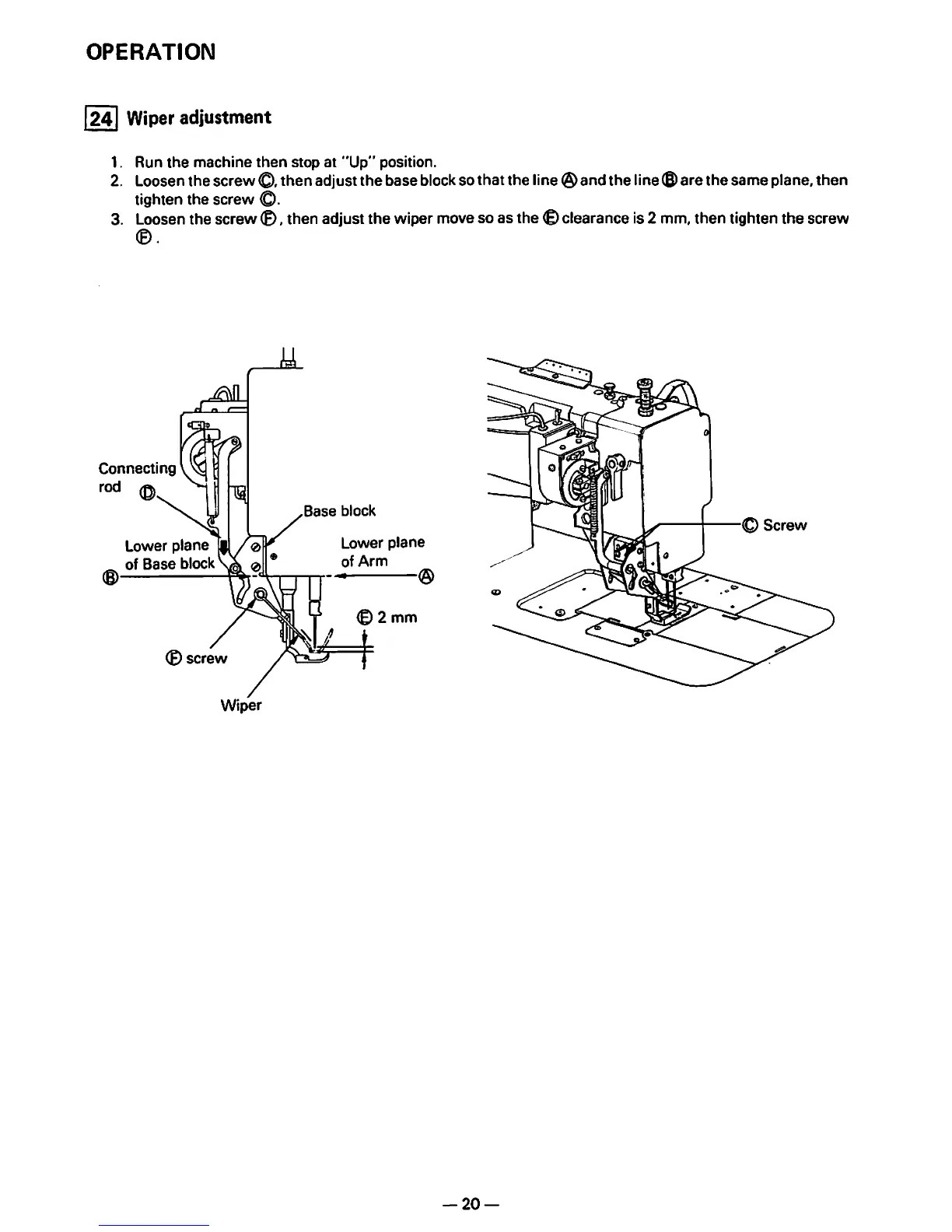

24 Wiper adjustment
1. Run the machine then stop at "Up" position.
2. Loosenthe screw ©, then adjust the base blockso that the line® and the line (6) are the same plane,then
tighten the screw ©.
3. Loosenthe screw ©, then adjust the wiper moveso as the © clearance is2 mm,then tighten the screw
©.
Connecting
rod
Lower
of Base
© screw
Base block
Lower plane
of Arm
© 2 mm
Screw
-20 —
